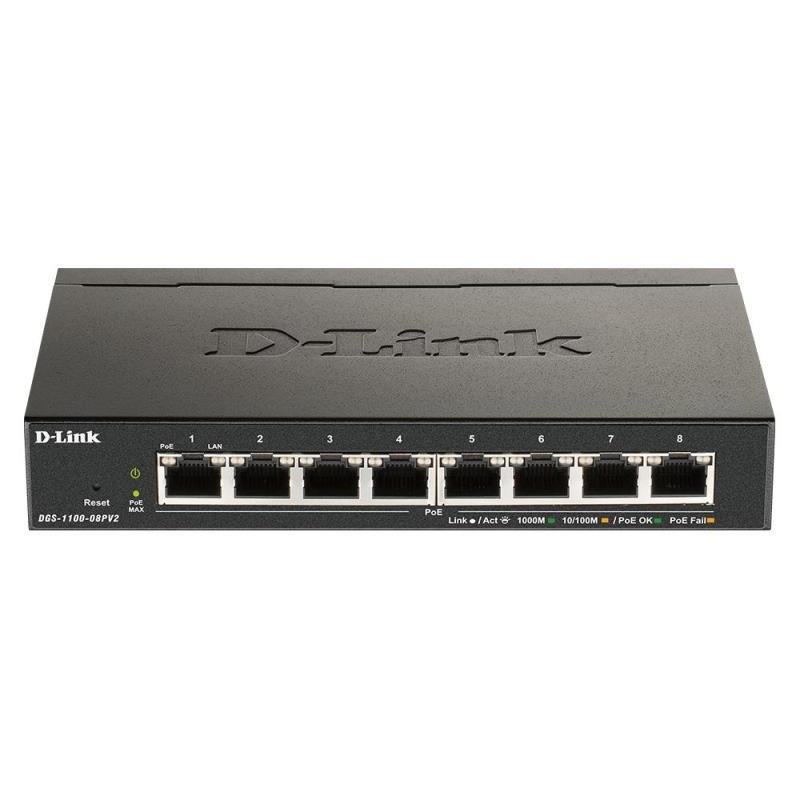

NET SWITCH 8PORT 10/100/1000/POE DGS-1100-08PV2/E D-LINK

Technical Specifications

• Summary: D-Link DGS-1100-08PV2. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 4096 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE.... Power over Ethernet (PoE)
• Vendor Homepage: https://us.dlink.com/en/products/dgs-1100-08pv2-8-port-gigabit-poe-smart-managed-switch
• Name: NET SWITCH 8PORT 10/100/1000/POE DGS-1100-08PV2/E D-LINK
• Category Code: SWI
• Model name: DGS-1100-08PV2/E
• Switch type: Managed
• Switch layer: L2/L3
• Quality of Service (QoS) support: Yes
• Web-based management: Yes
• Basic switching RJ-45 Ethernet ports quantity: 8
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• Gigabit Ethernet (copper) ports quantity: 8
• Networking standards: IEEE 802.1p/IEEE 802.1Q/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3u
• Copper ethernet cabling technology: 1000BASE-T/100BASE-TX/10BASE-T
• Port mirroring: Yes
• Full duplex: Yes
• Half duplex: Yes
• Auto MDI/MDI-X: Yes
• Broadcast storm control: Yes
• Ethernet LAN data rates: 10,100,1000
• Flow control support: Yes
• Link aggregation: Yes
• VLAN support: Yes
• Virtual LAN features: Port-based VLAN/Tagged VLAN/Voice VLAN
• Number of VLANs: 4094
• Switching capacity: 16
• Forwarding rate: 11.9
• MAC address table: 4096
• Number of queues: 4
• Jumbo frames support: Yes
• Jumbo frames: 9216
• IGMP snooping: Yes
• Loop protection: Yes
• Queue scheduling algorithms: SP/Weighted Round Robin (WRR)
• Multicast support: Yes
• Product colour: Black
• LED indicators: Yes
• Flash memory: 2
• Fanless: Yes
• Mean time between failures (MTBF): 786841
• Power supply included: Yes
• AC input voltage: 100 - 240
• Power consumption (max): 77.9
• Power over Ethernet (PoE): Yes
• Power over Ethernet plus (PoE+) ports quantity: 8
• Power over Ethernet (PoE) power per port: 30
• Total Power over Ethernet (PoE) budget: 64
• Operating temperature (T-T): 0 - 40
• Storage temperature (T-T): -40 - 70
• Operating relative humidity (H-H): 0 - 90
• Storage relative humidity (H-H): 0 - 95
• Heat dissipation: 265.85
• Width: 171
• Depth: 97.8
• Height: 28.6
• Weight: 430
• Sustainability compliance: Yes
• Compliance certificates: CE/RoHS
• Certification: FCC Class B, CE Class B, VCCI Class B, BSMI cUL, CE LVD, CB, BSMI
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.000616
• Unit Calculated Weight: 1
