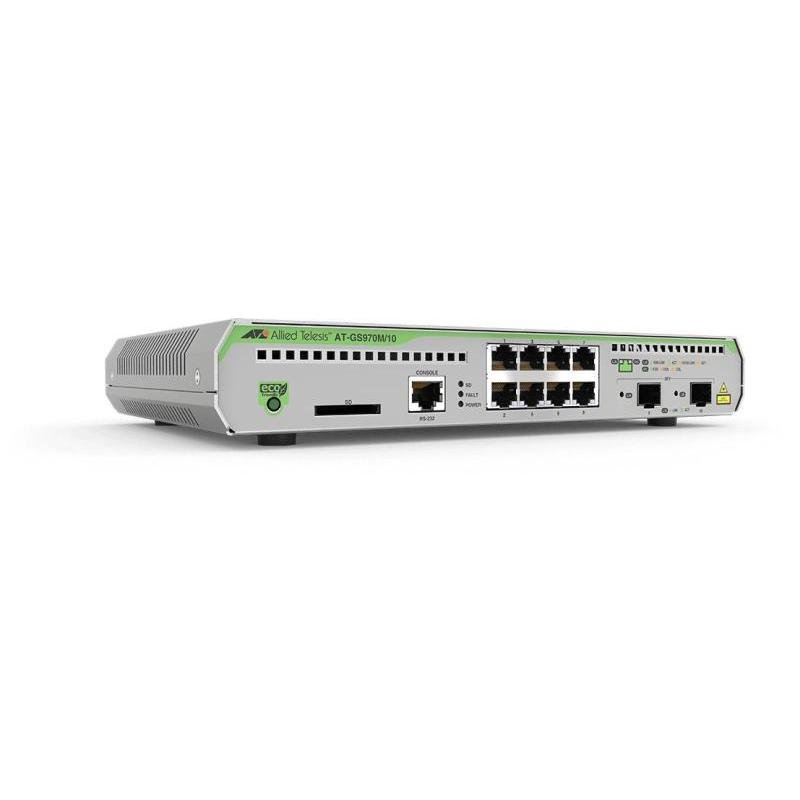

NET SWITCH 8PORT 10/100/1000T/+2SFP AT-GS970M/10PS-50 ALLIED

NET SWITCH 8PORT 10/100/1000T/+2SFP AT-GS970M/10PS-50 ALLIED
NET SWITCH 8PORT 10/100/1000T/+2SFP AT-GS970M/10PS-50 ALLIED
  • Switch type: Managed
  • Switch layer: L3
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • SFP module slots quantity: 2
  • Switching capacity: 20
Врз основа на 0 коментари. - Напиши коментар
50,071ден.
  • Достапност:
  • Бренд: ALLIED
  • Шифра: 272097
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Allied Telesis AT-GS970M/10PS-50. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Console port: RJ-45. MAC address table: 16000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE.... Power connector: DC-in jack. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
  • Vendor Homepage: https://www.alliedtelesis.com/products/switches/gs970m-series
  • Name: NET SWITCH 8PORT 10/100/1000T/+2SFP AT-GS970M/10PS-50 ALLIED
  • Category Code: SWI
  • Model name: GS970M/10PS
  • Switch type: Managed
  • Switch layer: L3
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • SFP module slots quantity: 2
  • Console port: RJ-45
  • Power connector: DC-in jack
  • Networking standards: IEEE 802.1AX/IEEE 802.2/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
  • Copper ethernet cabling technology: 1000BASE-TX/100BASE-TX/10BASE-T
  • Link aggregation: Yes
  • VLAN support: Yes
  • Virtual LAN features: Port-based VLAN/Private VLAN
  • Number of VLANs: 2048
  • Switching capacity: 20
  • Throughput: 14.9
  • MAC address table: 16000
  • Latency (10-100 Mbps): 7.8
  • Latency (1 Gbps): 3.4
  • Jumbo frames support: Yes
  • Jumbo frames: 10000
  • Packet buffer memory: 1.5
  • Multicast support: Yes
  • Rack mounting: Yes
  • Form factor: 1U
  • Product colour: Black/Grey
  • LED indicators: Yes
  • Safety: FCC, EN55022, EN61000-3-2, EN61000-3-3, VCCI, CISPR, EN55024, EN60950-1, UL 60950-1, EN60825-1
  • Memory type: DDR-SDRAM
  • Internal memory: 256
  • Flash memory: 64
  • Noise level: 33
  • Power consumption (max): 16
  • Power over Ethernet (PoE): Yes
  • Power over Ethernet plus (PoE+) ports quantity: 8
  • Operating temperature (T-T): 0 - 50
  • Storage temperature (T-T): -20 - 70
  • Operating relative humidity (H-H): 5 - 90
  • Storage relative humidity (H-H): 5 - 95
  • Operating altitude: 0 - 3000
  • Non-operating altitude: 0 - 4000
  • Heat dissipation: 55
  • Width: 210
  • Depth: 275
  • Height: 42.5
  • Weight: 2100
  • Package width: 430
  • Package depth: 360
  • Package height: 150
  • Package weight: 3450
  • Harmonized System (HS) code: 85176990
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.01118
  • Unit Calculated Weight: 3
Specifications
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Console portRJ-45
Copper ethernet cabling technology1000BASE-TX/100BASE-TX/10BASE-T
Depth275
Flash memory64
Form factor1U
Harmonized System (HS) code85176990
Heat dissipation55
Height42.5
Internal memory256
Jumbo frames10000
Jumbo frames supportYes
Latency (1 Gbps)3.4
Latency (10-100 Mbps)7.8
LED indicatorsYes
Link aggregationYes
MAC address table16000
Memory typeDDR-SDRAM
Multicast supportYes
Networking standardsIEEE 802.1AX/IEEE 802.2/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
Noise level33
Non-operating altitude0 - 4000
Number of VLANs2048
Operating altitude0 - 3000
Operating relative humidity (H-H)5 - 90
Operating temperature (T-T)0 - 50
Package depth360
Package height150
Package weight3450
Package width430
Packet buffer memory1.5
Power connectorDC-in jack
Power consumption (max)16
Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity8
Product colourBlack/Grey
Quality of Service (QoS) supportYes
Rack mountingYes
SafetyFCC, EN55022, EN61000-3-2, EN61000-3-3, VCCI, CISPR, EN55024, EN60950-1, UL 60950-1, EN60825-1
SFP module slots quantity2
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-20 - 70
SummaryAllied Telesis AT-GS970M/10PS-50. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Console port: RJ-45. MAC address table: 16000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE.... Power connector: DC-in jack. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Switch layerL3
Throughput14.9
Virtual LAN featuresPort-based VLAN/Private VLAN
VLAN supportYes
Web-based managementYes
Weight2100
Width210
Specs
Category CodeSWI
Description

Managed Gigabit Edge Switches
The CentreCOM® GS970M Series of Layer 3 switches provide high performance with gigabit to the desktop, the ability to connect and power endpoints, and lower management costs—a high value network edge solution from Allied Telesis.

Overview
- Reduce costs and automate network and device management with the Allied Telesis Autonomous Management Framework™ (AMF)
- Flexible deployment with 10, 18 and 28 port models
- High-speed gigabit network access for power users
- Support converged networks with PoE+ to power devices like wireless access points, digital surveillance cameras and IP phones
- Easy management with an industry-standard Command Line Interface (CLI) and intuitive Graphical User Interface (GUI)

Key Features
- AlliedWare Plus Enterprise-class operating system
- Eco-friendly for reduced running costs
- Network Access Control (NAC) for edge security
- Ethernet Protection Switched Ring (EPSR) enables resilient high-speed ring-based networks
- Static Routing and RIP support Layer 3 environments

Model nameGS970M/10PS
NameNET SWITCH 8PORT 10/100/1000T/+2SFP AT-GS970M/10PS-50 ALLIED
PictureUrlhttps://static.elko.cloud/ProductImages/1c146fa4-6038-4dcb-9c54-ec899e9f812c.Jpeg
Switch typeManaged
Switching capacity20
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/1c146fa4-6038-4dcb-9c54-ec899e9f812c.Jpeg
Unit Calculated Volume0.01118
Unit Calculated Weight3
Units per Shipping Box1
Vendor Homepagehttps://www.alliedtelesis.com/products/switches/gs970m-series
