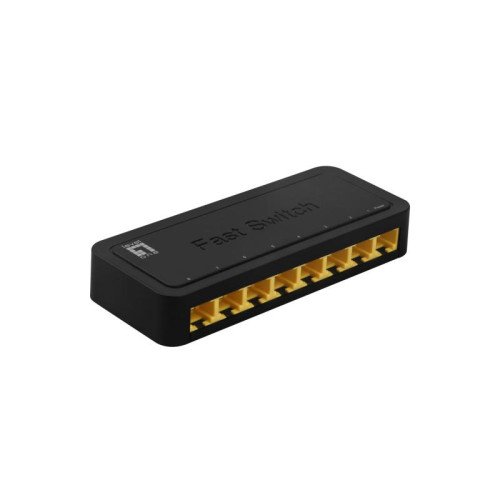

NET SWITCH 8PORT 10/100M/FEU-0812 LEVELONE

Technical Specifications

• Summary: LevelOne FEU-0812. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 1000 entries. Networking standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z. DC input voltage: 5 V. Power connector: DC-in jack
• Vendor Homepage: https://www.level1.com/
• Name: NET SWITCH 8PORT 10/100M/FEU-0812 LEVELONE
• Category Code: SWI
• Model name: FEU-0812
• Switch type: Unmanaged
• Basic switching RJ-45 Ethernet ports quantity: 8
• Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
• Power connector: DC-in jack
• Networking standards: IEEE 802.3/IEEE 802.3az/IEEE 802.3u/IEEE 802.3z
• Copper ethernet cabling technology: 100BASE-T/10BASE-T
• Full duplex: Yes
• Half duplex: Yes
• Auto MDI/MDI-X: Yes
• Auto-negotiation: Yes
• MAC address table: 1000
• Packet buffer memory: 1.19
• Product colour: Black
• LED indicators: Activity/Link/Power
• Plug and Play: Yes
• Fanless: Yes
• Power source: DC
• Power supply included: Yes
• DC input voltage: 5
• Input current: 0.55
• Power consumption (typical): 1.7
• Operating temperature (T-T): 0 - 45
• Storage temperature (T-T): -40 - 70
• Operating relative humidity (H-H): 10 - 90
• Storage relative humidity (H-H): 5 - 90
• Width: 130.7
• Depth: 52.3
• Height: 20
• Weight: 110
• AC adapter included: Yes
• Package type: Box
• Package width: 145
• Package depth: 80
• Package height: 80
• Package weight: 214
• Certification: CE RoHS
• Country of origin: China
• Harmonized System (HS) code: 85176990
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.00096
• Unit Calculated Weight: 1
