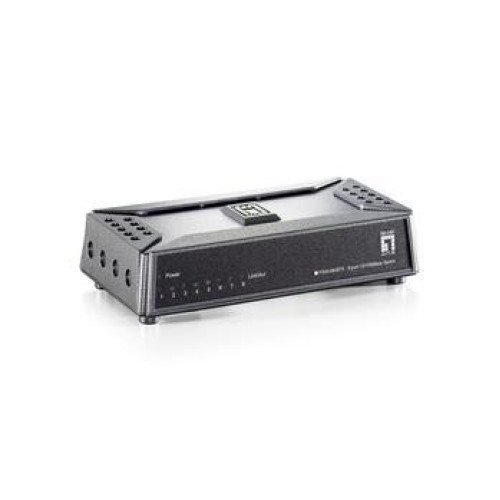

NET SWITCH 8PORT 10/100M/FSW-0808TX LEVELONE

NET SWITCH 8PORT 10/100M/FSW-0808TX LEVELONE
достава за 24h
NET SWITCH 8PORT 10/100M/FSW-0808TX LEVELONE
  • Switch type: Unmanaged
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • Switching capacity: 1.6
Врз основа на 0 коментари. - Напиши коментар
1,966ден.
  • Достапност: Има залиха
  • Бренд: LEVELONE
  • Шифра: 430881
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: LevelOne 8-Port Fast Ethernet Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 1024 entries, Switching capacity: 1.6 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack
  • Vendor Homepage: https://uk.level1.com/Switch/FSW-0808TX/p-3223.htm#
  • Name: NET SWITCH 8PORT 10/100M/FSW-0808TX LEVELONE
  • Category Code: SWI
  • Model name: FSW-0808TX
  • Switch type: Unmanaged
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
  • Power connector: DC-in jack
  • Networking standards: IEEE 802.3/IEEE 802.3u/IEEE 802.3x
  • Copper ethernet cabling technology: 100BASE-TX/10BASE-T
  • Full duplex: Yes
  • Auto MDI/MDI-X: Yes
  • Auto-negotiation: Yes
  • Flow control support: Yes
  • Switching capacity: 1.6
  • MAC address table: 1024
  • Store-and-forward: Yes
  • Packet forwarding rate (10 Mbps): 14880
  • Packet forwarding rate (100 Mbps): 148000
  • Product colour: Grey
  • LED indicators: Activity/Link/Power
  • Buffer size: 96
  • AC input voltage: 100 - 240
  • AC input frequency: 50 - 60
  • Output voltage: 5
  • Output current: 1
  • Power consumption (typical): 2.8
  • Operating temperature (T-T): 0 - 40
  • Storage temperature (T-T): -40 - 70
  • Operating relative humidity (H-H): 5 - 90
  • Storage relative humidity (H-H): 10 - 90
  • Width: 125
  • Depth: 69
  • Height: 30
  • Quick start guide: Yes
  • AC adapter included: Yes
  • Package width: 75
  • Package depth: 130
  • Package height: 90
  • Package weight: 300
  • Certification: FCC, CE, RoHS
  • Country of origin: China
  • Harmonized System (HS) code: 85176990
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.000624
  • Unit Calculated Weight: 1
Specifications
AC adapter includedYes
AC input frequency50 - 60
AC input voltage100 - 240
Auto MDI/MDI-XYes
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Buffer size96
CertificationFCC, CE, RoHS
Copper ethernet cabling technology100BASE-TX/10BASE-T
Country of originChina
Depth69
Flow control supportYes
Full duplexYes
Harmonized System (HS) code85176990
Height30
LED indicatorsActivity/Link/Power
MAC address table1024
Networking standardsIEEE 802.3/IEEE 802.3u/IEEE 802.3x
Operating relative humidity (H-H)5 - 90
Operating temperature (T-T)0 - 40
Output current1
Output voltage5
Package depth130
Package height90
Package weight300
Package width75
Packet forwarding rate (10 Mbps)14880
Packet forwarding rate (100 Mbps)148000
Power connectorDC-in jack
Power consumption (typical)2.8
Product colourGrey
Quick start guideYes
Storage relative humidity (H-H)10 - 90
Storage temperature (T-T)-40 - 70
Store-and-forwardYes
SummaryLevelOne 8-Port Fast Ethernet Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 1024 entries, Switching capacity: 1.6 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack
Width125
Specs
Auto-negotiationYes
Category CodeSWI
Description

The LevelOne FSW-0808 is a wire-speed, non-blocking networking device that provides 8 ports 10/100Mbps Ethernet connections. All ports support auto-negotiation and auto-MDI/MDIX sensing, eliminating the need for crossover cables or Uplink Ports. Each port can be used as general network port or as connecting port into a router, server, hub or another network switch.

Easy Configuration and Maintenance
The LevelOne FSW-0808TX does not require software configuration. Users can immediately use any features of this product simply by attaching the cables and turning on the power. For instant error detection, the switch is equipped with a full range of LEDs to help you monitor and troubleshoot problems on your network.

Compact Size Design
This switch is compact specially designed to fit on the desktop or in other space-limited locations. The FSW-0808TX provides an ideal solution for businesses that crave a reliable network to exchange large data files and multimedia information with bandwidth-starving workgroup, departments, and offices.

- Provides flexibility of 8 x 10/100BASE-TX ports
- 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
- Supports 1K MAC address auto-learning and auto-aging
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- Magnetic base for easy placement
- Quick and easy installation

Model nameFSW-0808TX
NameNET SWITCH 8PORT 10/100M/FSW-0808TX LEVELONE
PictureUrlhttps://static.elko.cloud/ProductImages/84313a6b-91fd-419d-bf16-38c085a9e52f.Jpeg
Switch typeUnmanaged
Switching capacity1.6
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/84313a6b-91fd-419d-bf16-38c085a9e52f.Jpeg
Unit Calculated Volume0.000624
Unit Calculated Weight1
Units per Shipping Box1
Vendor Homepagehttps://uk.level1.com/Switch/FSW-0808TX/p-3223.htm#
