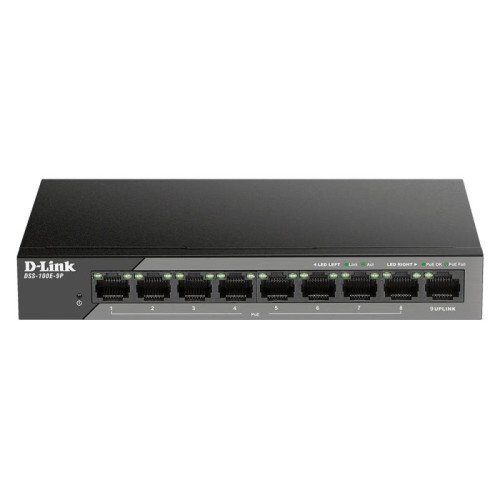

NET SWITCH 9PORT 10/100/1000/DSS-100E-9P D-LINK

Technical Specifications

• Summary: D-Link DSS-100E-9P. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 2000 entries, Switching capacity: 1.8 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE)
• Vendor Homepage: https://www.dlink.com/en/products/dss-100e-9p-9-port-10100-poe-unmanaged-surveillance-switch
• Name: NET SWITCH 9PORT 10/100/1000/DSS-100E-9P D-LINK
• Category Code: SWI
• Model name: DSS-100E-9P/A1A
• Switch type: Unmanaged
• Basic switching RJ-45 Ethernet ports quantity: 8
• Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
• Gigabit Ethernet (copper) ports quantity: 1
• Networking standards: IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3u/IEEE 802.3x
• Auto MDI/MDI-X: Yes
• Switching capacity: 1.8
• Forwarding rate: 2.67
• MAC address table: 2000
• Store-and-forward: Yes
• Packet forwarding rate (10 Mbps): 14880
• Packet forwarding rate (100 Mbps): 148800
• Packet buffer memory: 0.128
• Product colour: Black
• LED indicators: Activity/Link/PoE/Power/Speed
• Noise level: 0
• Mean time between failures (MTBF): 52308
• Power supply included: Yes
• Power consumption (max): 102
• Power over Ethernet (PoE): Yes
• Power over Ethernet plus (PoE+) ports quantity: 8
• Power over Ethernet (PoE) power per port: 30
• Total Power over Ethernet (PoE) budget: 92
• Operating temperature (T-T): 0 - 40
• Storage temperature (T-T): -10 - 70
• Operating relative humidity (H-H): 0 - 95
• Storage relative humidity (H-H): 0 - 95
• Heat dissipation: 486.7
• Width: 177
• Depth: 104
• Height: 26
• Weight: 410
• User guide: Yes
• Certification: CE, RoHS
• Harmonized System (HS) code: 85176990
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.0048
• Unit Calculated Weight: 1
