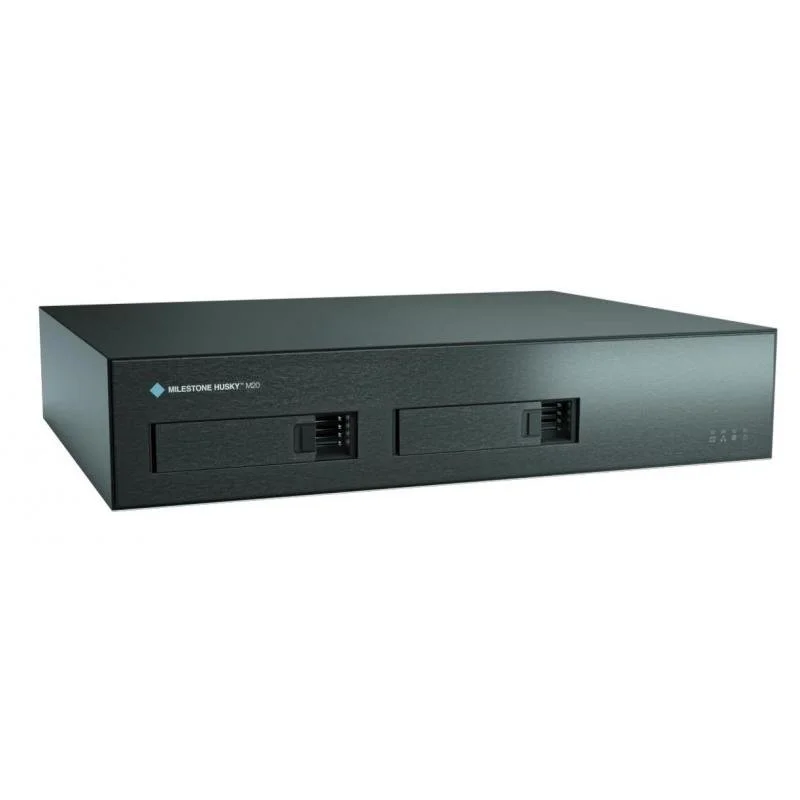

Husky M20

Technical Specifications

• Summary: Milestone Husky M20. Video input channels: 16 channels, Maximum resolution: 1920 x 1200 pixels, Video recording modes: 720p, 1080p. HDD capacity: 2 TB, HDD interface: Serial ATA, Total installed storage capacity: 4.12 TB. Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 100BASE-T, 1000BASE-T, 1000BASE-TX, Ethernet LAN data rates: 1000 Mbit/s, Networking standards: IEEE 802.3at. Rack capacity: 2U, Product colour: Black, Certification: CE (class A), WEEE, FCC (class A)*,RCM, UL, VCCI (classA)**, Mexico (CoC). Processor frequency: 3.7 GHz
• Vendor Homepage: https://www.milestonesys.com/solutions/hardware-and-add-ons/network-video-recorders/husky-m20/
• Name: NET VIDEO RECORDER 24CH/HM20-4T-16P MILESTONE
• Category Code: NVR
• Model name: Husky M20
• Video input channels: 16
• Alarm input channels: 1
• Alarm output channels: 1
• Video recording modes: 1080p/720p
• Maximum resolution: 1920 x 1200
• Internal memory: 8000
• Video formats supported: H.264/M-JPEG/MPEG4/MxPEG
• Operating system installed: Windows 10 IoT Enterprise
• Maximum frame rate: 60
• PTZ control: Yes
• Throughput data rate: 200
• Audio system: 2-way
• Number of HDDs installed: 2
• HDD capacity: 2000
• Number of HDDs supported: 2
• Total installed storage capacity: 4128
• HDD interface: Serial ATA
• Ethernet LAN (RJ-45) ports: 18
• Copper ethernet cabling technology: 1000BASE-T/1000BASE-TX/100BASE-T/100BASE-TX/10BASE-T
• Ethernet LAN data rates: 1000
• Power over Ethernet (PoE): Yes
• Power over Ethernet (PoE) ports quantity: 16
• HDMI output: Yes
• HDMI ports quantity: 1
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
• eSATA ports quantity: 1
• Audio output: 1
• eSATA: Yes
• Line-in: Yes
• Microphone in: Yes
• Networking standards: IEEE 802.3at
• Rack mounting: Yes
• Rack capacity: 2U
• LED indicators: Yes
• On/off switch: Yes
• Product colour: Black
• Certification: CE (class A), WEEE, FCC (class A)*,RCM, UL, VCCI (classA)**, Mexico (CoC)
• Built-in processor: Yes
• Processor cores: 2
• Processor frequency: 3.7
• AC input voltage: 100 - 240
• Power: 500
• Power over Ethernet (PoE) power per port: 250
• Operating temperature (T-T): 0 - 40
• Operating relative humidity (H-H): -20 - 70
• Storage temperature (T-T): 10 - 90
• Storage relative humidity (H-H): 10 - 90
• Width: 430
• Depth: 330
• Height: 88
• Package width: 607
• Package depth: 236
• Package height: 472
• Package weight: 13500
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.0252
• Unit Calculated Weight: 9.9
