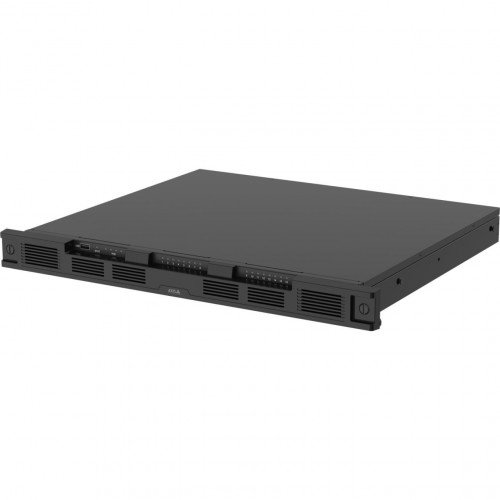

S3016

Technical Specifications

• Summary: Axis S3016. Video input channels: 16 channels, Audio formats supported: AAC, Video formats supported: AVC, H.264, H.265, HEVC, MPEG4. HDD capacity: 2 TB, Maximum storage capacity: 8 TB, Total installed storage capacity: 8 TB. Networking standards: IEEE 802.3at, Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, TLS , SFTP, SMTP, mDNS (Bonjour), UPnP ,.... Rack capacity: 1U, Brand compatibility: Axis, Product colour: Black. Power consumption (max): 31 W, Power consumption (typical): 37 W, AC input voltage: 100-240 V
• Vendor Homepage: https://www.axis.com/products/axis-s3016
• Name: NET VIDEO RECORDER S3016/8TB 02527-002 AXIS
• Category Code: NVR
• Model: S3016
• Model name: S3016
• Video input channels: 16
• Audio formats supported: AAC
• Video formats supported: AVC/H.264/H.265/HEVC/MPEG4
• Number of HDDs installed: 4
• HDD capacity: 2000
• Number of HDDs supported: 4
• Total installed storage capacity: 8000
• Maximum storage capacity: 8
• RAID support: Yes
• RAID levels: 0/1/10/5/6
• Ethernet LAN (RJ-45) ports: 18
• Power over Ethernet (PoE): Yes
• Power over Ethernet (PoE) ports quantity: 16
• USB 2.0 ports quantity: 1
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
• Fiber ports quantity: 1
• Networking standards: IEEE 802.3at
• Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, TLS , SFTP, SMTP, mDNS (Bonjour), UPnP , DNS/DNSv6, NTP, NTS, RTSP, TCP, UDP, IGMPv1/v2/v3, ICMP, DHCPv4/v6, ARP, SSH, LLDP, IEEE 802.1X (EAP-TLS), IEEE 802.1AR
• Rack mounting: Yes
• Rack capacity: 1U
• Brand compatibility: Axis
• LED indicators: Yes
• Product colour: Black
• Certification: UL/cUL, CE, VCCI, NOM, RCM, TAA, 55035, EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, RCM AS/NZS CISPR 32 Class A, ICES-3(A)/NMB-3(A), VCCI Class A, FCC Part 15 Subpart B Class A, CNS 15936, CAN/CSA C22.2 No. 62368-1, IEC/EN/U
• Built-in processor: Yes
• Power consumption (max): 31
• Power consumption (typical): 37
• AC input voltage: 100-240
• AC input frequency: 50/60
• Total Power over Ethernet (PoE) budget: 305
• Operating temperature (T-T): 0 - 45
• Operating relative humidity (H-H): 10 - 85
• Storage temperature (T-T): -20 - 65
• Storage relative humidity (H-H): 5 - 90
• Compliance certificates: REACH/RoHS
• Doesnt contain: PVC
• Width: 484
• Depth: 402
• Height: 44.1
• Weight: 10240
• Cables included: AC
• Quick installation guide: Yes
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.05287
• Unit Calculated Weight: 11.2
