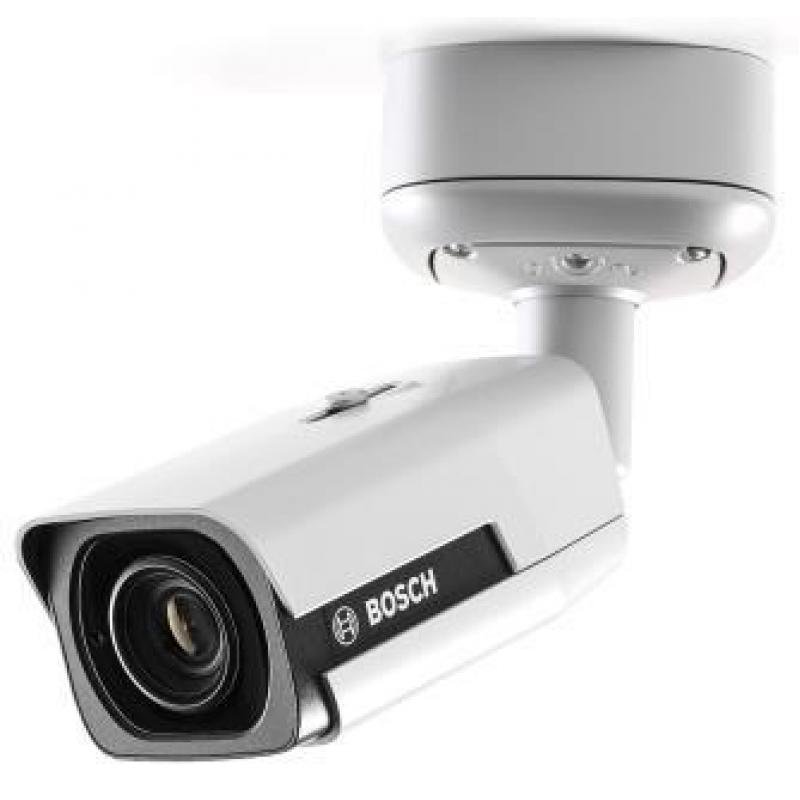

NET CAMERA 2MP IP BULLET/NBE-4502-AL BOSCH

Technical Specifications

• Summary: Bosch Serie 4 DINION IP 4000i IR. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Minimum illumination: 0.008 lx, White balance: Manual, Sodium lamp, Camera shutter type: Electronic. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"), Number of effective pixels (H x V): 1937 x 1097 pixels. Focal length range: 2.8 - 12 mm
• Vendor Homepage: https://www.boschsecurity.com/
• Name: NET CAMERA 2MP IP BULLET/NBE-4502-AL BOSCH
• Category Code: FNC
• Form factor: Bullet
• Mounting type: Ceiling/wall
• Product colour: White
• Protection features: Impact resistant
• International Protection (IP) code: IP67
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Outdoor
• PTZ control: Yes
• Auto-tracking: Yes
• Wide Dynamic Range (WDR): Yes
• Day/night mode: Yes
• Alarm input/output: Yes
• Certification: CE, FCC, UL, cUL, C-tick, CB, VCCI, EAC
• Minimum illumination: 0.008
• White balance: Manual/Sodium lamp
• Camera shutter type: Electronic
• Optical sensor size: 1/2.8
• Progressive scan: Yes
• Number of effective pixels (H x V): 1937 x 1097
• Sensor type: CMOS
• Zoom capability: Yes
• Focal length range: 2.8 - 12
• Auto focus: Yes
• Night vision: Yes
• Night vision distance: 60
• LED type: IR
• Number of illumination LEDs: 4
• Infra-red wavelength: 850
• Maximum resolution: 1920 x 1080
• Video compression formats: H.264/H.265/HEVC/M-JPEG
• Supported graphics resolutions: 1280 x 1024 (SXGA)/1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/256 x 144/512 x 288/704 x 480/768 x 432
• Frame rate: 30
• Analog signal format system: NTSC/PAL
• Noise reduction: Yes
• Image quality adjustment: Brightness/Contrast/Saturation
• Privacy masking: Yes
• Region of Interest (ROI) encoding: Yes
• Time stamp overlay: Yes
• Signal-to-Noise Ratio (SNR): 55
• Ethernet LAN: Yes
• Networking standards: IEEE 802.3at
• Supported network protocols: IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/ RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, ARP, DHCP, APIPA (Auto-IP, link local address), NTP (SNTP), SNMP (V1, V3, MIB-II), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, no-ip.com), SMTP, iSCSI, UPnP (SSDP),
• Card reader integrated: Yes
• Compatible memory cards: MicroSDHC/MicroSDXC
• Maximum memory card size: 2000
• Ethernet LAN (RJ-45) ports: 1
• BNC output ports: 1
• Alert notification type: Text alert message
• Digital watermark: Yes
• Security algorithms: MD5/SHA-1/SHA-256
• Web browser: Yes
• Firmware upgradeable: Yes
• Power source type: PoE
• Power consumption: 950
• Power over Ethernet (PoE): Yes
• Operating temperature (T-T): -40 - 60
• Storage temperature (T-T): -40 - 70
• Operating relative humidity (H-H): 5 - 100
• Storage relative humidity (H-H): 0 - 93
• Width: 271
• Depth: 90
• Height: 90
• Weight: 1300
• Number of cameras: 1
• Screws included: Yes
• Quick installation guide: Yes
• Lens type: Varifocal
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.01341
• Unit Calculated Weight: 3
