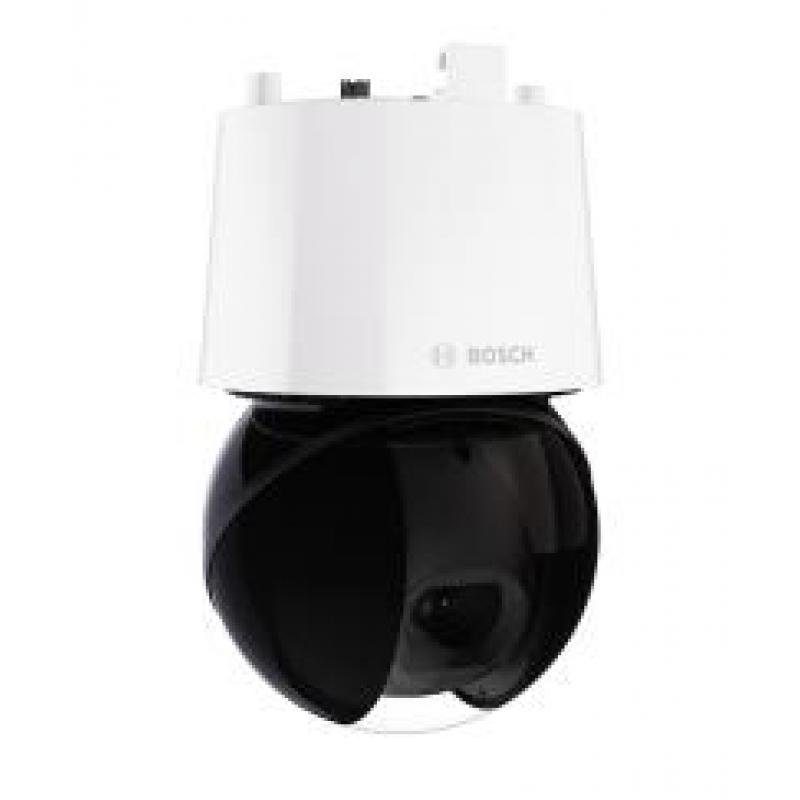

NET CAMERA 2MP IP PTZ DOME/NDP-7802-Z40L BOSCH

NET CAMERA 2MP IP PTZ DOME/NDP-7802-Z40L BOSCH
NET CAMERA 2MP IP PTZ DOME/NDP-7802-Z40L BOSCH
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 1920 x 1080
  • Total megapixels: 2
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
299,785ден.
  • Достапност:
  • Бренд: BOSCH
  • Шифра: 458254
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Bosch AUTODOME 7100i. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Black, Form factor: Dome. Minimum illumination: 0.001 lx, Lens viewing angle, horizontal: 66.35°, Tilt angle range: -90 - 20°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 40x, Digital zoom: 32x, Detect distance: 2316 m
  • Vendor Homepage: https://commerce.keenfinity.tech/us/en/PTZ-2MP-HDR-40x-IP66-pendant-IR/p/F.01U.419.732/
  • Name: NET CAMERA 2MP IP PTZ DOME/NDP-7802-Z40L BOSCH
  • Category Code: FNC
  • Form factor: Dome
  • Mounting type: Ceiling
  • Product colour: Black/White
  • Housing material: Aluminium/Polycarbonate (PC)
  • International Protection (IP) code: IP66
  • IK code: IK10
  • Country of origin: Portugal
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Indoor & outdoor
  • PTZ control: Yes
  • Auto-tracking: Yes
  • Tour recording: Yes
  • Preset points: Yes
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Alarm input/output: Yes
  • Colour temperature: 10000
  • Minimum illumination: 0.001
  • Lens viewing angle, horizontal: 66.35
  • Tilt angle range: -90 - 20
  • Tilt speed: 400
  • Pan range: 0 - 360
  • Pan speed: 400
  • Auto flip: Yes
  • White balance: ATW/Auto/Indoor/Outdoor
  • Camera shutter type: Electronic
  • Camera shutter speed: 1 - 1/30000
  • Number of Privacy masking areas: 32
  • Number of sensors: 1
  • Optical sensor size: 1/2.8
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Optical zoom: 40
  • Digital zoom: 32
  • Number of lenses: 1
  • Detect distance: 2316
  • Recognize distance: 463
  • Focal length range: 4.25 - 170
  • Identify distance: 232
  • Maximum aperture number: 4.95
  • Minimum aperture number: 1.6
  • Night vision: Yes
  • Night vision distance: 300
  • LED type: IR
  • Infra-red wavelength: 850
  • Maximum resolution: 1920 x 1080
  • Total megapixels: 2
  • Video formats supported: H.264/H.265/HEVC/M-JPEG
  • Supported graphics resolutions: 1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/512 x 288/704 x 480/704 x 576/720 x 480/720 x 576/768 x 432
  • Frame rate: 60
  • Video streaming: Yes
  • Gain control type: Auto
  • Back Light Compensation (BLC): Yes
  • Image quality adjustment: Saturation
  • Image stabilizer: Yes
  • Audio system full duplex: Yes
  • Audio formats supported: AAC/AAC-LC/G.711
  • Audio detection: Yes
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet/Gigabit Ethernet
  • Networking standards: IEEE 802.3bt
  • Supported network protocols: IPv4; IPv6; UDP; TCP; HTTP; HTTPS; RTP/ RTCP; IGMP V2/V3; ICMP; ICMPv6; RTSP; FTP; ARP; DHCP; SNMP (V3, MIBII); DNS; DNSv6; DDNS (DynDNS.org, selfHOST.de, no-ip.com); SMTP; iSCSI; UPnP (SSDP); DiffServ (QoS); SOAP; CHAP; Digest authentication; HSTS; RTSPS
  • Quality of Service (QoS) support: Yes
  • Card reader integrated: Yes
  • Compatible memory cards: SD
  • Maximum memory card size: 2000
  • Flash memory: 8192
  • Internal memory: 4096
  • Ethernet LAN (RJ-45) ports: 1
  • Active tampering alarm: Yes
  • Digital watermark: Yes
  • HTTPS encryption: Yes
  • Pixel counter: Yes
  • Security algorithms: 128-bit AES/256-bit AES/256-bit AES-CBC/4096-bit RSA/TLS
  • Video motion detection: Yes
  • Cloud-managed: Yes
  • Power source type: AC,DC,PoE
  • AC input voltage: 24
  • AC input frequency: 50/60
  • Power consumption (max): 66.6
  • Power consumption (Power over Ethernet (PoE)): 64.8
  • Operating temperature (T-T): -40 - 60
  • Storage temperature (T-T): -40 - 70
  • Operating relative humidity (H-H): 0 - 100
  • Storage relative humidity (H-H): 0 - 95
  • Width: 210.6
  • Depth: 210.6
  • Height: 324
  • Weight: 5620
  • Compliance certificates: CE/Federal Communications Commission (FCC)/National Defense Authorization Act (NDAA)/RoHS/Trade Agreements Act (TAA)/UL/VCCI/WEEE
  • Number of cameras: 1
  • Manual: Yes
  • Doesnt contain: PVC
  • Units per Pallet: 0
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.04263
  • Unit Calculated Weight: 4
Specifications
AC input frequency50/60
AC input voltage24
Active tampering alarmYes
Alarm input/outputYes
Audio detectionYes
Audio formats supportedAAC/AAC-LC/G.711
Audio system full duplexYes
Auto flipYes
Auto-trackingYes
Back Light Compensation (BLC)Yes
Camera shutter speed1 - 1/30000
Camera shutter typeElectronic
Card reader integratedYes
Cloud-managedYes
Colour temperature10000
Compatible memory cardsSD
Compliance certificatesCE/Federal Communications Commission (FCC)/National Defense Authorization Act (NDAA)/RoHS/Trade Agreements Act (TAA)/UL/VCCI/WEEE
Connectivity technologyWired
Country of originPortugal
Day/night modeYes
Depth210.6
Detect distance2316
Digital watermarkYes
Digital zoom32
Doesn\'t containPVC
Ethernet interface typeFast Ethernet/Gigabit Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Flash memory8192
Focal length range4.25 - 170
Form factorDome
Frame rate60
Gain control typeAuto
Height324
Housing materialAluminium/Polycarbonate (PC)
HTTPS encryptionYes
Identify distance232
IK codeIK10
Image quality adjustmentSaturation
Image stabilizerYes
Infra-red wavelength850
Internal memory4096
International Protection (IP) codeIP66
LED typeIR
Lens viewing angle, horizontal66.35
ManualYes
Maximum aperture number4.95
Maximum memory card size2000
Maximum resolution1920 x 1080
Minimum aperture number1.6
Minimum illumination0.001
Mounting typeCeiling
Networking standardsIEEE 802.3bt
Night visionYes
Night vision distance300
Number of cameras1
Number of lenses1
Number of Privacy masking areas32
Number of sensors1
Operating relative humidity (H-H)0 - 100
Operating temperature (T-T)-40 - 60
Optical sensor size1/2.8
Optical zoom40
Pan range0 - 360
Pan speed400
Pixel counterYes
Placement supportedIndoor & outdoor
Power consumption (max)66.6
Power consumption (Power over Ethernet (PoE))64.8
Power source typeAC,DC,PoE
Preset pointsYes
Product colourBlack/White
PTZ controlYes
Quality of Service (QoS) supportYes
Recognize distance463
Security algorithms128-bit AES/256-bit AES/256-bit AES-CBC/4096-bit RSA/TLS
Sensor typeCMOS
Storage relative humidity (H-H)0 - 95
Storage temperature (T-T)-40 - 70
SummaryBosch AUTODOME 7100i. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Black, Form factor: Dome. Minimum illumination: 0.001 lx, Lens viewing angle, horizontal: 66.35°, Tilt angle range: -90 - 20°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 40x, Digital zoom: 32x, Detect distance: 2316 m
Supported graphics resolutions1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/512 x 288/704 x 480/704 x 576/720 x 480/720 x 576/768 x 432
Supported network protocolsIPv4; IPv6; UDP; TCP; HTTP; HTTPS; RTP/ RTCP; IGMP V2/V3; ICMP; ICMPv6; RTSP; FTP; ARP; DHCP; SNMP (V3, MIBII); DNS; DNSv6; DDNS (DynDNS.org, selfHOST.de, no-ip.com); SMTP; iSCSI; UPnP (SSDP); DiffServ (QoS); SOAP; CHAP; Digest authentication; HSTS; RTSPS
Tilt angle range-90 - 20
Tilt speed400
Total megapixels2
Tour recordingYes
TypeIP security camera
Video formats supportedH.264/H.265/HEVC/M-JPEG
Video motion detectionYes
Video streamingYes
Weight5620
White balanceATW/Auto/Indoor/Outdoor
Wide Dynamic Range (WDR)Yes
Width210.6
Zoom capabilityYes
Specs
Category CodeFNC
Description

AUTODOME 7100i

This high performance PTZ camera has starlight imaging technology for excellent lowlight sensitivity and fully configurable quad video streaming. A powerful, embedded processor with dedicated hardware supports advanced machine learning and neural-networkbased Intelligent Video Analytics. Built-in, applicationspecific Intelligent Video Analytics (IVA) Pro packages such as IVA Pro Buildings, IVA Pro Perimeter, and IVA Pro Privacy provide superior intelligence at the edge. The design gives undistorted, high-resolution video above the horizon, which is helpful in city landscapes that are not flat.

NameNET CAMERA 2MP IP PTZ DOME/NDP-7802-Z40L BOSCH
PictureUrlhttps://static.elko.cloud/ProductImages/3ecd7642-8c0f-4593-8b69-1f544dc29217.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/3ecd7642-8c0f-4593-8b69-1f544dc29217.Jpeg
Unit Calculated Volume0.04263
Unit Calculated Weight4
Units per Pallet0
Units per Shipping Box1
Vendor Homepagehttps://commerce.keenfinity.tech/us/en/PTZ-2MP-HDR-40x-IP66-pendant-IR/p/F.01U.419.732/
