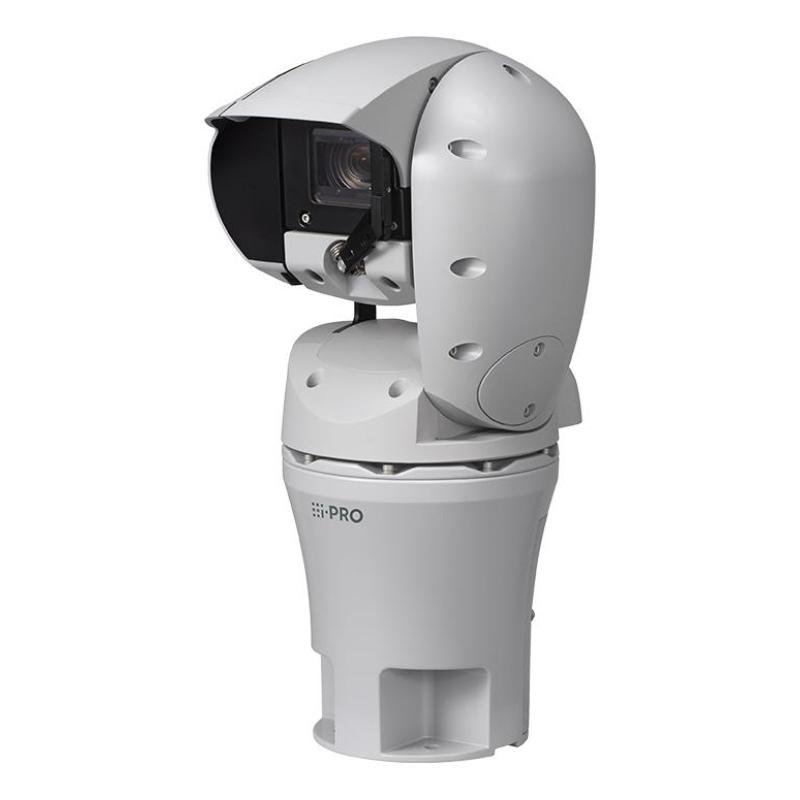

NET CAMERA 2MP PTZ AI OUTD./RUGGED WV-X67310-Z4-3 I-PRO

NET CAMERA 2MP PTZ AI OUTD./RUGGED WV-X67310-Z4-3 I-PRO
NET CAMERA 2MP PTZ AI OUTD./RUGGED WV-X67310-Z4-3 I-PRO
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 2048 x 1536
  • Total megapixels: 2
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
388,719ден.
  • Достапност:
  • Бренд: I-PRO
  • Шифра: 453979
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: i-PRO 2MP AI Rugged PTZ Camera (40x zoom). Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Product colour: Grey, Form factor: Tower, Housing material: Resin. Minimum illumination: 0.0004 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 66°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 40x, Digital zoom: 640x, Focal length range: 4.25 - 170 mm
  • Vendor Homepage: https://i-pro.com/products_and_solutions/us-en/surveillance/products/wv-x67310-z4-3
  • Name: NET CAMERA 2MP PTZ AI OUTD./RUGGED WV-X67310-Z4-3 I-PRO
  • Category Code: FNC
  • Form factor: Tower
  • Product colour: Grey
  • Housing material: Resin
  • Protection features: Dust resistant/Shock resistant/Vibration proof/Water resistant/Wind resistant
  • International Protection (IP) code: IP66, IP68
  • IK code: IK10
  • Weatherproof: Yes
  • Fog proof: Yes
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Outdoor
  • PTZ control: Yes
  • PTZ modes: Preset sequence
  • Auto-tracking: Yes
  • Auto pan mode: Yes
  • Auto patrol mode: Yes
  • Preset points: Yes
  • Alarm input/output: Yes
  • Dynamic range: 144
  • Languages support: English/French/German/Italian/Japanese/Portuguese/Russian/Simplified Chinese/Spanish
  • Camera pan control: Yes
  • Camera tilt control: Yes
  • Minimum illumination: 0.0004
  • Angle of rotation: 360
  • Lens viewing angle, horizontal: 66
  • Lens viewing angle, vertical: 39
  • Tilt angle range: -90 - 90
  • Tilt manual speed: 0.065 - 100
  • Tilt preset speed: 200
  • Pan range: 0 - 360
  • Pan manual speed: 0.065 - 100
  • Pan preset speed: 200
  • White balance: ATW/AWC
  • Camera shutter speed: 1/4000 - 16/30
  • Number of Privacy masking areas: 32
  • Optical sensor size: 1/2.8
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Optical zoom: 40
  • Digital zoom: 640
  • Focal length range: 4.25 - 170
  • Maximum aperture number: 1.6
  • Detect distance (tele): 2315.7
  • Detect distance (wide): 59.1
  • Identify distance (tele): 231.6
  • Identify distance (wide): 5.9
  • Normal focusing range: 3
  • Observe distance (tele): 926.3
  • Observe distance (wide): 23.7
  • Recognize distance (tele): 463.1
  • Recognize distance (wide): 11.8
  • Maximum resolution: 2048 x 1536
  • Total megapixels: 2
  • Video formats supported: H.264/H.265/M-JPEG
  • Supported graphics resolutions: 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/320 x 180/640 x 360
  • Noise reduction: Yes
  • Back Light Compensation (BLC): Yes
  • Highlight Compensation (HLC): Yes
  • Image quality adjustment: Automatic gain control (AGC)
  • Image stabilizer: Yes
  • Audio formats supported: AAC-LC/ADPCM/G.711/G.726
  • Audio detection: Yes
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet
  • Networking standards: IEEE 802.1x/IEEE 802.3bt
  • Supported network protocols: IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, FTP, SFTP, LLDP, MQTT IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3,
  • Streaming method: Multicast/Unicast
  • Interface: RJ-45
  • Digest authentication: Yes
  • Intelligent Video Surveillance (IVS) system features: Face detection/Human detection/Scene change/Vehicle detection
  • Privacy protection: Yes
  • Security algorithms: FIPS 140-2/HTTPS
  • Video motion detection: Yes
  • Web browser: Yes
  • Power source type: PoE++,AC,DC
  • AC input voltage: 24
  • AC input frequency: 50/60
  • Power consumption: 1400
  • Power consumption (typical): 61
  • Power consumption (Power over Ethernet (PoE)): 54
  • DC output voltage: 24
  • Waste Electrical and Electronic Equipment (WEEE) compliance: Yes
  • Operating temperature (T-T): -50 - 65
  • Storage temperature (T-T): -30 - 65
  • Operating relative humidity (H-H): 10 - 100
  • Storage relative humidity (H-H): 10 - 95
  • Mobile operating systems supported: Android/iOS/iOS 8.0/iPadOS
  • Width: 226
  • Depth: 266
  • Height: 450
  • Weight: 8100
  • Compliance certificates: CE/cUL/Federal Communications Commission (FCC)/National Defense Authorization Act (NDAA)/UKCA/UL
  • Number of cameras: 1
  • Browser supported: Microsoft Edge Firefox Google Chrome
  • Data transfer rate: 100
  • Number of simultaneous users: 14
  • Output impedance: 600
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.001734
  • Unit Calculated Weight: 9
Specifications
AC input frequency50/60
AC input voltage24
Alarm input/outputYes
Angle of rotation360
Audio detectionYes
Audio formats supportedAAC-LC/ADPCM/G.711/G.726
Auto pan modeYes
Auto patrol modeYes
Auto-trackingYes
Back Light Compensation (BLC)Yes
Browser supportedMicrosoft Edge Firefox Google Chrome
Camera pan controlYes
Camera shutter speed1/4000 - 16/30
Camera tilt controlYes
Compliance certificatesCE/cUL/Federal Communications Commission (FCC)/National Defense Authorization Act (NDAA)/UKCA/UL
Connectivity technologyWired
DC output voltage24
Depth266
Detect distance (tele)2315.7
Detect distance (wide)59.1
Digest authenticationYes
Digital zoom640
Dynamic range144
Ethernet interface typeFast Ethernet
Ethernet LANYes
Focal length range4.25 - 170
Fog proofYes
Form factorTower
Height450
Highlight Compensation (HLC)Yes
Housing materialResin
Identify distance (tele)231.6
Identify distance (wide)5.9
IK codeIK10
Image quality adjustmentAutomatic gain control (AGC)
Image stabilizerYes
Intelligent Video Surveillance (IVS) system featuresFace detection/Human detection/Scene change/Vehicle detection
InterfaceRJ-45
International Protection (IP) codeIP66, IP68
Languages supportEnglish/French/German/Italian/Japanese/Portuguese/Russian/Simplified Chinese/Spanish
Lens viewing angle, horizontal66
Lens viewing angle, vertical39
Maximum aperture number1.6
Maximum resolution2048 x 1536
Minimum illumination0.0004
Mobile operating systems supportedAndroid/iOS/iOS 8.0/iPadOS
Networking standardsIEEE 802.1x/IEEE 802.3bt
Noise reductionYes
Normal focusing range3
Number of cameras1
Number of Privacy masking areas32
Number of simultaneous users14
Observe distance (tele)926.3
Observe distance (wide)23.7
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-50 - 65
Optical sensor size1/2.8
Optical zoom40
Output impedance600
Pan manual speed0.065 - 100
Pan preset speed200
Pan range0 - 360
Placement supportedOutdoor
Power consumption (Power over Ethernet (PoE))54
Power consumption (typical)61
Power source typePoE++,AC,DC
Preset pointsYes
Privacy protectionYes
Product colourGrey
Protection featuresDust resistant/Shock resistant/Vibration proof/Water resistant/Wind resistant
PTZ controlYes
PTZ modesPreset sequence
Recognize distance (tele)463.1
Recognize distance (wide)11.8
Security algorithmsFIPS 140-2/HTTPS
Sensor typeCMOS
Storage relative humidity (H-H)10 - 95
Storage temperature (T-T)-30 - 65
Streaming methodMulticast/Unicast
Summaryi-PRO 2MP AI Rugged PTZ Camera (40x zoom). Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Product colour: Grey, Form factor: Tower, Housing material: Resin. Minimum illumination: 0.0004 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 66°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 40x, Digital zoom: 640x, Focal length range: 4.25 - 170 mm
Supported graphics resolutions1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/320 x 180/640 x 360
Supported network protocolsIPv6: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, FTP, SFTP, LLDP, MQTT IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3,
Tilt angle range-90 - 90
Tilt manual speed0.065 - 100
Tilt preset speed200
Total megapixels2
TypeIP security camera
Video formats supportedH.264/H.265/M-JPEG
Video motion detectionYes
Waste Electrical and Electronic Equipment (WEEE) complianceYes
WeatherproofYes
Web browserYes
Weight8100
White balanceATW/AWC
Width226
Zoom capabilityYes
Specs
Category CodeFNC
Data transfer rate100
Description

  • 2MP 40x Aero PTZ camera
  • Up to 2 Edge AI analytic apps
  • AI Auto tracking
  • 24V AC/DC Power supply
  • Wind resistance (Up to 270km/h, 167mph)
  • Wide range of ambient temperatures supported (-50 °C to +65 °C {-58 °F to +149 °F})
  • IP66, IP68, IK10 certified
  • Built-in FIPS 140-2 Level 3 Certified SecureElement (EdgeLock® SE050F NXP® Semiconductors)
  • NDAA Compliant

NameNET CAMERA 2MP PTZ AI OUTD./RUGGED WV-X67310-Z4-3 I-PRO
PictureUrlhttps://static.elko.cloud/ProductImages/07eeeb2b-d368-4c97-a1f1-ea69c9066a5c.Jpeg
Power consumption1400
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/07eeeb2b-d368-4c97-a1f1-ea69c9066a5c.Jpeg
Unit Calculated Volume0.001734
Unit Calculated Weight9
Units per Shipping Box1
Vendor Homepagehttps://i-pro.com/products_and_solutions/us-en/surveillance/products/wv-x67310-z4-3
