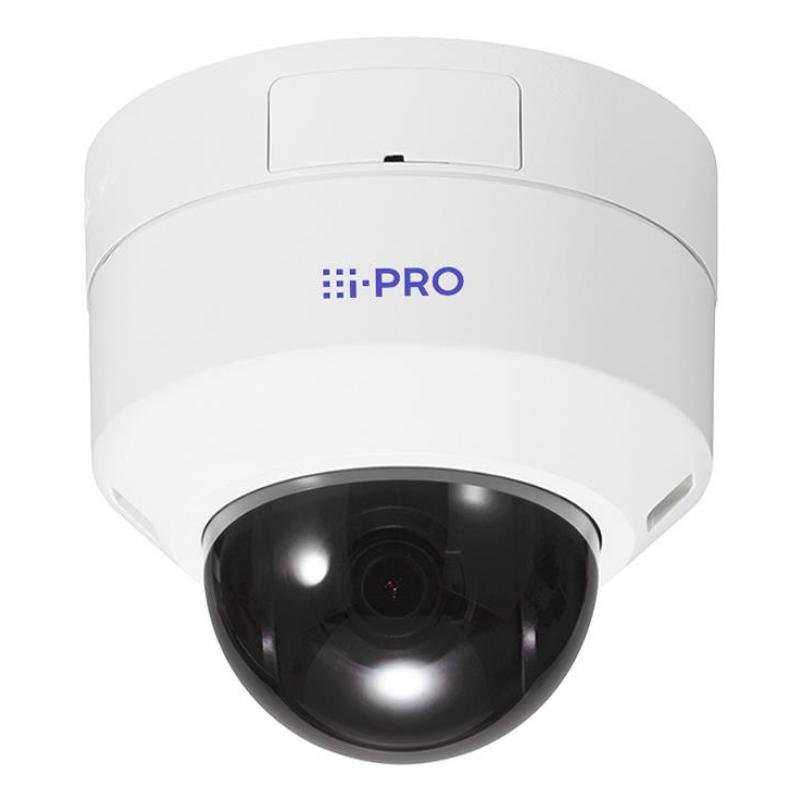

NET CAMERA 2MP PTZ DOME INDOOR/WV-U61300-ZYG I-PRO

NET CAMERA 2MP PTZ DOME INDOOR/WV-U61300-ZYG I-PRO
NET CAMERA 2MP PTZ DOME INDOOR/WV-U61300-ZYG I-PRO
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 2048 x 1536
  • Total megapixels: 2
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
51,607ден.
  • Достапност:
  • Бренд: I-PRO
  • Шифра: 443663
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: i-PRO U series PTZ camera. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.0008 lx, Angle of rotation: 180°, Tilt angle range: 0 - 100°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 3.1x, Digital zoom: 49.6x, Focal length range: 2.9 - 9 mm
  • Vendor Homepage: https://i-pro.com/products_and_solutions/en/surveillance/products/wv-u61300-zyg
  • Name: NET CAMERA 2MP PTZ DOME INDOOR/WV-U61300-ZYG I-PRO
  • Category Code: FNC
  • Model: WV-U61300-ZYG
  • Form factor: Dome
  • Mounting type: Ceiling/wall
  • Product colour: White
  • Housing material: Aluminium
  • Fog proof: Yes
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Indoor
  • PTZ control: Yes
  • Auto pan mode: Yes
  • Auto patrol mode: Yes
  • Preset points: Yes
  • Dynamic range: 144
  • Languages support: English/French/German/Italian/Japanese/Portuguese/Russian/Simplified Chinese/Spanish
  • Camera pan control: Yes
  • Camera tilt control: Yes
  • Minimum illumination: 0.0008
  • Angle of rotation: 180
  • Tilt angle range: 0 - 100
  • Tilt manual speed: 0.065 - 150
  • Tilt preset speed: 150
  • Pan range: 0 - 350
  • Pan manual speed: 0.065 - 150
  • Pan preset speed: 150
  • White balance: ATW/AWC
  • Camera shutter speed: 1/4000 - 16/30
  • Number of Privacy masking areas: 8
  • Optical sensor size: 1/2.8
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Optical zoom: 3.1
  • Digital zoom: 49.6
  • Focal length range: 2.9 - 9
  • Auto focus: Yes
  • Maximum aperture number: 1.3
  • Detect distance (tele): 118.2
  • Detect distance (wide): 25.4
  • Identify distance (tele): 11.8
  • Identify distance (wide): 2.5
  • Normal focusing range: 0.3
  • Observe distance (tele): 47.3
  • Observe distance (wide): 10.2
  • Recognize distance (tele): 23.6
  • Recognize distance (wide): 5.1
  • Night vision: Yes
  • Maximum resolution: 2048 x 1536
  • Total megapixels: 2
  • Video formats supported: H.264/H.265/M-JPEG
  • Supported graphics resolutions: 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/320 x 180/640 x 360
  • Noise reduction: Yes
  • Back Light Compensation (BLC): Yes
  • Highlight Compensation (HLC): Yes
  • Image stabilizer: Yes
  • Audio detection: Yes
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet
  • Networking standards: IEEE 802.3af
  • Supported network protocols: IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, SFTP, MQTT, LLDP IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPn
  • Number of simultaneous live view channels: 14
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Maximum memory card size: 512
  • Ethernet LAN (RJ-45) ports: 1
  • Microphone in: Yes
  • Alarm input channels: 3
  • Alert notification type: E-mail
  • Security algorithms: FIPS 140-2/HTTPS
  • Web browser: Yes
  • Power source type: DC,PoE
  • Power consumption (typical): 10.7
  • Power consumption (Power over Ethernet (PoE)): 12
  • DC output voltage: 12
  • DC output current: 0.89
  • Operating temperature (T-T): -10 - 50
  • Storage temperature (T-T): -30 - 60
  • Operating relative humidity (H-H): 10 - 90
  • Storage relative humidity (H-H): 10 - 95
  • Mobile operating systems supported: Android/iOS/iOS 8.0/iPadOS
  • Height: 128
  • Diameter: 131
  • Weight: 800
  • Compliance certificates: CE/Federal Communications Commission (FCC)/National Defense Authorization Act (NDAA)/UKCA/UL
  • Number of cameras: 1
  • Audio input: 3.5mm
  • Audio output: 3.5mm
  • Browser supported: Microsoft Edge, Firefox, Google Chrome
  • Data transfer rate: 100
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.001734
  • Unit Calculated Weight: 1
Specifications
Alarm input channels3
Alert notification typeE-mail
Angle of rotation180
Audio detectionYes
Audio input3.5mm
Audio output3.5mm
Auto focusYes
Auto pan modeYes
Auto patrol modeYes
Back Light Compensation (BLC)Yes
Browser supportedMicrosoft Edge, Firefox, Google Chrome
Camera pan controlYes
Camera shutter speed1/4000 - 16/30
Camera tilt controlYes
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Compliance certificatesCE/Federal Communications Commission (FCC)/National Defense Authorization Act (NDAA)/UKCA/UL
Connectivity technologyWired
DC output current0.89
DC output voltage12
Detect distance (tele)118.2
Detect distance (wide)25.4
Diameter131
Digital zoom49.6
Dynamic range144
Ethernet interface typeFast Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Focal length range2.9 - 9
Fog proofYes
Form factorDome
Height128
Highlight Compensation (HLC)Yes
Housing materialAluminium
Identify distance (tele)11.8
Identify distance (wide)2.5
Image stabilizerYes
Languages supportEnglish/French/German/Italian/Japanese/Portuguese/Russian/Simplified Chinese/Spanish
Maximum aperture number1.3
Maximum memory card size512
Maximum resolution2048 x 1536
Microphone inYes
Minimum illumination0.0008
Mobile operating systems supportedAndroid/iOS/iOS 8.0/iPadOS
Mounting typeCeiling/wall
Networking standardsIEEE 802.3af
Night visionYes
Noise reductionYes
Normal focusing range0.3
Number of cameras1
Number of Privacy masking areas8
Number of simultaneous live view channels14
Observe distance (tele)47.3
Observe distance (wide)10.2
Operating relative humidity (H-H)10 - 90
Operating temperature (T-T)-10 - 50
Optical sensor size1/2.8
Optical zoom3.1
Pan manual speed0.065 - 150
Pan preset speed150
Pan range0 - 350
Placement supportedIndoor
Power consumption (Power over Ethernet (PoE))12
Power consumption (typical)10.7
Power source typeDC,PoE
Preset pointsYes
Product colourWhite
PTZ controlYes
Recognize distance (tele)23.6
Recognize distance (wide)5.1
Security algorithmsFIPS 140-2/HTTPS
Sensor typeCMOS
Storage relative humidity (H-H)10 - 95
Storage temperature (T-T)-30 - 60
Summaryi-PRO U series PTZ camera. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.0008 lx, Angle of rotation: 180°, Tilt angle range: 0 - 100°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 3.1x, Digital zoom: 49.6x, Focal length range: 2.9 - 9 mm
Supported graphics resolutions1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/320 x 180/640 x 360
Supported network protocolsIPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, SFTP, MQTT, LLDP IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPn
Tilt angle range0 - 100
Tilt manual speed0.065 - 150
Tilt preset speed150
Total megapixels2
TypeIP security camera
Video formats supportedH.264/H.265/M-JPEG
Web browserYes
Weight800
White balanceATW/AWC
Zoom capabilityYes
Specs
Category CodeFNC
Data transfer rate100
Description

U-Series launch gives customers PTZ’s that meet top security certifications (FIPS 140-2 level 3) while also providing a unique blend of imaging performance, reliability and affordability.

Highly durable pan-tilt drive unit Reduced maintenance costs
PAN,TILT drive endurance (1 million cycles) to reduce maintenance frequency .

Easy installation
Both pigtail or gromet are available to be flexibly to adapt to the installation environment.
Easy Kitting will also save your time for installation.

High security standard
Highest level of security. In addition to digital certificates issued by a third-party organization (GlobalSign®), FIPS 140-2 level3-certified hardware is installed.

  • 2MP (1080p) 1920x1080
  • 3.1x optical zoom
  • Intelligent Auto
  • Super Dynamic 144dB
  • Color night vision (0.002 to 0.03 lx)
  • Durable Pan/Tilt gear mechanism
  • Built-in FIPS 140-2 Level 3 Certified Secure Element
  • (EdgeLock® SE050F NXP® Semiconductors)
  • Smoke Model
  • NDAA Compliant
