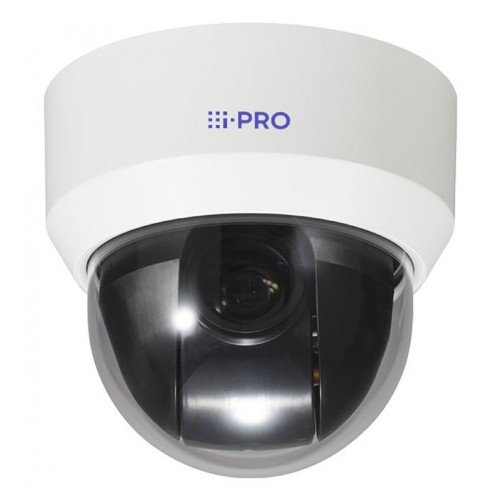

NET CAMERA 2MP PTZ DOME OUTD./VANDAL WV-U65302-Z2 I-PRO

Technical Specifications

• Summary: i-PRO WV-U65302-Z2. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.011 lx, Angle of rotation: 360°, Tilt angle range: -15 - 195°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 21x, Digital zoom: 336x, Focal length range: 4 - 84.6 mm
• Vendor Homepage: https://i-pro.com/products_and_solutions/eu-en/surveillance/products/wv-u65302-z2
• Name: NET CAMERA 2MP PTZ DOME OUTD./VANDAL WV-U65302-Z2 I-PRO
• Category Code: FNC
• Form factor: Dome
• Mounting type: Ceiling
• Product colour: White
• Housing material: Aluminium/Polycarbonate (PC)/Stainless steel
• Protection features: Corrosion resistant/Dust resistant/Water resistant/Wind resistant
• International Protection (IP) code: IP66
• IK code: IK10
• Fog proof: Yes
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Outdoor
• PTZ control: Yes
• PTZ modes: Preset sequence
• Auto pan mode: Yes
• Auto patrol mode: Yes
• Preset points: Yes
• Dynamic range: 144
• Languages support: English/French/German/Italian/Japanese/Portuguese/Russian/Simplified Chinese/Spanish
• Number of languages: 9
• Camera pan control: Yes
• Camera tilt control: Yes
• Minimum illumination: 0.011
• Angle of rotation: 360
• Tilt angle range: -15 - 195
• Tilt manual speed: 0.065 - 150
• Tilt preset speed: 500
• Pan range: 0 - 360
• Pan manual speed: 0.065 - 150
• Pan preset speed: 500
• White balance: ATW/AWC
• Camera shutter speed: 1/10000 - 1/60
• Optical sensor size: 1/2.8
• Sensor type: CMOS
• Zoom capability: Yes
• Optical zoom: 21
• Digital zoom: 336
• Focal length range: 4 - 84.6
• Auto focus: Yes
• Maximum aperture number: 4.5
• Minimum aperture number: 1.6
• Detect distance (tele): 1293.8
• Detect distance (wide): 51.9
• Identify distance (tele): 129.4
• Identify distance (wide): 5.2
• Observe distance (tele): 517.5
• Observe distance (wide): 20.8
• Recognize distance (tele): 258.8
• Recognize distance (wide): 10.4
• Maximum resolution: 2048 x 1536
• Total megapixels: 2
• Video formats supported: H.264/H.265/M-JPEG
• Supported graphics resolutions: 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/320 x 180/640 x 360
• Supported video modes: 1080p
• Video recording: Yes
• Noise reduction: Yes
• Back Light Compensation (BLC): Yes
• Highlight Compensation (HLC): Yes
• Image quality adjustment: Automatic gain control (AGC)/Brightness
• Image stabilizer: Yes
• Audio formats supported: AAC-LC/ADPCM/G.711/G.726
• Audio detection: Yes
• Ethernet LAN: Yes
• Ethernet interface type: Fast Ethernet
• Networking standards: IEEE 802.1x/IEEE 802.3af/IEEE 802.3at
• Supported network protocols: IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, SFTP, MQTT, LLDP IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPn
• Number of users: 14
• Streaming method: Multicast/Unicast
• Card reader integrated: Yes
• Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
• Maximum memory card size: 512
• Alert notification type: E-mail
• Intelligent Video Surveillance (IVS) system features: Scene change
• Security algorithms: FIPS 140-2/HTTPS
• Video motion detection: Yes
• Web browser: Yes
• Power source type: PoE+,DC,PoE
• Power consumption: 340
• Power consumption (typical): 18.4
• Power consumption (Power over Ethernet (PoE)): 18.4
• DC output voltage: 12,48,54
• DC output current: 1.3
• Operating temperature (T-T): -30 - 55
• Storage temperature (T-T): -20 - 55
• Operating relative humidity (H-H): 10 - 100
• Mobile operating systems supported: Android/iOS/iOS 8.0/iPadOS
• Height: 153
• Diameter: 165
• Weight: 1700
• Compliance certificates: CE/cUL/Federal Communications Commission (FCC)/National Defense Authorization Act (NDAA)/UKCA/UL
• Number of cameras: 1
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.001734
• Unit Calculated Weight: 1.5
