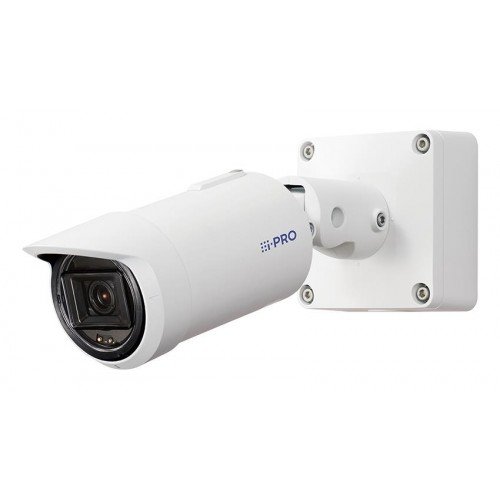

NET CAMERA 4K BULLET AI OUTD./WV-X15700-V2L I-PRO

Technical Specifications

• Summary: i-PRO WV-X15700-V2L. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, Form factor: Bullet. Minimum illumination: 0.03 lx, Tilt angle range: 0 - 100°, Pan range: -180 - 180°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Optical zoom: 2x, Focal length range: 4.3 - 8.6 mm, Detect distance (wide): 60 m
• Vendor Homepage: https://i-pro.com/products_and_solutions/eu-de/surveillance/products/wv-x15700-v2l
• Name: NET CAMERA 4K BULLET AI OUTD./WV-X15700-V2L I-PRO
• Category Code: FNC
• Form factor: Bullet
• Mounting type: Ceiling/Wall/Pole
• Product colour: White
• Housing material: Aluminium/Polycarbonate (PC)/Stainless steel
• International Protection (IP) code: IP66, IP67
• IK code: IK10
• Fog proof: Yes
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Outdoor
• Day/night mode: Yes
• Infrared (IR) cut-off filter: Yes
• Alarm input/output: Yes
• Dynamic range: 132
• Minimum illumination: 0.03
• Tilt angle range: 0 - 100
• Pan range: -180 - 180
• White balance: ATW/AWC
• Camera shutter speed: 1/25 - 1/10000
• Optical sensor size: 1/1.8
• Sensor type: CMOS
• Zoom capability: Yes
• Optical zoom: 2
• Focal length range: 4.3 - 8.6
• Maximum aperture number: 2.4
• Minimum aperture number: 1.5
• Closest focusing distance: 1
• Detect distance (tele): 154
• Detect distance (wide): 60
• Identify distance (tele): 15.4
• Identify distance (wide): 6
• Observe distance (tele): 61.6
• Observe distance (wide): 24
• Recognize distance (tele): 30.8
• Recognize distance (wide): 12
• Night vision: Yes
• Night vision distance: 70
• LED type: IR
• Video compression formats: H.264/H.265
• Video intelligence analytic: Yes
• Noise reduction: Yes
• Back Light Compensation (BLC): Yes
• Highlight Compensation (HLC): Yes
• Image stabilizer: Yes
• Privacy masking: Yes
• Audio detection: Yes
• Ethernet LAN: Yes
• Ethernet interface type: Fast Ethernet
• Supported network protocols: IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, FTP, SFTP, LLDP, MQTT IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3,
• Number of users: 14
• Card reader integrated: Yes
• Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
• Maximum memory card size: 512
• Ethernet LAN (RJ-45) ports: 1
• Microphone in: Yes
• Active tampering alarm: Yes
• Intelligent Video Surveillance (IVS) system features: Face detection/Human detection/Scene change/Vehicle detection
• Video motion detection: Yes
• Web-based management: Yes
• Web browser: Yes
• Smartphone/tablet remote support: Yes
• Power source type: DC,PoE
• Power consumption (typical): 14.2
• Power consumption (Power over Ethernet (PoE)): 14
• DC output voltage: 12
• DC output current: 1.2
• Operating temperature (T-T): -40 - 55
• Operating relative humidity (H-H): 10 - 100
• Width: 133
• Depth: 383
• Height: 133
• Weight: 2500
• Number of cameras: 1
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.0153
• Unit Calculated Weight: 3
