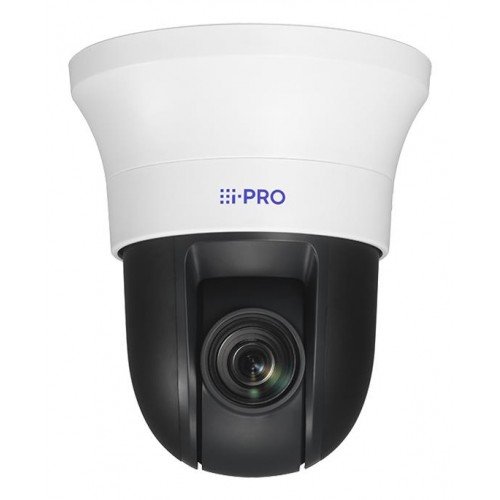

NET CAMERA 4K PTZ AI INDOOR/WV-S61702-Z3 I-PRO

Technical Specifications

• Summary: i-PRO WV-S61702-Z3. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.13 lx, Tilt angle range: -25 - 205°, Tilt preset speed: 350 °/sec. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 40x, Focal length range: 4.25 - 170 mm, Focus: Motorized
• Vendor Homepage: https://i-pro.com/products_and_solutions/en/surveillance/products/wv-s61702-z3
• Name: NET CAMERA 4K PTZ AI INDOOR/WV-S61702-Z3 I-PRO
• Category Code: FNC
• Form factor: Dome
• Mounting type: Ceiling
• Product colour: Black/White
• Housing material: Acrylonitrile butadiene styrene (ABS)/Aluminium
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Indoor
• PTZ control: Yes
• Auto-tracking: Yes
• Dynamic range: 132
• Languages support: English/French/German/Italian/Portuguese/Russian/Spanish
• Number of languages: 9
• Minimum illumination: 0.13
• Tilt angle range: -25 - 205
• Tilt manual speed: 0.065 - 150
• Tilt preset speed: 350
• Pan range: 0 - 350
• Pan manual speed: 0.065 - 150
• Pan preset speed: 500
• Optical sensor size: 1/2.8
• Sensor type: CMOS
• Zoom capability: Yes
• Optical zoom: 40
• Number of lenses: 1
• Focal length range: 4.25 - 170
• Focus: Motorized
• Maximum aperture number: 4.7
• Minimum aperture number: 1.8
• Detect distance (tele): 3519.7
• Detect distance (wide): 127.8
• Identify distance (tele): 352
• Identify distance (wide): 12.8
• Normal focusing range: 3
• Observe distance (tele): 1407.9
• Observe distance (wide): 51.1
• Recognize distance (tele): 703.9
• Recognize distance (wide): 25.6
• Maximum resolution: 3840 x 2160
• Video compression formats: H.264/H.265/M-JPEG
• Frame rate: 30
• Noise reduction: Yes
• Back Light Compensation (BLC): Yes
• Highlight Compensation (HLC): Yes
• Image quality adjustment: Automatic gain control (AGC)
• Image stabilizer: Yes
• Audio system full duplex: Yes
• Audio formats supported: AAC-LC/G.711/G.726
• Ethernet LAN: Yes
• Number of users: 14
• Streaming method: Multicast/Unicast
• Card reader integrated: Yes
• Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
• Maximum memory card size: 512
• Ethernet LAN (RJ-45) ports: 1
• Microphone in: Yes
• Headphone outputs: 1
• Security algorithms: FIPS 140-2/HTTPS
• Video motion detection: Yes
• Web browser: Yes
• Behavior analysis: Scene change detection
• Power source type: DC,PoE
• Power consumption: 310
• Power consumption (typical): 16.7
• DC output voltage: 12,54
• DC output current: 1.25
• Operating temperature (T-T): -10 - 50
• Storage temperature (T-T): 0 - 50
• Operating relative humidity (H-H): 10 - 90
• Height: 214
• Diameter: 185
• Weight: 1800
• Compliance certificates: National Defense Authorization Act (NDAA)
• Number of cameras: 1
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.01
• Unit Calculated Weight: 2.2
