NET CAMERA 4MP DOME AI OUTDOOR/WV-X35402-F2LM I-PRO

NET CAMERA 4MP DOME AI OUTDOOR/WV-X35402-F2LM I-PRO
NET CAMERA 4MP DOME AI OUTDOOR/WV-X35402-F2LM I-PRO
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 2048 x 1536
  • Total megapixels: 4
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
54,017ден.
  • Достапност:
  • Бренд: I-PRO
  • Шифра: 453930
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: i-PRO WV-X35402-F2LM. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.07 lx, Tilt angle range: 0 - 90°, Pan range: -45 - 45°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Detect distance: 29 m, Observe distance: 11.6 m, Recognize distance: 5.8 m
  • Vendor Homepage: https://i-pro.com/products_and_solutions/en/surveillance/products/wv-x35402-f2lm
  • Name: NET CAMERA 4MP DOME AI OUTDOOR/WV-X35402-F2LM I-PRO
  • Category Code: FNC
  • Form factor: Dome
  • Mounting type: Ceiling/wall
  • Product colour: White
  • Housing material: Aluminium/Polycarbonate (PC)
  • International Protection (IP) code: IP66
  • IK code: IK10
  • Fog proof: Yes
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Outdoor
  • Day/night mode: Yes
  • Dynamic range: 132
  • Minimum illumination: 0.07
  • Tilt angle range: 0 - 90
  • Pan range: -45 - 45
  • White balance: ATW/AWC
  • Camera shutter speed: 16/30 - 1/10000
  • Optical sensor size: 1/2.8
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Detect distance: 29
  • Observe distance: 11.6
  • Recognize distance: 5.8
  • Identify distance: 2.9
  • Maximum aperture number: 2.1
  • Closest focusing distance: 0.7
  • Fixed focal length: 2.4
  • Night vision: Yes
  • Night vision distance: 14
  • LED type: IR
  • Maximum resolution: 2048 x 1536
  • Total megapixels: 4
  • Video compression formats: H.264/H.265
  • Video intelligence analytic: Yes
  • Noise reduction: Yes
  • Back Light Compensation (BLC): Yes
  • Highlight Compensation (HLC): Yes
  • Privacy masking: Yes
  • Built-in microphone: Yes
  • Audio detection: Yes
  • Ethernet LAN: Yes
  • Supported network protocols: IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiServ, LLDP, FTP, SFTP, MQTT IPv4: TCP/IP, UDP/ IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, U
  • Number of users: 14
  • Streaming method: Multicast/Unicast
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Maximum memory card size: 512
  • Ethernet LAN (RJ-45) ports: 1
  • Security algorithms: FIPS 140-2
  • Video motion detection: Yes
  • Web browser: Yes
  • Power source type: PoE
  • Power consumption: 180
  • Power consumption (Power over Ethernet (PoE)): 8.6
  • DC output voltage: 48
  • Operating temperature (T-T): -40 - 60
  • Storage temperature (T-T): -20 - 60
  • Operating relative humidity (H-H): 10 - 100
  • Width: 109
  • Depth: 119
  • Height: 53
  • Weight: 475
  • Compliance certificates: CE/cUL/Federal Communications Commission (FCC)/National Defense Authorization Act (NDAA)/UL
  • Number of cameras: 1
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.00608
  • Unit Calculated Weight: 1
Specifications
Audio detectionYes
Back Light Compensation (BLC)Yes
Built-in microphoneYes
Camera shutter speed16/30 - 1/10000
Card reader integratedYes
Closest focusing distance0.7
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Compliance certificatesCE/cUL/Federal Communications Commission (FCC)/National Defense Authorization Act (NDAA)/UL
Connectivity technologyWired
Day/night modeYes
DC output voltage48
Depth119
Detect distance29
Dynamic range132
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Fixed focal length2.4
Fog proofYes
Form factorDome
Height53
Highlight Compensation (HLC)Yes
Housing materialAluminium/Polycarbonate (PC)
Identify distance2.9
IK codeIK10
International Protection (IP) codeIP66
LED typeIR
Maximum aperture number2.1
Maximum memory card size512
Maximum resolution2048 x 1536
Minimum illumination0.07
Mounting typeCeiling/wall
Night visionYes
Night vision distance14
Noise reductionYes
Number of cameras1
Number of users14
Observe distance11.6
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-40 - 60
Optical sensor size1/2.8
Pan range-45 - 45
Placement supportedOutdoor
Power consumption (Power over Ethernet (PoE))8.6
Power source typePoE
Privacy maskingYes
Product colourWhite
Recognize distance5.8
Security algorithmsFIPS 140-2
Sensor typeCMOS
Storage temperature (T-T)-20 - 60
Streaming methodMulticast/Unicast
Summaryi-PRO WV-X35402-F2LM. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.07 lx, Tilt angle range: 0 - 90°, Pan range: -45 - 45°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Detect distance: 29 m, Observe distance: 11.6 m, Recognize distance: 5.8 m
Supported network protocolsIPv6: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiServ, LLDP, FTP, SFTP, MQTT IPv4: TCP/IP, UDP/ IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, U
Tilt angle range0 - 90
Total megapixels4
TypeIP security camera
Video compression formatsH.264/H.265
Video intelligence analyticYes
Video motion detectionYes
Web browserYes
Weight475
White balanceATW/AWC
Width109
Zoom capabilityYes
Specs
Category CodeFNC
Description

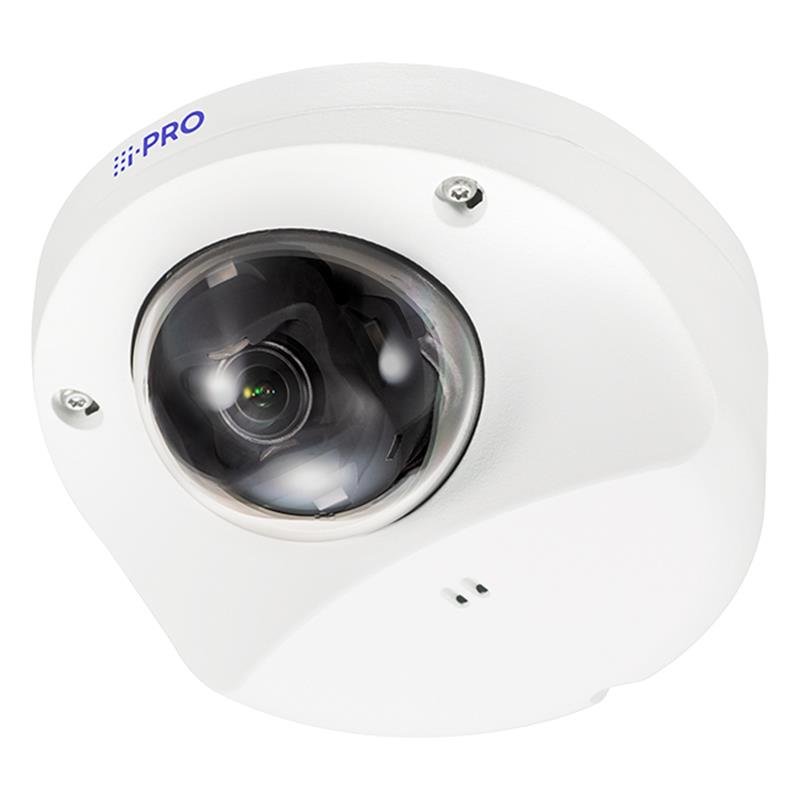

4MP On-board Compact Dome Network Camera with AI engine


  • 4MP Compact dome camera
  • Up to 1 Edge AI analytic app
  • On-board application (EN50155, EN45545 compliant)
  • Discreet design
  • Wide angle of view (Horizontal 121°)
  • Built-in IR-LED (14m/46ft)
  • Built-in microphone
  • IP66, IK10 certified
  • Built-in FIPS 140-2 Level 3 Certified SecureElement (EdgeLock® SE050F NXP® Semiconductors)
  • NDAA Compliant

NameNET CAMERA 4MP DOME AI OUTDOOR/WV-X35402-F2LM I-PRO
PictureUrlhttps://static.elko.cloud/ProductImages/3fc0d7b3-cf4b-486f-ba21-fa9f05289c73.Jpeg
Power consumption180
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/3fc0d7b3-cf4b-486f-ba21-fa9f05289c73.Jpeg
Unit Calculated Volume0.00608
Unit Calculated Weight1
Units per Shipping Box1
Vendor Homepagehttps://i-pro.com/products_and_solutions/en/surveillance/products/wv-x35402-f2lm
