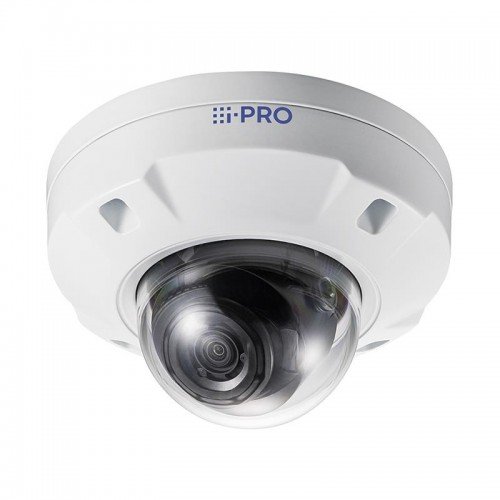

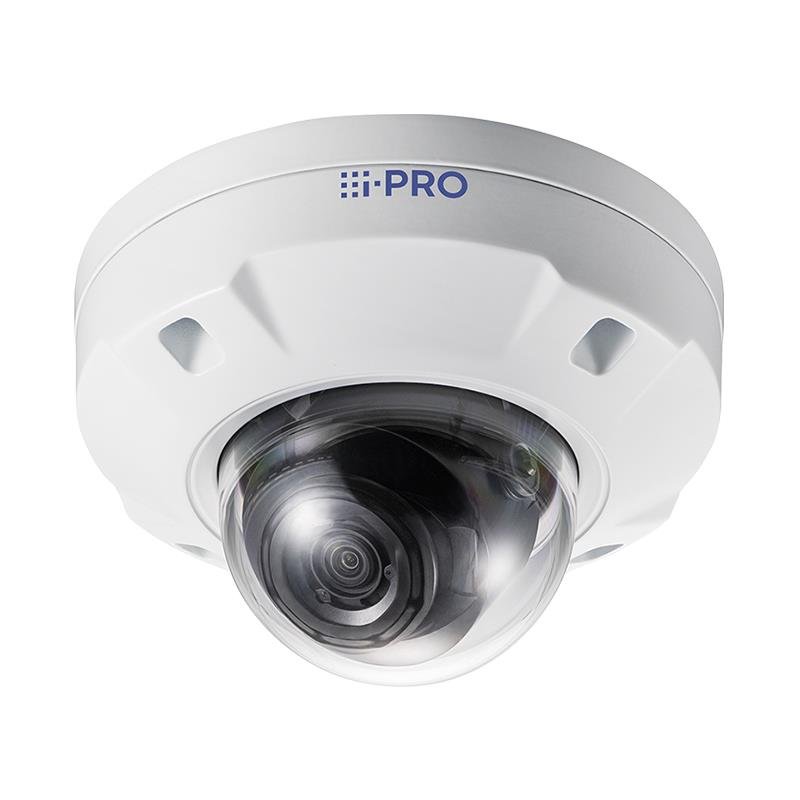

NET CAMERA 4MP DOME OUTDOOR/VANDAL WV-U2542LA I-PRO

NET CAMERA 4MP DOME OUTDOOR/VANDAL WV-U2542LA I-PRO
NET CAMERA 4MP DOME OUTDOOR/VANDAL WV-U2542LA I-PRO
  • Connectivity technology: Wired
  • Maximum resolution: 2688 x 1520
  • Total megapixels: 4
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
26,883ден.
  • Достапност:
  • Бренд: I-PRO
  • Шифра: 443690
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: i-PRO WV-U2542LA. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. White balance: ATW, AWC, Camera shutter speed: 1/10000 - 16/30 s. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Optical zoom: 2.5x, Digital zoom: 4x, Focal length range: 2.9 – 7.3
  • Vendor Homepage: https://i-pro.com/products_and_solutions/en/surveillance/products/wv-u2542la
  • Name: NET CAMERA 4MP DOME OUTDOOR/VANDAL WV-U2542LA I-PRO
  • Category Code: FNC
  • Model: WV-U2542LA
  • Form factor: Dome
  • Mounting type: Ceiling
  • Product colour: Black/White
  • International Protection (IP) code: IP66
  • IK code: IK10
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Outdoor
  • Day/night mode: Yes
  • Alarm input/output: Yes
  • Dynamic range: 102
  • Number of languages: 9
  • Certification: UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1 FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55035
  • White balance: ATW/AWC
  • Camera shutter speed: 1/10000 - 16/30
  • Optical sensor size: 1/2.7
  • Sensor type: CMOS
  • Optical zoom: 2.5
  • Digital zoom: 4
  • Focal length range: 2.9 - 7.3
  • Detect distance (tele): 130
  • Detect distance (wide): 43
  • Identify distance (tele): 13
  • Identify distance (wide): 4.3
  • Observe distance (tele): 52
  • Observe distance (wide): 17.2
  • Recognize distance (tele): 26
  • Recognize distance (wide): 8.6
  • Night vision: Yes
  • Maximum resolution: 2688 x 1520
  • Total megapixels: 4
  • Video formats supported: H.264/H.265
  • Frame rate: 30
  • Back Light Compensation (BLC): Yes
  • Highlight Compensation (HLC): Yes
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet
  • Supported network protocols: IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, MQTT, LLDP IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGM
  • Card reader integrated: Yes
  • Compatible memory cards: Memory Stick (MS)/MicroSDHC/MicroSDXC
  • Maximum memory card size: 512
  • Ethernet LAN (RJ-45) ports: 1
  • Power source type: PoE
  • Power consumption: 150
  • Power consumption (typical): 7.2
  • Operating temperature (T-T): -30 - 50
  • Operating relative humidity (H-H): 10 - 100
  • Width: 154
  • Depth: 154
  • Height: 103
  • Weight: 1000
  • Number of cameras: 1
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.001734
  • Unit Calculated Weight: 1.5
Specifications
Alarm input/outputYes
Back Light Compensation (BLC)Yes
Camera shutter speed1/10000 - 16/30
Card reader integratedYes
CertificationUL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1 FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55035
Compatible memory cardsMemory Stick (MS)/MicroSDHC/MicroSDXC
Connectivity technologyWired
Day/night modeYes
Depth154
Detect distance (tele)130
Detect distance (wide)43
Digital zoom4
Dynamic range102
Ethernet interface typeFast Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Focal length range2.9 - 7.3
Form factorDome
Frame rate30
Height103
Highlight Compensation (HLC)Yes
Identify distance (tele)13
Identify distance (wide)4.3
IK codeIK10
International Protection (IP) codeIP66
Maximum memory card size512
Maximum resolution2688 x 1520
Mounting typeCeiling
Night visionYes
Number of cameras1
Number of languages9
Observe distance (tele)52
Observe distance (wide)17.2
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-30 - 50
Optical sensor size1/2.7
Optical zoom2.5
Placement supportedOutdoor
Power consumption (typical)7.2
Power source typePoE
Product colourBlack/White
Recognize distance (tele)26
Recognize distance (wide)8.6
Sensor typeCMOS
Summaryi-PRO WV-U2542LA. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. White balance: ATW, AWC, Camera shutter speed: 1/10000 - 16/30 s. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Optical zoom: 2.5x, Digital zoom: 4x, Focal length range: 2.9 – 7.3
Supported network protocolsIPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, MQTT, LLDP IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGM
Total megapixels4
TypeIP security camera
Video formats supportedH.264/H.265
Weight1000
White balanceATW/AWC
Width154
Specs
Category CodeFNC
Description

The new U series offers high functionality and reliability at an affordable price to meet the needs of a wide range of customers.
i-PRO's original intelligent auto function and super dynamic function realize images that can be identified even in harsh environments.
It supports ONVIF G / S / T profile and H.265 and H.264, realizes high data compression efficiency, and supports a wide range of VMS and NVR connections. In addition, Pre-installed secure certificates enables device authentication and end-to-end communication encryption to counter the threat of advanced cyberattacks.

  • 2688×1520 pixel image up to 30fps
  • 2.5x built-in motorized zoom and motorized focus lens
  • iA (intelligent Auto)
  • Super Dynamic 102dB
  • Color night vision (0.019 to 0.3 lx)
  • H.265 Smart Coding
  • Corridor mode (90 degrees or 270 degrees in image rotation)
  • Built-in IR LED
  • NDAA Compliant

ModelWV-U2542LA
NameNET CAMERA 4MP DOME OUTDOOR/VANDAL WV-U2542LA I-PRO
PictureUrlhttps://static.elko.cloud/ProductImages/36d3fbb6-1759-41dc-b296-1274e82419f5.Jpeg
Power consumption150
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/36d3fbb6-1759-41dc-b296-1274e82419f5.Jpeg
Unit Calculated Volume0.001734
Unit Calculated Weight1.5
Units per Shipping Box1
Vendor Homepagehttps://i-pro.com/products_and_solutions/en/surveillance/products/wv-u2542la
