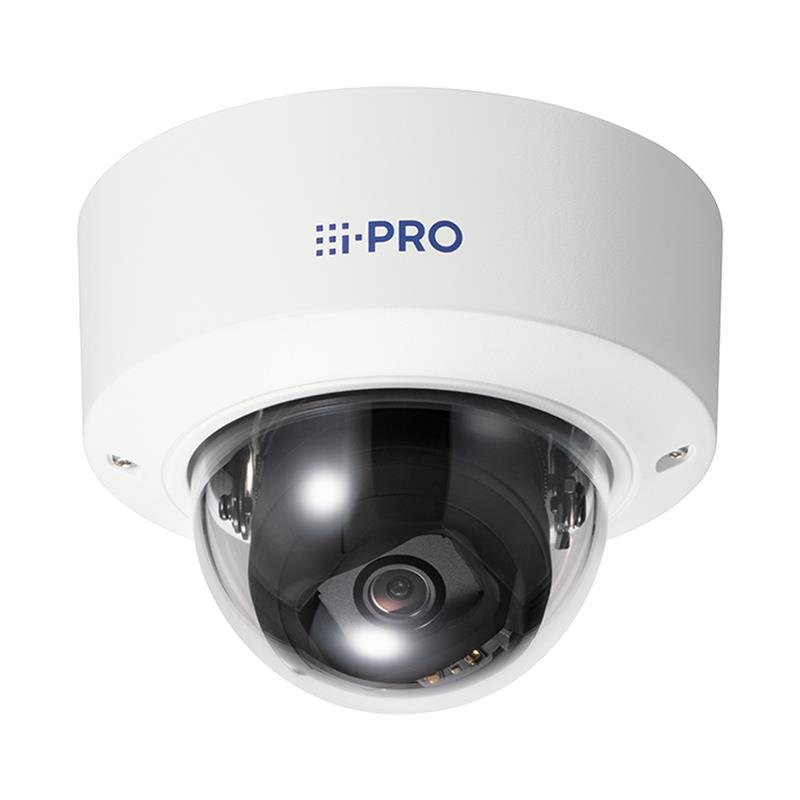

NET CAMERA 5MP DOME AI INDOOR/VANDAL WV-S22500-F3L I-PRO

NET CAMERA 5MP DOME AI INDOOR/VANDAL WV-S22500-F3L I-PRO
NET CAMERA 5MP DOME AI INDOOR/VANDAL WV-S22500-F3L I-PRO
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 3072 x 2304
  • Total megapixels: 5
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
42,369ден.
  • Достапност:
  • Бренд: I-PRO
  • Шифра: 454069
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: i-PRO WV-S22500-F3L. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Product colour: Black, White, Form factor: Dome, Housing material: Aluminium, Polycarbonate (PC), Stainless steel. Minimum illumination: 0.1 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 95°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"), Number of effective pixels (H x V): 5.12 x 3.84 pixels. Optical zoom: 3x, Detect distance: 56.3 m, Observe distance: 22.5 m
  • Vendor Homepage: https://i-pro.com/products_and_solutions/en/surveillance/products/wv-s22500-f3l
  • Name: NET CAMERA 5MP DOME AI INDOOR/VANDAL WV-S22500-F3L I-PRO
  • Category Code: FNC
  • Form factor: Dome
  • Product colour: Black/White
  • Housing material: Aluminium/Polycarbonate (PC)/Stainless steel
  • Protection features: Shock resistant/Vandal proof
  • IK code: IK10
  • Fog proof: Yes
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Indoor
  • Alarm input/output: Yes
  • Dynamic range: 132
  • Languages support: English/French/German/Italian/Japanese/Portuguese/Russian/Spanish
  • Number of languages: 9
  • Certification: UL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1, FCC (Part15 ClassA), ICES-003 ClassA, EN55032 ClassA, EN55035
  • Camera tilt control: Yes
  • Minimum illumination: 0.1
  • Angle of rotation: 360
  • Lens viewing angle, horizontal: 95
  • Lens viewing angle, vertical: 52 - 70
  • Tilt angle range: -30 - 85
  • White balance: ATW/AWC
  • Camera shutter speed: 1/30 - 1/10000
  • Number of Privacy masking areas: 8
  • Number of sensors: 1
  • Optical sensor size: 1/2.8
  • Number of effective pixels (H x V): 5.12 x 3.84
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Optical zoom: 3
  • Number of lenses: 1
  • Detect distance: 56.3
  • Observe distance: 22.5
  • Recognize distance: 11.3
  • Auto focus: Yes
  • Focus: Motorized
  • Identify distance: 5.6
  • Maximum aperture number: 2
  • Closest focusing distance: 1
  • Fixed focal length: 3.2
  • Night vision: Yes
  • Night vision distance: 25
  • LED type: IR
  • Maximum resolution: 3072 x 2304
  • Total megapixels: 5
  • Video formats supported: H.264/H.265
  • Supported graphics resolutions: 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2560 x 1440/2560 x 1920/320 x 180/320 x 240/400 x 300/640 x 360/800 x 600 (SVGA)
  • Frame rate: 30
  • Video intelligence analytic: Yes
  • Analog signal format system: NTSC/PAL
  • Noise reduction: Yes
  • Back Light Compensation (BLC): Yes
  • Bit rate control: Constant Bit Rate (CBR),Variable Bit Rate (VBR)
  • Highlight Compensation (HLC): Yes
  • Image quality adjustment: Brightness
  • Text caption overlay: Yes
  • Audio formats supported: AAC-LC/G.711/G.726
  • Audio detection: Yes
  • Bit rate range: 16 - 128
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet
  • Networking standards: IEEE 802.1x/IEEE 802.3af
  • Supported network protocols: IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, SFTP, MQTT, LLDP IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP,
  • Number of users: 14
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Maximum memory card size: 512
  • Ethernet LAN (RJ-45) ports: 1
  • Composite video out: 1
  • Microphone in: Yes
  • Terminal block port: Yes
  • Alert notification type: E-mail
  • Intelligent Video Surveillance (IVS) system features: Abnormal sound detection/Face detection/Vehicle detection
  • Privacy protection: Yes
  • Web browser: Yes
  • Power source type: DC,PoE
  • AC input voltage: 12-48
  • Power consumption (typical): 10.6
  • Power consumption (Power over Ethernet (PoE)): 10.6
  • Operating temperature (T-T): -10 - 50
  • Operating relative humidity (H-H): 10 - 90
  • Width: 129.5
  • Depth: 129.5
  • Height: 102.5
  • Weight: 800
  • Compliance certificates: National Defense Authorization Act (NDAA)
  • Number of cameras: 1
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.001734
  • Unit Calculated Weight: 1
Specifications
AC input voltage12-48
Alarm input/outputYes
Alert notification typeE-mail
Analog signal format systemNTSC/PAL
Angle of rotation360
Audio detectionYes
Audio formats supportedAAC-LC/G.711/G.726
Auto focusYes
Back Light Compensation (BLC)Yes
Bit rate controlConstant Bit Rate (CBR),Variable Bit Rate (VBR)
Bit rate range16 - 128
Camera shutter speed1/30 - 1/10000
Camera tilt controlYes
Card reader integratedYes
CertificationUL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1, FCC (Part15 ClassA), ICES-003 ClassA, EN55032 ClassA, EN55035
Closest focusing distance1
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Compliance certificatesNational Defense Authorization Act (NDAA)
Composite video out1
Connectivity technologyWired
Depth129.5
Detect distance56.3
Dynamic range132
Ethernet interface typeFast Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Fixed focal length3.2
FocusMotorized
Fog proofYes
Form factorDome
Frame rate30
Height102.5
Highlight Compensation (HLC)Yes
Housing materialAluminium/Polycarbonate (PC)/Stainless steel
Identify distance5.6
IK codeIK10
Image quality adjustmentBrightness
Intelligent Video Surveillance (IVS) system featuresAbnormal sound detection/Face detection/Vehicle detection
Languages supportEnglish/French/German/Italian/Japanese/Portuguese/Russian/Spanish
LED typeIR
Lens viewing angle, horizontal95
Lens viewing angle, vertical52 - 70
Maximum aperture number2
Maximum memory card size512
Maximum resolution3072 x 2304
Microphone inYes
Minimum illumination0.1
Networking standardsIEEE 802.1x/IEEE 802.3af
Night visionYes
Night vision distance25
Noise reductionYes
Number of cameras1
Number of effective pixels (H x V)5.12 x 3.84
Number of languages9
Number of lenses1
Number of Privacy masking areas8
Number of sensors1
Number of users14
Observe distance22.5
Operating relative humidity (H-H)10 - 90
Operating temperature (T-T)-10 - 50
Optical sensor size1/2.8
Optical zoom3
Placement supportedIndoor
Power consumption (Power over Ethernet (PoE))10.6
Power consumption (typical)10.6
Power source typeDC,PoE
Privacy protectionYes
Product colourBlack/White
Protection featuresShock resistant/Vandal proof
Recognize distance11.3
Sensor typeCMOS
Summaryi-PRO WV-S22500-F3L. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Product colour: Black, White, Form factor: Dome, Housing material: Aluminium, Polycarbonate (PC), Stainless steel. Minimum illumination: 0.1 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 95°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"), Number of effective pixels (H x V): 5.12 x 3.84 pixels. Optical zoom: 3x, Detect distance: 56.3 m, Observe distance: 22.5 m
Supported graphics resolutions1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2560 x 1440/2560 x 1920/320 x 180/320 x 240/400 x 300/640 x 360/800 x 600 (SVGA)
Supported network protocolsIPv6: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, SFTP, MQTT, LLDP IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP,
Terminal block portYes
Text caption overlayYes
Tilt angle range-30 - 85
Total megapixels5
TypeIP security camera
Video formats supportedH.264/H.265
Video intelligence analyticYes
Web browserYes
Weight800
White balanceATW/AWC
Width129.5
Zoom capabilityYes
Specs
Category CodeFNC
Description

S-series High resolution Network camera with AI engine

Equipped with an AI processor, it can run up to three AI analytics applications (AI apps) simultaneously, which significantly improve the detection rate of people and vehicles and can be used in a wide range of surveillance scenes. It realizes high-quality and clearer images even in low-light and wide-range shooting scenes.

Up to 3 AI apps can be operated at the same time from the wide variety.

Using AI processor which identifies object as people or vehicle, it will reduce false alarm compared to conventional model. As result, it can be used many industries.

High image quality / High compression

Our original smart coding technology compatible with H.264 and H.265 delivers high-resolution video at high image quality and low bit rate. Achieved useful images by combining with highly visible images by the intelligent auto (iA) function.

Easy setting and installation

- Easy Kitting Package enabling installers to configure cameras easily while keeping the unit in the box.
- The grommet on the outdoor model can reduce the time and effort required for installation.
- User-friendly GUI (setting while watching Live view, etc.) allows you to set comfortably.
- iCT tool allows you to set multiple cameras, apps, and recorders all at once, reducing the camera setting time.

High security standard

- Highest level of security. In addition to digital certificates issued by a third-party organization (GlobalSign),
- FIPS 140-2 Level 3 certified EdgeLock SE050F secure element (NXP Semiconductors) is embeded.






  • 5MP
  • Intelligent Auto (with AI Engine)
  • Super Dynamic 132dB
  • Color night vision (0.12 to 0.17 lx)
  • Smart Coding (with AI Engine)
  • Built-in IR LED
  • IK10 Vandal Resistant
  • Built-in FIPS 140-2 Level 3 Certified Secure Element (EdgeLock SE050F NXP Semiconductors)
  • NDAA Compliant
