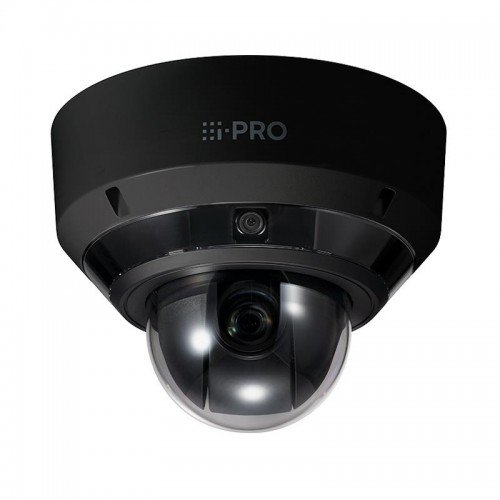

NET CAMERA 5MP DOME AI OUTDOOR/MULTI WV-X86530-Z2-1 I-PRO

Technical Specifications

• Summary: i-PRO WV-X86530-Z2-1. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, Form factor: Dome. Lens viewing angle, horizontal: 3.7 - 77°, Lens viewing angle, vertical: 2.2 - 44°, Tilt angle range: -15 - 195°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 21x, Focal length range: 4 - 84.6 mm, Focus: Motorized
• Vendor Homepage: https://i-pro.com/products_and_solutions/en/surveillance/products/wv-x86530-z2-1
• Name: NET CAMERA 5MP DOME AI OUTDOOR/MULTI WV-X86530-Z2-1 I-PRO
• Category Code: FNC
• Form factor: Dome
• Mounting type: Ceiling
• Product colour: Black
• Housing material: Aluminium/Polycarbonate (PC)
• Protection features: Dust resistant/Water resistant
• International Protection (IP) code: IP66, IP67
• IK code: IK10
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Indoor
• PTZ control: Yes
• PTZ modes: Preset sequence
• Auto-tracking: Yes
• Auto pan mode: Yes
• Auto patrol mode: Yes
• Alarm input/output: Yes
• Dynamic range: 144
• Languages support: English/French/German/Italian/Japanese/Portuguese/Russian/Spanish
• Lens viewing angle, horizontal: 3.7 - 77
• Lens viewing angle, vertical: 2.2 - 44
• Tilt angle range: -15 - 195
• Tilt manual speed: 0.065 - 150
• Tilt preset speed: 500
• Pan range: 0 - 360
• Pan manual speed: 0.065 - 150
• Pan preset speed: 500
• White balance: AWC
• Camera shutter speed: 1/4000 - 30
• Number of sensors: 1
• Optical sensor size: 1/2.8
• Sensor type: CMOS
• Zoom capability: Yes
• Optical zoom: 21
• Focal length range: 4 - 84.6
• Auto focus: Yes
• Focus: Motorized
• Detect distance (tele): 1188.9
• Detect distance (wide): 48.3
• Identify distance (tele): 118.9
• Identify distance (wide): 4.8
• Observe distance (tele): 475.5
• Observe distance (wide): 19.3
• Recognize distance (tele): 237.8
• Recognize distance (wide): 9.7
• Maximum resolution: 1920 x 1080
• Total megapixels: 2
• Video formats supported: H.264/H.265/M-JPEG
• Supported graphics resolutions: 1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/320 x 180/640 x 360
• Frame rate: 60
• Back Light Compensation (BLC): Yes
• Highlight Compensation (HLC): Yes
• Image quality adjustment: Brightness
• Privacy masking: Yes
• Audio formats supported: AAC-LC/G.711/G.726
• Ethernet LAN: Yes
• Networking standards: IEEE 802.3bt
• Supported network protocols: IPv6TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X *5, DiffServ, LLDP, MQTT
• Number of users: 24
• Card reader integrated: Yes
• Compatible memory cards: MicroSDXC
• Maximum memory card size: 512
• Ethernet LAN (RJ-45) ports: 1
• Microphone in: Yes
• Video motion detection: Yes
• Web browser: Yes
• Power source type: DC,PoE
• DC output voltage: 54
• DC output current: 0.66
• Operating temperature (T-T): -40 - 55
• Operating relative humidity (H-H): 10 - 100
• Mobile operating systems supported: Android/iOS
• Height: 195
• Diameter: 250
• Weight: 3800
• Number of cameras: 1
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.012
• Unit Calculated Weight: 4.2
