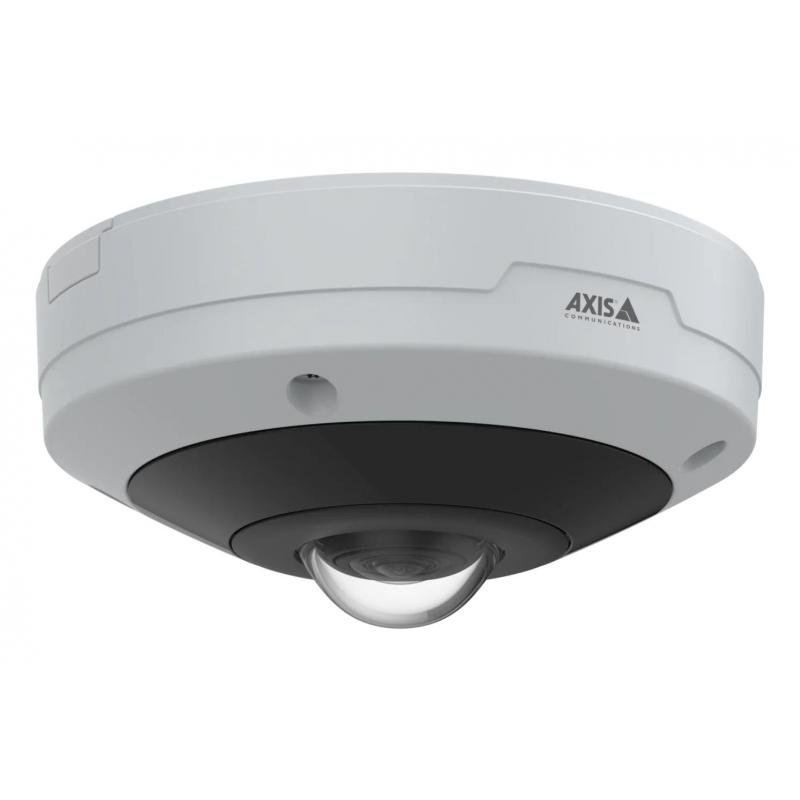

NET CAMERA FISHEYE DOME/M4348-PLVE 03133-001 AXIS

NET CAMERA FISHEYE DOME/M4348-PLVE 03133-001 AXIS
NET CAMERA FISHEYE DOME/M4348-PLVE 03133-001 AXIS
  • Connectivity technology: Wired
  • Maximum resolution: 3536 x 3536
  • Total megapixels: 12
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
74,276ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 464606
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis M4348-PLVE. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Lens viewing angle, horizontal: 185°, Lens viewing angle, vertical: 185°, Camera pixel size: 2 µm. Sensor type: CMOS, Optical sensor size: 25.4 / 1.6 mm (1 / 1.6"). Fixed focal length: 1.7 mm, Closest focusing distance: 0.1 m
  • Vendor Homepage: https://www.axis.com/products/axis-m4348-plve
  • Name: NET CAMERA FISHEYE DOME/M4348-PLVE 03133-001 AXIS
  • Category Code: FNC
  • Form factor: Dome
  • Mounting type: Ceiling/wall
  • Product colour: White
  • Housing material: Aluminium/Polycarbonate (PC)
  • International Protection (IP) code: IP66
  • IK code: IK10
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Indoor & outdoor
  • PTZ control: Yes
  • PTZ modes: Digital PTZ/Preset point
  • Preset points: Yes
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Infrared (IR) cut-off filter: Yes
  • Processor model: ARTPEC-9
  • Dynamic range: 120
  • Languages support: Czech/Dutch/English/Finnish/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Swedish/Thai/Traditional Chinese/Turkish/Vietnamese
  • Number of languages: 19
  • Minimum illumination: 0
  • Lens viewing angle, horizontal: 185
  • Lens viewing angle, vertical: 185
  • Camera pixel size: 2
  • Camera shutter speed: 1/111000 - 2
  • Number of sensors: 1
  • Optical sensor size: 1/1.6
  • Progressive scan: Yes
  • Sensor type: CMOS
  • Number of lenses: 1
  • Maximum aperture number: 2
  • Closest focusing distance: 0.1
  • Fixed focal length: 1.7
  • Night vision: Yes
  • Night vision distance: 20
  • LED type: IR
  • Infra-red wavelength: 850
  • Maximum resolution: 3536 x 3536
  • Total megapixels: 12
  • Video compression formats: AV1/H.264/H.265/M-JPEG/MPEG4
  • Frame rate: 30
  • Video streaming: Yes
  • Gain control type: Auto
  • Bit rate control: Variable Bit Rate (VBR)
  • Image quality adjustment: Brightness/Contrast/Mirror/Saturation/White balance
  • Privacy masking: Yes
  • Built-in speaker(s): Yes
  • Audio formats supported: AAC/AAC-LC/G.711/G.726/LPCM/OPUS
  • Signal-to-Noise Ratio (SNR): 55
  • Built-in microphone: Yes
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet/Gigabit Ethernet
  • Networking standards: IEEE 802.1AE/IEEE 802.1x/IEEE 802.3at
  • Supported network protocols: Pv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, PTP, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Flash memory: 8000
  • Internal memory: 4000
  • Ethernet LAN (RJ-45) ports: 1
  • Terminal block port: Yes
  • Privacy protection: Yes
  • Security algorithms: 802.1x RADIUS/AES/EAP-TLS/FIPS 140-2/FIPS 140-3/HTTPS/MSCHAPv2/PEAP/TLS
  • Web-based management: Yes
  • Cloud-managed: Yes
  • Power source type: PoE,DC
  • Power consumption (typical): 7.1
  • Power consumption (max): 16.7
  • Operating temperature (T-T): -40 - 50
  • Storage temperature (T-T): -40 - 65
  • Operating relative humidity (H-H): 10 - 100
  • Storage relative humidity (H-H): 5 - 95
  • Height: 70
  • Diameter: 149
  • Weight: 880
  • Compliance certificates: CE/cUL/Electromagnetic Compatibility (EMC)/Federal Communications Commission (FCC)/ICES/KC/RCM/REACH/RoHS/UL/VCCI
  • Number of cameras: 1
  • Doesnt contain: Brominated Flame Retardant (BFR)/CFR/PVC
  • Iris: Yes
  • Units per Pallet: 0
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.002743
  • Unit Calculated Weight: 1.07
Specifications
Audio formats supportedAAC/AAC-LC/G.711/G.726/LPCM/OPUS
Bit rate controlVariable Bit Rate (VBR)
Built-in microphoneYes
Built-in speaker(s)Yes
Camera pixel size2
Camera shutter speed1/111000 - 2
Card reader integratedYes
Closest focusing distance0.1
Cloud-managedYes
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Compliance certificatesCE/cUL/Electromagnetic Compatibility (EMC)/Federal Communications Commission (FCC)/ICES/KC/RCM/REACH/RoHS/UL/VCCI
Connectivity technologyWired
Day/night modeYes
Diameter149
Doesn\'t containBrominated Flame Retardant (BFR)/CFR/PVC
Dynamic range120
Ethernet interface typeFast Ethernet/Gigabit Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Fixed focal length1.7
Flash memory8000
Form factorDome
Frame rate30
Gain control typeAuto
Height70
Housing materialAluminium/Polycarbonate (PC)
IK codeIK10
Image quality adjustmentBrightness/Contrast/Mirror/Saturation/White balance
Infra-red wavelength850
Infrared (IR) cut-off filterYes
Internal memory4000
International Protection (IP) codeIP66
IrisYes
Languages supportCzech/Dutch/English/Finnish/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Swedish/Thai/Traditional Chinese/Turkish/Vietnamese
LED typeIR
Lens viewing angle, horizontal185
Lens viewing angle, vertical185
Maximum aperture number2
Maximum resolution3536 x 3536
Minimum illumination0
Mounting typeCeiling/wall
Networking standardsIEEE 802.1AE/IEEE 802.1x/IEEE 802.3at
Night visionYes
Night vision distance20
Number of cameras1
Number of languages19
Number of lenses1
Number of sensors1
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-40 - 50
Optical sensor size1/1.6
Placement supportedIndoor & outdoor
Power consumption (max)16.7
Power consumption (typical)7.1
Power source typePoE,DC
Preset pointsYes
Privacy maskingYes
Privacy protectionYes
Processor modelARTPEC-9
Product colourWhite
Progressive scanYes
PTZ controlYes
PTZ modesDigital PTZ/Preset point
Security algorithms802.1x RADIUS/AES/EAP-TLS/FIPS 140-2/FIPS 140-3/HTTPS/MSCHAPv2/PEAP/TLS
Sensor typeCMOS
Signal-to-Noise Ratio (SNR)55
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-40 - 65
SummaryAxis M4348-PLVE. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Lens viewing angle, horizontal: 185°, Lens viewing angle, vertical: 185°, Camera pixel size: 2 µm. Sensor type: CMOS, Optical sensor size: 25.4 / 1.6 mm (1 / 1.6"). Fixed focal length: 1.7 mm, Closest focusing distance: 0.1 m
Supported network protocolsPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, PTP, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v
Terminal block portYes
Total megapixels12
TypeIP security camera
Video compression formatsAV1/H.264/H.265/M-JPEG/MPEG4
Video streamingYes
Web-based managementYes
Weight880
Wide Dynamic Range (WDR)Yes
Specs
Category CodeFNC
Description

This AI-powered camera uses the latest sensor technology to provide high-quality image resolution 24/7. It includes camera-side dewarped views. And with AXIS Audio Analytics, you’ll know whenever something relevant happens, even when there's no visual indication.

Sharp images with great details
Using the latest sensor technology, AXIS M4348-PLVE offers 30% higher resolution than previous generations, reaching up to 3536x3536 pixels. Stereographic lens and Sharpdome 360 deliver outstanding image sharpness towards the edges and excellent corner image quality. It offers complete 180° or 360° coverage with no blind spots. Day/night functionality and built-in IR illumination ensure clear, reflection-free footage and excellent images even in low light or complete darkness. It supports up to four digital PTZ views, as well as panoramic, quad, corner, and corridor dewarped views. Furthermore, Axis Zipstream with AV1, H.264, and H.265 significantly reduces bandwidth and storage requirements.

Powerful video and audio analytics
This AI-based camera comes with AXIS Object Analytics preinstalled to detect, classify, track, and count objects. Now combined with ARTPEC-9, this application offers enhanced performance with greater accuracy. Plus, AI models are specifically trained for 360° fisheye views to ensure optimized performance. With built-in microphones and AXIS Audio Analytics preinstalled, it can detect critical sounds such as glass breaking, screams, and shouts, and measure noise pollution. Plus, directional audio detection provides the direction of the audio source and a visual overlay showing exactly where the sound is coming from.

Secure and easy- indoors and out
AXIS M4348-PLVE includes Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and offers FIPS 140-3 Level 3 certified secure key storage and operations. With digital roll functionality, you can remotely adjust the rotation of the camera overview– no need to do it manually on each camera. It’s also delivered factory-focused for ease of installation. And it’s discreet, compact, flat design blends seamlessly into any environment. What’s more, this robust, IK10-, IP66-, and NEMA 4X-rated outdoor-ready camera is both vandal- and impact-resistant and has an operating temperature range from -40°C to 50 °C (-40°F to 122°F).

  • Latest sensor technology with 12 MP resolution
  • Camera-side dewarped views
  • Built-in IR with individual IR LEDs
  • Next-generation video and audio analytics
  • Built-in cybersecurity with Axis Edge Vault
