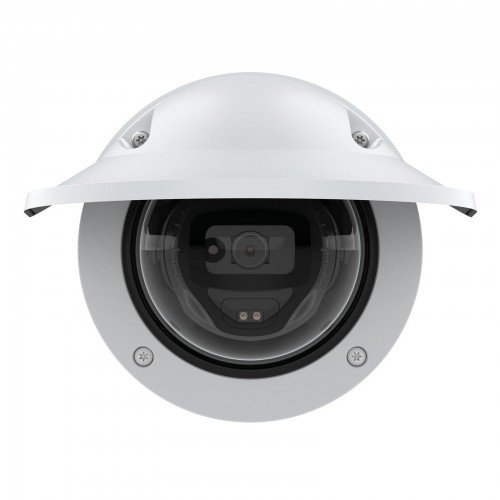

NET CAMERA M3215-LVE DOME/02371-001 AXIS

Technical Specifications

• Summary: Axis 02371-001. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.14 lx, Angle of rotation: 190°, Lens viewing angle, horizontal: 101°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Closest focusing distance: 1 m
• Vendor Homepage: https://www.axis.com/products/axis-m3215-lve
• Name: NET CAMERA M3215-LVE DOME/02371-001 AXIS
• Category Code: FNC
• Model: M3215-LVE
• Form factor: Dome
• Mounting type: Ceiling/wall
• Product colour: White
• Housing material: Plastic/Polycarbonate (PC)
• International Protection (IP) code: IP66
• IK code: IK10
• Fog proof: Yes
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Indoor & outdoor
• PTZ control: Yes
• Wide Dynamic Range (WDR): Yes
• Day/night mode: Yes
• Camera pan control: Yes
• Minimum illumination: 0.14
• Angle of rotation: 190
• Lens viewing angle, horizontal: 101
• Lens viewing angle, vertical: 55
• Tilt angle range: -10 - 80
• Pan range: 0 - 190
• Camera shutter speed: 1/37000 - 2
• Optical sensor size: 1/2.9
• Progressive scan: Yes
• Sensor type: CMOS
• Zoom capability: Yes
• Maximum aperture number: 2
• Closest focusing distance: 1
• Night vision: Yes
• LED type: IR
• Maximum resolution: 1920 x 1080
• Video compression formats: H.264/H.265
• Frame rate: 30
• Video streaming: Yes
• Ethernet LAN: Yes
• Ethernet interface type: Fast Ethernet
• Networking standards: IEEE 802.1x
• Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa, HTTP/2, TLSa, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SOCKS,
• Card reader integrated: Yes
• Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
• Flash memory: 8192
• Internal memory: 1024
• Ethernet LAN (RJ-45) ports: 1
• Microphone in: Yes
• HTTPS encryption: Yes
• Security algorithms: EAP-TLS/HTTPS
• Power source type: PoE
• Power consumption (Power over Ethernet (PoE)): 4.8
• Operating temperature (T-T): -40 - 50
• Storage temperature (T-T): -40 - 65
• Operating relative humidity (H-H): 10 - 100
• Storage relative humidity (H-H): 5 - 95
• Height: 102
• Diameter: 149
• Weight: 783
• Number of cameras: 1
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.009
• Unit Calculated Weight: 1
