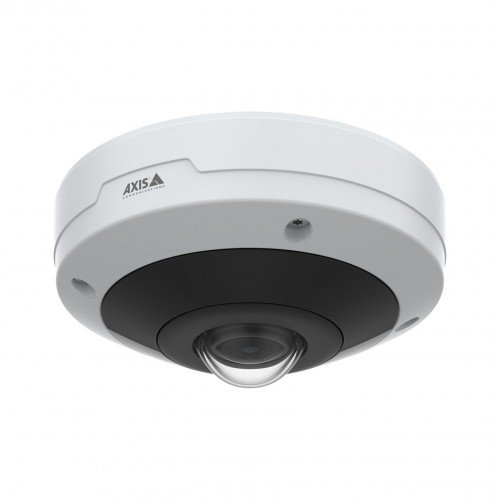

NET CAMERA M4318-PLVE DOME/02511-001 AXIS

Technical Specifications

• Summary: Axis M4318-PLVE. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.04 lx, Lens viewing angle, horizontal: 182°, Lens viewing angle, vertical: 182°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.3 mm (1 / 2.3"). Fixed focal length: 2.2 mm
• Vendor Homepage: https://www.axis.com/products/axis-m4318-plve
• Name: NET CAMERA M4318-PLVE DOME/02511-001 AXIS
• Category Code: FNC
• Model: M4318-PLVE
• Form factor: Dome
• Mounting type: Ceiling/wall
• Product colour: Black/White
• LED indicators: Yes
• Housing material: Aluminium/Polycarbonate (PC)
• International Protection (IP) code: IP66
• IK code: IK10
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Indoor
• PTZ control: Yes
• PTZ modes: Digital PTZ/Preset point
• Wide Dynamic Range (WDR): Yes
• Day/night mode: Yes
• Infrared (IR) cut-off filter: Yes
• Languages support: Czech/Dutch/English/Finnish/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Swedish/Thai/Traditional Chinese/Turkish/Vietnamese
• Number of languages: 20
• Certification: CSA, UL/cUL, BIS, UKCA, CE, KC 55035, EN 55032 Class A, EN 50121-4, EN 61000-6-1, EN 61000-6-2, EN 61547 Australia/New Zealand: RCM AS/NZS CISPR 32 Class A Canada: ICES-3(A)/NMB-3(A) Japan: VCCI Class A Korea: KS C 9835, KS C 9832 Class A USA: FCC Part
• Minimum illumination: 0.04
• Lens viewing angle, horizontal: 182
• Lens viewing angle, vertical: 182
• Camera shutter speed: 1/8100 - 1/2
• Number of sensors: 1
• Optical sensor size: 1/2.3
• Progressive scan: Yes
• Sensor type: CMOS
• Number of lenses: 1
• Fixed focus: Yes
• Fixed focal length: 2.2
• Night vision: Yes
• Night vision distance: 15
• LED type: IR
• Infra-red wavelength: 850
• Maximum resolution: 2992 x 2992
• Total megapixels: 12
• Supported graphics resolutions: 2048 x 1536 (QXGA)/256 x 144/2560 x 1920/2880 x 2880/384 x 288/3840 x 2160
• Frame rate: 30
• Video streaming: Yes
• Noise reduction: Yes
• Noise reduction technology: 2D noise reduction,3D noise reduction
• Bit rate control: Variable Bit Rate (VBR)
• Image quality adjustment: Brightness/Contrast/Saturation/Sharpness
• Text caption overlay: Yes
• Audio system: 2-way
• Ethernet LAN: Yes
• Ethernet interface type: Fast Ethernet
• Networking standards: IEEE 802.3af/IEEE 802.3at
• Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SSH, LL
• Quality of Service (QoS) support: Yes
• Streaming method: Multicast
• Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
• Flash memory: 8192
• Internal memory: 2048
• Ethernet LAN (RJ-45) ports: 1
• Password protection: Yes
• Active tampering alarm: Yes
• Alert notification type: E-mail
• Digest authentication: Yes
• HTTPS encryption: Yes
• Human and vehicle targets classification: Yes
• IP address filtering: Yes
• Pixel counter: Yes
• Privacy protection: Yes
• Security algorithms: 256-bit AES-XTS/EAP-TLS/TLS
• Video motion detection: Yes
• Behavior analysis: Line crossing detection
• Power source type: PoE
• Power consumption (typical): 6.4
• Power consumption (max): 12.95
• Operating temperature (T-T): -40 - 50
• Storage temperature (T-T): -40 - 65
• Operating relative humidity (H-H): 10 - 100
• Storage relative humidity (H-H): 5 - 95
• Width: 149
• Depth: 149
• Height: 70
• Weight: 860
• Compliance certificates: RoHS
• Number of cameras: 1
• Manual: Yes
• Doesnt contain: PVC/BFR
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.00297
• Unit Calculated Weight: 1
