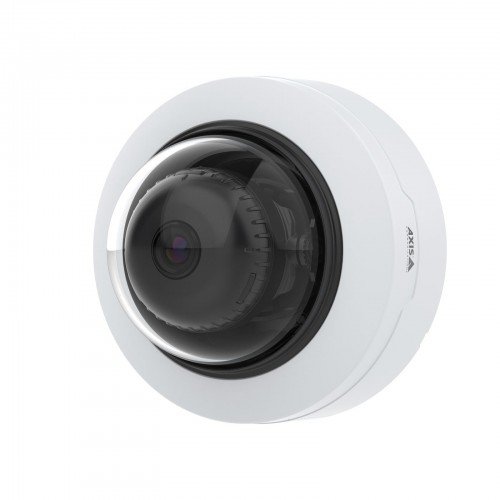

NET CAMERA P3265-V DOME/02326-001 AXIS

Technical Specifications

• Summary: Axis 02326-001. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.1 lx, Angle of rotation: 175°, Tilt angle range: -75 - 75°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Focal length range: 3.4 – 8.9, Normal focusing range: 0.5 m
• Vendor Homepage: https://www.axis.com/products/axis-p3265-v
• Name: NET CAMERA P3265-V DOME/02326-001 AXIS
• Category Code: FNC
• Model: P3265-V
• Form factor: Dome
• Mounting type: Ceiling/wall
• Product colour: White
• Housing material: Polycarbonate (PC)
• International Protection (IP) code: IP52
• IK code: IK10
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Indoor & outdoor
• PTZ control: Yes
• PTZ modes: Digital PTZ
• Wide Dynamic Range (WDR): Yes
• Day/night mode: Yes
• Languages support: English/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese
• Number of languages: 12
• Certification: EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A
• Camera pan control: Yes
• Camera tilt control: Yes
• Minimum illumination: 0.1
• Angle of rotation: 175
• Tilt angle range: -75 - 75
• Pan range: -180 - 180
• Camera shutter speed: 1/66500 - 2
• Number of sensors: 1
• Optical sensor size: 1/2.8
• Progressive scan: Yes
• Sensor type: CMOS
• Zoom capability: Yes
• Number of lenses: 1
• Focal length range: 3.4 - 8.9
• Normal focusing range: 0.5
• Night vision: Yes
• LED type: IR
• Maximum resolution: 1920 x 1080
• Total megapixels: 2
• Video compression formats: H.264/H.265
• Video recording: Yes
• Frame rate: 60
• Video streaming: Yes
• Gain control type: Auto
• Bit rate: Configurable bit rate
• Bit rate control: Variable Bit Rate (VBR)
• Privacy masking: Yes
• Smart IR: Yes
• Text caption overlay: Yes
• Audio system: 2-way
• Audio system full duplex: Yes
• Audio detection: Yes
• Ethernet LAN: Yes
• Networking standards: IEEE 802.3af/IEEE 802.3at
• Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH, SIP,
• Quality of Service (QoS) support: Yes
• Card reader integrated: Yes
• Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
• Flash memory: 8192
• Internal memory: 1024
• Ethernet LAN (RJ-45) ports: 1
• Terminal block port: Yes
• Password protection: Yes
• Active tampering alarm: Yes
• Alert notification type: E-mail
• Digest authentication: Yes
• HTTPS encryption: Yes
• IP address filtering: Yes
• Pixel counter: Yes
• Security algorithms: 802.1x RADIUS
• Video motion detection: Yes
• Power source type: PoE
• Power consumption (typical): 3
• Power consumption (max): 5.1
• Operating temperature (T-T): 0 - 50
• Storage temperature (T-T): -40 - 65
• Operating relative humidity (H-H): 10 - 85
• Storage relative humidity (H-H): 5 - 95
• Height: 103
• Diameter: 149
• Weight: 650
• Number of cameras: 1
• Mounting kit: Yes
• Mounting brackets included: Yes
• Drilling template included: Yes
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.00392
• Unit Calculated Weight: 0.9
