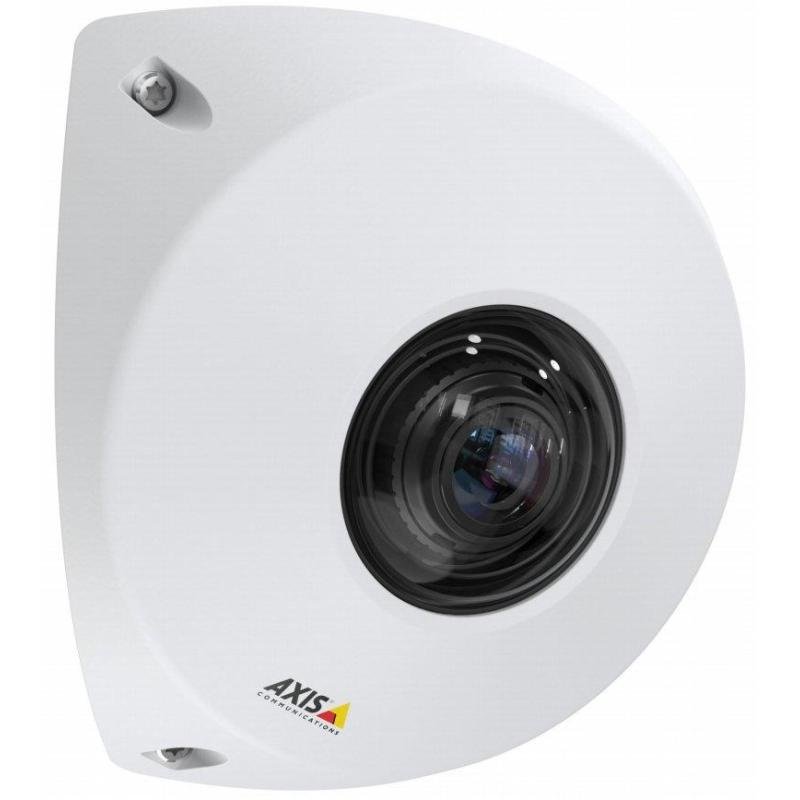

NET CAMERA P9106-V 3MP/01620-001 AXIS

NET CAMERA P9106-V 3MP/01620-001 AXIS
NET CAMERA P9106-V 3MP/01620-001 AXIS
  • Connectivity technology: Wired
  • Maximum resolution: 2016 x 1512
  • Total megapixels: 3
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
45,381ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 339516
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis 01620-001. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Housing material: Aluminium, Zinc. Minimum illumination: 0.34 lx, Lens viewing angle, horizontal: 130°, Lens viewing angle, vertical: 95°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Fixed focal length: 1.8 mm
  • Vendor Homepage: https://www.axis.com/en-nz/products/axis-p91-series
  • Name: NET CAMERA P9106-V 3MP/01620-001 AXIS
  • Category Code: FNC
  • Mounting type: Ceiling/wall
  • Product colour: Black/White
  • Housing material: Aluminium/Zinc
  • Protection features: Dust resistant/Waterproof
  • International Protection (IP) code: IP66
  • IK code: IK10
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Indoor
  • PTZ control: Yes
  • PTZ modes: Digital PTZ
  • Wide Dynamic Range (WDR): Yes
  • Languages support: English/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese
  • Number of languages: 12
  • Certification: EN 55032 Class A, EN 55024, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class B, KC KN35, IEC/EN/UL 60950-1, IEC/EN 60529 IP66, IEC/EN 62262 Class IK10, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, I
  • Minimum illumination: 0.34
  • Lens viewing angle, horizontal: 130
  • Lens viewing angle, vertical: 95
  • Tilt angle range: -5 - 5
  • Camera shutter speed: 1/32500 - 1/5
  • Number of sensors: 1
  • Optical sensor size: 1/3
  • Progressive scan: Yes
  • Sensor type: CMOS
  • Fixed focus: Yes
  • Maximum aperture number: 2.4
  • Fixed focal length: 1.8
  • Maximum resolution: 2016 x 1512
  • Total megapixels: 3
  • Video compression formats: AVC/M-JPEG/MPEG4
  • Supported graphics resolutions: 1920 x 1080 (HD 1080)/320 x 240/640 x 360
  • Frame rate: 30
  • Video streaming: Yes
  • Bit rate control: Variable Bit Rate (VBR)
  • Image quality adjustment: Brightness/Contrast/Saturation/Sharpness
  • Privacy masking: Yes
  • Text caption overlay: Yes
  • Ethernet LAN: Yes
  • Networking standards: IEEE 802.3af/IEEE 802.3at
  • Supported network protocols: IPv4, IPv6 USGv6, HTTP, HTTPS , SSL/TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP
  • Cabling technology: 10/100Base-T(X)
  • Quality of Service (QoS) support: Yes
  • Streaming method: Multicast
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Flash memory: 256
  • Ethernet LAN (RJ-45) ports: 1
  • Password protection: Yes
  • Active tampering alarm: Yes
  • HTTPS encryption: Yes
  • IP address filtering: Yes
  • Video motion detection: Yes
  • Power source type: PoE
  • Power consumption (typical): 2.8
  • Power consumption (max): 3.2
  • Operating temperature (T-T): -15 - 50
  • Storage temperature (T-T): -40 - 65
  • Operating relative humidity (H-H): 15 - 85
  • Width: 146
  • Depth: 122
  • Height: 92
  • Weight: 655
  • Number of cameras: 1
  • Quick installation guide: Yes
  • Harmonized System (HS) code: 85258900
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.007049
  • Unit Calculated Weight: 1.2
Specifications
Active tampering alarmYes
Bit rate controlVariable Bit Rate (VBR)
Cabling technology10/100Base-T(X)
Camera shutter speed1/32500 - 1/5
Card reader integratedYes
CertificationEN 55032 Class A, EN 55024, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class B, KC KN35, IEC/EN/UL 60950-1, IEC/EN 60529 IP66, IEC/EN 62262 Class IK10, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, I
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Connectivity technologyWired
Depth122
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Fixed focal length1.8
Fixed focusYes
Flash memory256
Frame rate30
Harmonized System (HS) code85258900
Height92
Housing materialAluminium/Zinc
HTTPS encryptionYes
IK codeIK10
Image quality adjustmentBrightness/Contrast/Saturation/Sharpness
International Protection (IP) codeIP66
IP address filteringYes
Languages supportEnglish/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese
Lens viewing angle, horizontal130
Lens viewing angle, vertical95
Maximum aperture number2.4
Maximum resolution2016 x 1512
Minimum illumination0.34
Mounting typeCeiling/wall
Networking standardsIEEE 802.3af/IEEE 802.3at
Number of cameras1
Number of languages12
Number of sensors1
Operating relative humidity (H-H)15 - 85
Operating temperature (T-T)-15 - 50
Optical sensor size1/3
Password protectionYes
Placement supportedIndoor
Power consumption (max)3.2
Power consumption (typical)2.8
Power source typePoE
Privacy maskingYes
Product colourBlack/White
Progressive scanYes
Protection featuresDust resistant/Waterproof
PTZ controlYes
PTZ modesDigital PTZ
Quality of Service (QoS) supportYes
Quick installation guideYes
Sensor typeCMOS
Storage temperature (T-T)-40 - 65
Streaming methodMulticast
SummaryAxis 01620-001. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Housing material: Aluminium, Zinc. Minimum illumination: 0.34 lx, Lens viewing angle, horizontal: 130°, Lens viewing angle, vertical: 95°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Fixed focal length: 1.8 mm
Supported graphics resolutions1920 x 1080 (HD 1080)/320 x 240/640 x 360
Supported network protocolsIPv4, IPv6 USGv6, HTTP, HTTPS , SSL/TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP
Text caption overlayYes
Tilt angle range-5 - 5
Total megapixels3
TypeIP security camera
Video compression formatsAVC/M-JPEG/MPEG4
Video motion detectionYes
Video streamingYes
Weight655
Wide Dynamic Range (WDR)Yes
Width146
Specs
Category CodeFNC
Description

AXIS P9106-V Network Camera provides out-of-the-box optimized corner-to-corner coverage in 3 MP without any blind spots. It is enclosed in a vandal-resistant (IK10) and dust- and waterproof (IP66) casing. The abrasion- and chemical-resistant front window is easy to clean or replace, for efficient maintenance. AXIS P9106-V Network Camera is available in two variants: a brushed steel model with no visible screws which blends in with elegant spaces, such as elevators and commercial interiors, and a white model designed to be anti-ligature and anti-grip, ideal for classrooms, waiting rooms, and observation rooms in mental healthcare or custody cells.

  • Compatible with PoE over 2-wire devices for elevator installations; Elegant and compact design in brushed steel or white finishes; Out-of-the-box optimized field of view in 3 MP resolution – no blind spots; Support for Portcast devices such as AXIS T61 Series for two-way audio; Vandal-resistant (IK10) and IP66-rated dust protection

NameNET CAMERA P9106-V 3MP/01620-001 AXIS
PictureUrlhttps://static.elko.cloud/ProductImages/8167f5af-40de-43a7-95ea-ba3c10686f6e.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/8167f5af-40de-43a7-95ea-ba3c10686f6e.Jpeg
Unit Calculated Volume0.007049
Unit Calculated Weight1.2
Units per Shipping Box1
Vendor Homepagehttps://www.axis.com/en-nz/products/axis-p91-series
