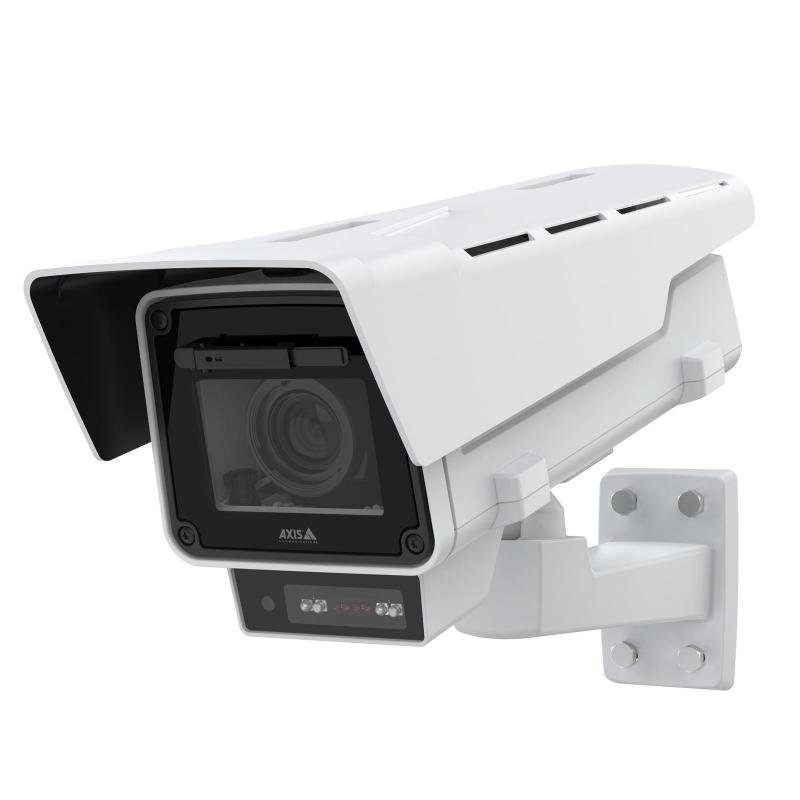

NET CAMERA Q1656-LE 4MP BOX/02168-001 AXIS

Technical Specifications

• Summary: Axis 02168-001. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Box. Minimum illumination: 0.05 lx, Camera shutter speed: 1/47500 - 1 s. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Optical zoom: 2.5x, Focal length range: 3.9 - 10 mm, Normal focusing range: 0.5 m
• Vendor Homepage: https://www.axis.com/products/axis-q1656-le#part-numbers
• Name: NET CAMERA Q1656-LE 4MP BOX/02168-001 AXIS
• Category Code: FNC
• Model: Q1656-LE
• Form factor: Box
• Mounting type: Ceiling/wall
• Product colour: White
• LED indicators: Yes
• International Protection (IP) code: IP66, IP67
• IK code: IK10
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Outdoor
• PTZ modes: Digital PTZ
• PTZ protocols: Pelco-D
• Wide Dynamic Range (WDR): Yes
• Day/night mode: Yes
• Infrared (IR) cut-off filter: Yes
• Languages support: English/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese
• Number of languages: 12
• Certification: CISPR 24, CISPR 35, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(B)/NMB-3(B), EN 50121-4, IEC 62236-4, KS C 9832 Class A, KS C 9815, KS C 9835, KS C 9547, RCM AS/NZS CISPR 32 Cla
• Camera pan control: Yes
• Minimum illumination: 0.05
• Camera shutter speed: 1/47500 - 1
• Number of sensors: 1
• Optical sensor size: 1/1.8
• Progressive scan: Yes
• Sensor type: CMOS
• Zoom capability: Yes
• Optical zoom: 2.5
• Number of lenses: 1
• Focal length range: 3.9 - 10
• Auto focus: Yes
• Normal focusing range: 0.5
• Night vision: Yes
• Night vision distance: 50
• LED type: IR
• Infra-red wavelength: 850
• Maximum resolution: 2688 x 1512
• Total megapixels: 4
• Video compression formats: H.264/H.265
• Video recording: Yes
• Frame rate: 60
• Video streaming: Yes
• Noise reduction: Yes
• Gain control type: Auto
• Bit rate: Configurable bit rate
• Flip & mirror: Yes
• Privacy masking: Yes
• Text caption overlay: Yes
• Audio system full duplex: Yes
• Audio formats supported: AAC-LC/ADPCM/G.711/G.726/LPCM/OPUS/PCM
• Audio detection: Yes
• Ethernet LAN: Yes
• Networking standards: IEEE 802.1x/IEEE 802.3af/IEEE 802.3at
• Supported network protocols: IPv4, IPv6 USGv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, LLDP, MQTT v3.1.1
• Quality of Service (QoS) support: Yes
• Card reader integrated: Yes
• Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC/SD
• Flash memory: 8194
• Internal memory: 2048
• Ethernet LAN (RJ-45) ports: 1
• Terminal block port: Yes
• Password protection: Yes
• Alert notification type: E-mail,Text alert message
• HTTPS encryption: Yes
• IP address filtering: Yes
• Security algorithms: EAP-TLS
• Video motion detection: Yes
• Power source type: PoE
• Power consumption (typical): 11.8
• Power consumption (max): 25.5
• Operating temperature (T-T): -40 - 60
• Storage temperature (T-T): -40 - 65
• Operating relative humidity (H-H): 10 - 100
• Storage relative humidity (H-H): 5 - 95
• Windows operating systems supported: Yes
• Width: 404
• Depth: 159
• Height: 182
• Weight: 4400
• Number of cameras: 1
• Doesnt contain: BFR/PVC
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.02705
• Unit Calculated Weight: 5
