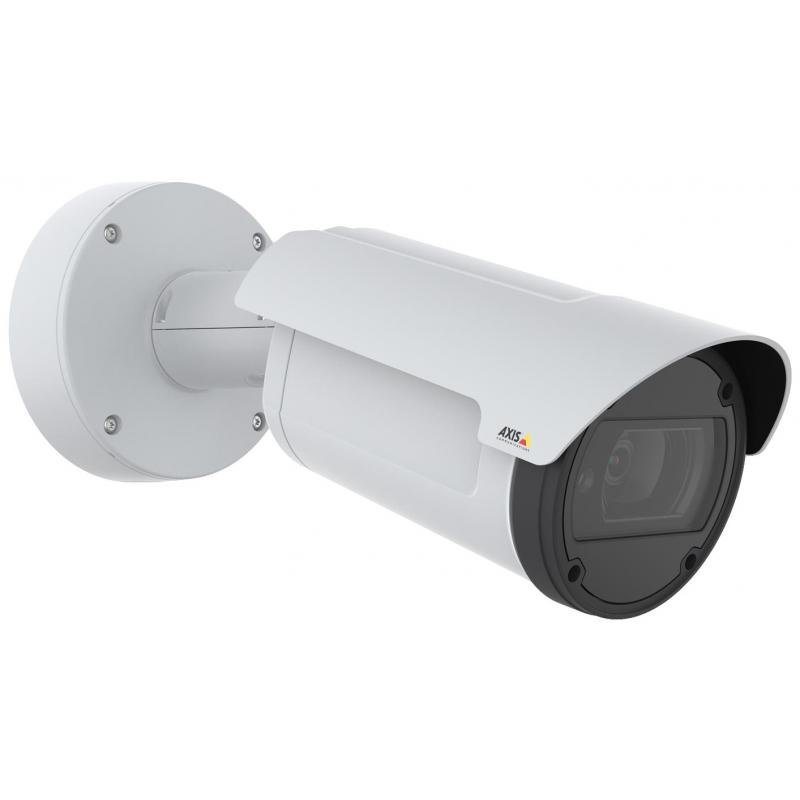

NET CAMERA Q1798-LE BULLET/01702-001 AXIS

NET CAMERA Q1798-LE BULLET/01702-001 AXIS
NET CAMERA Q1798-LE BULLET/01702-001 AXIS
  • Connectivity technology: Wired
  • Maximum resolution: 3712 x 2784
  • Total megapixels: 10
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
124,259ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 280394
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis 01702-001. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Minimum illumination: 0.006 lx, Lens viewing angle, horizontal: 90°, Lens viewing angle, vertical: 49°. Sensor type: CMOS, Optical sensor size: 101.6 / 3 mm (4 / 3"). Optical zoom: 4x, Focal length range: 12 - 48 mm
  • Vendor Homepage: https://www.axis.com/products/axis-q1798-le
  • Name: NET CAMERA Q1798-LE BULLET/01702-001 AXIS
  • Category Code: FNC
  • Form factor: Bullet
  • Mounting type: Ceiling/wall
  • Product colour: White
  • Housing material: Plastic
  • International Protection (IP) code: IP67
  • IK code: IK10
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Outdoor
  • Day/night mode: Yes
  • Infrared (IR) cut-off filter: Yes
  • Certification: EN 55032 A, EN 50121-4, IEC 62236-4, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC 15 B A, ICES-003 A, VCCI A, RCM AS/NZS CISPR 32 A, KCC KN32 A, KN35, EAC IEC/EN/UL 62368-1, IEC/EN/UL 60950-22 IS 13252 IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-
  • Minimum illumination: 0.006
  • Lens viewing angle, horizontal: 90
  • Lens viewing angle, vertical: 49
  • Camera shutter speed: 1/45500 - 2
  • Number of sensors: 1
  • Optical sensor size: 4/3
  • Sensor type: CMOS
  • Optical zoom: 4
  • Number of lenses: 1
  • Focal length range: 12 - 48
  • Auto focus: Yes
  • Maximum aperture number: 4
  • Minimum aperture number: 1.7
  • Maximum resolution: 3712 x 2784
  • Total megapixels: 10
  • Video compression formats: AVC/H.264/H.265/HEVC/M-JPEG/MPEG4
  • Supported graphics resolutions: 3840 x 2160
  • Frame rate: 30
  • Video streaming: Yes
  • Bit rate control: Variable Bit Rate (VBR)
  • Image quality adjustment: Brightness/Contrast/Saturation/Sharpness
  • Voice codecs: G.711/G.726/PCM
  • Ethernet LAN: Yes
  • Ethernet interface type: Gigabit Ethernet
  • Networking standards: IEEE 802.1x/IEEE 802.3at
  • Supported network protocols: IPv4, IPv6 USGv6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP
  • Quality of Service (QoS) support: Yes
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Flash memory: 512
  • Internal memory: 2048
  • Ethernet LAN (RJ-45) ports: 1
  • Microphone in: Yes
  • Terminal block port: Yes
  • Password protection: Yes
  • HTTPS encryption: Yes
  • IP address filtering: Yes
  • Security algorithms: EAP-TLS
  • Power source type: AC,DC,PoE
  • AC input voltage: 20 - 24
  • Power consumption (typical): 13.3
  • Power consumption (Power over Ethernet (PoE)): 24
  • Operating temperature (T-T): -40 - 60
  • Storage temperature (T-T): -40 - 65
  • Operating relative humidity (H-H): 10 - 100
  • Storage relative humidity (H-H): 5 - 95
  • Diameter: 147
  • Length: 360
  • Weight: 2550
  • Number of cameras: 1
  • Harmonized System (HS) code: 85258900
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.01474
  • Unit Calculated Weight: 3.05
Specifications
AC input voltage20 - 24
Auto focusYes
Bit rate controlVariable Bit Rate (VBR)
Camera shutter speed1/45500 - 2
Card reader integratedYes
CertificationEN 55032 A, EN 50121-4, IEC 62236-4, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC 15 B A, ICES-003 A, VCCI A, RCM AS/NZS CISPR 32 A, KCC KN32 A, KN35, EAC IEC/EN/UL 62368-1, IEC/EN/UL 60950-22 IS 13252 IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Connectivity technologyWired
Day/night modeYes
Diameter147
Ethernet interface typeGigabit Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Flash memory512
Focal length range12 - 48
Form factorBullet
Frame rate30
Harmonized System (HS) code85258900
Housing materialPlastic
HTTPS encryptionYes
IK codeIK10
Image quality adjustmentBrightness/Contrast/Saturation/Sharpness
Infrared (IR) cut-off filterYes
Internal memory2048
International Protection (IP) codeIP67
IP address filteringYes
Lens viewing angle, horizontal90
Lens viewing angle, vertical49
Maximum aperture number4
Maximum resolution3712 x 2784
Microphone inYes
Minimum aperture number1.7
Minimum illumination0.006
Mounting typeCeiling/wall
Networking standardsIEEE 802.1x/IEEE 802.3at
Number of cameras1
Number of lenses1
Number of sensors1
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-40 - 60
Optical sensor size4/3
Optical zoom4
Password protectionYes
Placement supportedOutdoor
Power consumption (Power over Ethernet (PoE))24
Power consumption (typical)13.3
Power source typeAC,DC,PoE
Product colourWhite
Quality of Service (QoS) supportYes
Security algorithmsEAP-TLS
Sensor typeCMOS
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-40 - 65
SummaryAxis 01702-001. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Minimum illumination: 0.006 lx, Lens viewing angle, horizontal: 90°, Lens viewing angle, vertical: 49°. Sensor type: CMOS, Optical sensor size: 101.6 / 3 mm (4 / 3"). Optical zoom: 4x, Focal length range: 12 - 48 mm
Supported graphics resolutions3840 x 2160
Supported network protocolsIPv4, IPv6 USGv6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP
Terminal block portYes
Total megapixels10
TypeIP security camera
Video compression formatsAVC/H.264/H.265/HEVC/M-JPEG/MPEG4
Video streamingYes
Voice codecsG.711/G.726/PCM
Weight2550
Specs
Category CodeFNC
Description

AXIS Q1798-LE features a powerful, ultra-high light-sensitive 4/3” image sensor that captures superior video and excellent details in resolutions up to 10 megapixels. Thanks to Axis Lightfinder 2.0, it delivers true colors in almost complete darkness. Including a Canon lens with focal length of 12-48 mm and horizontal field of view of 90°, it’s ideal for wide, open areas such as airports, harbors or sports stadiums. It offers built-in analytics for proactive surveillance and includes audio in, Axis OptimizedIR, shock detection, auto-rotation as well as enhanced security functionality. Furthermore, Axis Zipstream supporting H.264/H.265 provides exceptional savings on bandwidth and storage requirements.

  • 12 – 48 mm Canon lens; 4K / 10 MP resolutions; Axis Lightfinder 2.0; Ultra-high light-sensitive 4/3” sensor; Zipstream with support for H.264/H.265

Length360
NameNET CAMERA Q1798-LE BULLET/01702-001 AXIS
PictureUrlhttps://static.elko.cloud/ProductImages/35662abc-68b3-48ad-8e7b-612bc3704a41.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/35662abc-68b3-48ad-8e7b-612bc3704a41.Jpeg
Unit Calculated Volume0.01474
Unit Calculated Weight3.05
Units per Shipping Box1
Vendor Homepagehttps://www.axis.com/products/axis-q1798-le
