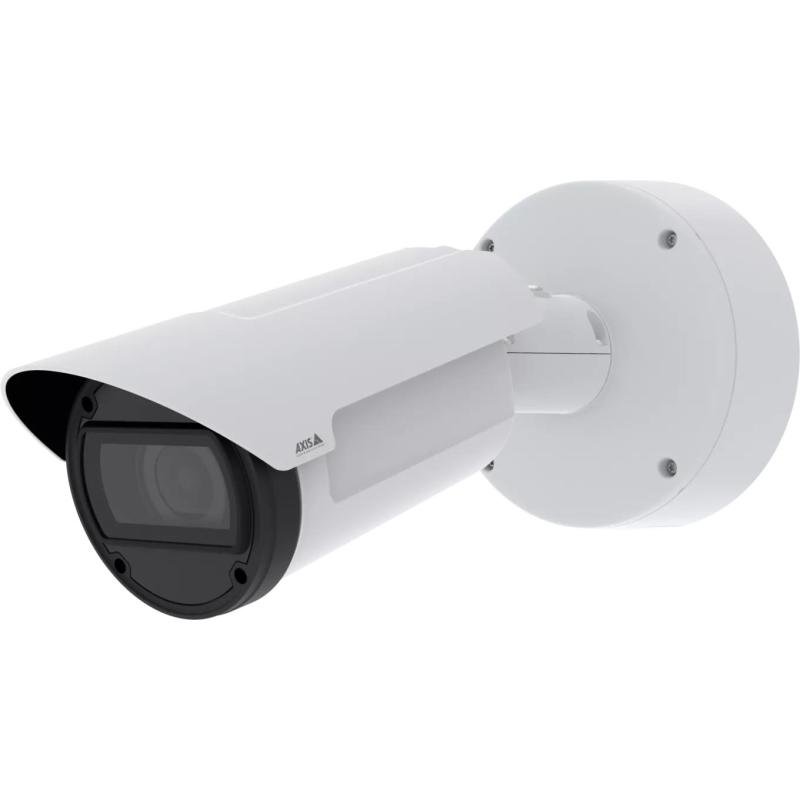

NET CAMERA Q1809-LE 41MP/03019-001 AXIS

NET CAMERA Q1809-LE 41MP/03019-001 AXIS
NET CAMERA Q1809-LE 41MP/03019-001 AXIS
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 7680 x 4320
  • Total megapixels: 41
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
329,079ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 426229
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis Q1809-LE 150mm. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Bullet. Minimum illumination: 0.04 lx, Angle of rotation: 270°, Lens viewing angle, horizontal: 21 - 7°. Sensor type: CMOS, Optical sensor size: 101.6 / 3 mm (4 / 3"). Focal length range: 50 - 150 mm, Focus: Motorized, Detect distance (wide): 853.8 m
  • Vendor Homepage: https://www.axis.com/products/axis-q1809-le
  • Name: NET CAMERA Q1809-LE 41MP/03019-001 AXIS
  • Category Code: FNC
  • Model: 03019-001
  • Form factor: Bullet
  • Mounting type: Ceiling/wall
  • Product colour: Black/White
  • Housing material: Aluminium/Glass
  • Protection features: Impact resistant
  • International Protection (IP) code: IP66, IP67
  • IK code: IK10
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Outdoor
  • PTZ control: Yes
  • PTZ modes: Digital PTZ
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Infrared (IR) cut-off filter: Yes
  • Certification: CSA, UL/cUL, CE, EAC, VCCI, RCM
  • Minimum illumination: 0.04
  • Angle of rotation: 270
  • Lens viewing angle, horizontal: 21 - 7
  • Lens viewing angle, vertical: 12 - 4
  • Tilt angle range: 0 - 90
  • Pan range: -180 - 180
  • Camera pixel size: 2.315
  • Camera shutter speed: 1/15500 - 2
  • Number of sensors: 1
  • Optical sensor size: 4/3
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Number of lenses: 1
  • Focal length range: 50 - 150
  • Focus: Motorized
  • Maximum aperture number: 4
  • Closest focusing distance: 5
  • Detect distance (tele): 2551.6
  • Detect distance (wide): 853.8
  • Identify distance (tele): 255.2
  • Identify distance (wide): 85.4
  • Observe distance (tele): 1012.6
  • Observe distance (wide): 338.8
  • Recognize distance (tele): 510.2
  • Recognize distance (wide): 170.8
  • Night vision: Yes
  • LED type: IR
  • Infra-red wavelength: 900
  • Maximum resolution: 7680 x 4320
  • Total megapixels: 41
  • Video formats supported: AVC/H.264/H.265/HEVC/M-JPEG/MPEG4
  • Video compression formats: H.264/H.265
  • Supported graphics resolutions: 1280 x 800/160 x 120/160 x 90/3840 x 2160
  • Frame rate: 30
  • Video streaming: Yes
  • Noise reduction: Yes
  • Noise reduction technology: 2D noise reduction,3D noise reduction
  • Gain control type: Auto
  • Bit rate control: Variable Bit Rate (VBR)
  • Image quality adjustment: Brightness/Contrast/Mirror/Sharpness
  • Image stabilizer: Yes
  • Text caption overlay: Yes
  • Audio formats supported: AAC-LC/ADPCM/G.711/G.726/LPCM/PCM
  • Sample rate: 48
  • Signal-to-Noise Ratio (SNR): 55
  • Ethernet LAN: Yes
  • Networking standards: IEEE 802.1AE/IEEE 802.1x
  • Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSd , HTTP/2, TLSd , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v
  • Quality of Service (QoS) support: Yes
  • Streaming method: Multicast
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Flash memory: 8192
  • ROM capacity: 4096
  • Microphone in: Yes
  • Terminal block port: Yes
  • DC-in jack: Yes
  • Password protection: Yes
  • Alert notification type: E-mail
  • Digest authentication: Yes
  • Pixel counter: Yes
  • Security algorithms: EAP-TLS/HTTPS
  • Cloud-managed: Yes
  • Remotely operated: Yes
  • Power source type: DC,PoE
  • Power consumption (typical): 17.6
  • Power consumption (max): 35
  • Power consumption (Power over Ethernet (PoE)): 18.9
  • Operating temperature (T-T): -40 - 55
  • Storage temperature (T-T): -40 - 65
  • Operating relative humidity (H-H): 10 - 100
  • Storage relative humidity (H-H): 5 - 95
  • Depth: 411
  • Height: 183
  • Diameter: 183
  • Weight: 3200
  • Compliance certificates: REACH/RoHS
  • Number of cameras: 1
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.01659
  • Unit Calculated Weight: 4.01
Specifications
Alert notification typeE-mail
Angle of rotation270
Audio formats supportedAAC-LC/ADPCM/G.711/G.726/LPCM/PCM
Bit rate controlVariable Bit Rate (VBR)
Camera pixel size2.315
Camera shutter speed1/15500 - 2
Card reader integratedYes
CertificationCSA, UL/cUL, CE, EAC, VCCI, RCM
Closest focusing distance5
Cloud-managedYes
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Compliance certificatesREACH/RoHS
Connectivity technologyWired
Day/night modeYes
DC-in jackYes
Depth411
Detect distance (tele)2551.6
Detect distance (wide)853.8
Diameter183
Digest authenticationYes
Ethernet LANYes
Flash memory8192
Focal length range50 - 150
FocusMotorized
Form factorBullet
Frame rate30
Gain control typeAuto
Height183
Housing materialAluminium/Glass
Identify distance (tele)255.2
Identify distance (wide)85.4
IK codeIK10
Image quality adjustmentBrightness/Contrast/Mirror/Sharpness
Image stabilizerYes
Infra-red wavelength900
Infrared (IR) cut-off filterYes
International Protection (IP) codeIP66, IP67
LED typeIR
Lens viewing angle, horizontal21 - 7
Lens viewing angle, vertical12 - 4
Maximum aperture number4
Maximum resolution7680 x 4320
Microphone inYes
Minimum illumination0.04
Mounting typeCeiling/wall
Networking standardsIEEE 802.1AE/IEEE 802.1x
Night visionYes
Noise reductionYes
Noise reduction technology2D noise reduction,3D noise reduction
Number of cameras1
Number of lenses1
Number of sensors1
Observe distance (tele)1012.6
Observe distance (wide)338.8
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-40 - 55
Optical sensor size4/3
Pan range-180 - 180
Password protectionYes
Pixel counterYes
Placement supportedOutdoor
Power consumption (max)35
Power consumption (Power over Ethernet (PoE))18.9
Power consumption (typical)17.6
Power source typeDC,PoE
Product colourBlack/White
Protection featuresImpact resistant
PTZ controlYes
PTZ modesDigital PTZ
Quality of Service (QoS) supportYes
Recognize distance (tele)510.2
Recognize distance (wide)170.8
Remotely operatedYes
ROM capacity4096
Sample rate48
Security algorithmsEAP-TLS/HTTPS
Sensor typeCMOS
Signal-to-Noise Ratio (SNR)55
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-40 - 65
Streaming methodMulticast
SummaryAxis Q1809-LE 150mm. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Bullet. Minimum illumination: 0.04 lx, Angle of rotation: 270°, Lens viewing angle, horizontal: 21 - 7°. Sensor type: CMOS, Optical sensor size: 101.6 / 3 mm (4 / 3"). Focal length range: 50 - 150 mm, Focus: Motorized, Detect distance (wide): 853.8 m
Supported graphics resolutions1280 x 800/160 x 120/160 x 90/3840 x 2160
Supported network protocolsIPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSd , HTTP/2, TLSd , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v
Terminal block portYes
Text caption overlayYes
Tilt angle range0 - 90
Total megapixels41
TypeIP security camera
Video compression formatsH.264/H.265
Video formats supportedAVC/H.264/H.265/HEVC/M-JPEG/MPEG4
Video streamingYes
Weight3200
Wide Dynamic Range (WDR)Yes
Zoom capabilityYes
Specs
Category CodeFNC
Description

Ideal for long distance surveillance, this all-in-one, outdoor-ready bullet camera delivers superior image quality in 41 MP with high light sensitivity and extremely high pixel density.

See all the details
Built on a dual Axis system-on-chip, this device delivers extreme detail over great distances and excellent forensic value. It offers 41 MP at 15 fps or 8K at up to 30 fps. And a 4/3” image sensor ensures exceptional low-light performance. With a custom-made, tele Canon lens, it’s perfect for long-distance surveillance and delivers extremely high pixel density. Electronic image stabilization (EIS) ensures smooth video in situations where a camera is subject to vibrations, for instance, at sports arenas or windy harbors. Furthermore, Axis Zipstream reduces bandwidth and storage requirements without compromising image quality.

All-in-one and ready for everything
This powerful camera offers everything you need and is out-of-the-box ready to use. Enclosed in a robust aluminum casing, it also includes a mounting arm for easy installation. And a spacious back box ensures secure cable management. It features a custom-made, tele (50 – 150 mm) Canon lens and 21°-7° horizontal field of view. With 3x zoom, it’s ideal for identification purposes. In addition, thanks to PoE out, you can connect and power another device without any additional cabling. This eliminates the need to rent extra ports and simplifies installation.

Secure and robust surveillance
AXIS Q1809-LE includes Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. And it offers FIPS 140-3 Level 3 certified secure cryptographic key storage and operations. This robust, weather-protected, outdoor-ready camera is IP66-, IP67-, IK10- and NEMA 4X-rated and features a IK08-rated impact-resistant glass front window. It has an operating temperature range from -40 °C to 55 °C (-40 °F to 131 °F). Furthermore, surge protection minimizes damage in the case of a power surge.

  • Out-of-the-box and outdoor-ready
  • Superior image quality in 8K
  • High light-sensitive 4/3” sensor
  • Extreme detail at great distances
  • Built-in cybersecurity with Axis Edge Vault

Model03019-001
NameNET CAMERA Q1809-LE 41MP/03019-001 AXIS
PictureUrlhttps://static.elko.cloud/ProductImages/e2127dc9-5b2f-4f33-9bf7-48ecda8cb45d.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/e2127dc9-5b2f-4f33-9bf7-48ecda8cb45d.Jpeg
Unit Calculated Volume0.01659
Unit Calculated Weight4.01
Units per Shipping Box1
Vendor Homepagehttps://www.axis.com/products/axis-q1809-le
