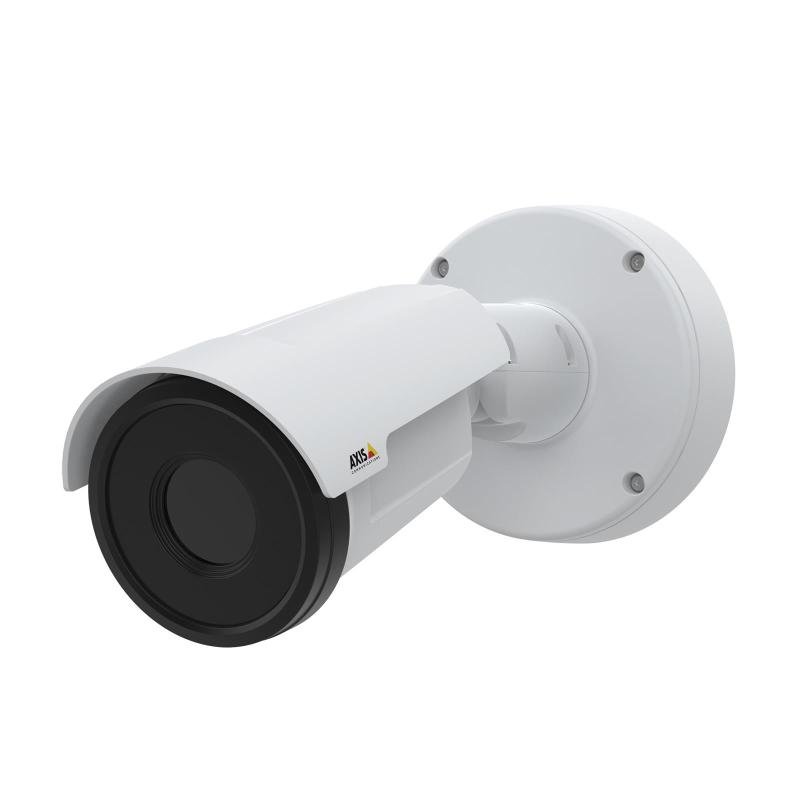

NET CAMERA Q1951-E 19MM 30FPS/THERMAL 02154-001 AXIS

NET CAMERA Q1951-E 19MM 30FPS/THERMAL 02154-001 AXIS
NET CAMERA Q1951-E 19MM 30FPS/THERMAL 02154-001 AXIS
  • Connectivity technology: Wired
  • Maximum resolution: 768 x 576
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
195,593ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 350842
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis 02154-001. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Bullet. Lens viewing angle, horizontal: 19.4°, Camera pixel size: 17 µm. Sensor type: Microbolometer, Effective sensor resolution (thermal module): 384 x 288 pixels. Fixed focal length: 19 mm, Closest focusing distance: 8.5 m, Infrared spectral band: 8 - 14 µm
  • Vendor Homepage: https://www.axis.com/products/axis-q1951-e
  • Name: NET CAMERA Q1951-E 19MM 30FPS/THERMAL 02154-001 AXIS
  • Category Code: FNC
  • Form factor: Bullet
  • Mounting type: Ceiling/wall
  • Product colour: Black/White
  • Housing material: Aluminium/Polycarbonate (PC)
  • International Protection (IP) code: IP66, IP67
  • IK code: IK10
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Indoor & outdoor
  • Languages support: English/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese
  • Number of languages: 12
  • Certification: CISPR 24, CISPR 35, EN 50121-4, EN 55024, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KC KN32 Class A, KC KN35, RCM AS/NZS CISPR32 Class A, VCCI Class A, IEC/EN/UL 60950-22, IEC/E
  • Lens viewing angle, horizontal: 19.4
  • Camera pixel size: 17
  • Number of sensors: 1
  • Effective sensor resolution (thermal module): 384 x 288
  • Sensor type: Microbolometer
  • Number of lenses: 1
  • Maximum aperture number: 1.23
  • Closest focusing distance: 8.5
  • Fixed focal length: 19
  • Infrared spectral band: 8 - 14
  • Maximum resolution: 768 x 576
  • Video formats supported: AVC/H.264/H.265/HEVC/M-JPEG/MPEG4
  • Frame rate: 30
  • Video streaming: Yes
  • Bit rate control: Variable Bit Rate (VBR)
  • Flip & mirror: Yes
  • Image quality adjustment: Brightness/Contrast/Sharpness
  • Image stabilizer: Yes
  • Privacy masking: Yes
  • Text caption overlay: Yes
  • Audio formats supported: AAC-LC/ADPCM/G.711/G.726/LPCM/PCM
  • Sample rate: 8
  • Audio detection: Yes
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet/Gigabit Ethernet
  • Networking standards: IEEE 802.3af/IEEE 802.3at
  • Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, SSL/TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SOCKS, SSH, LLDP, CDP
  • Quality of Service (QoS) support: Yes
  • Streaming method: Multicast/Unicast
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Flash memory: 512
  • ROM capacity: 1024
  • Ethernet LAN (RJ-45) ports: 1
  • Microphone in: Yes
  • Terminal block port: Yes
  • Password protection: Yes
  • Active tampering alarm: Yes
  • Alert notification type: E-mail
  • Digest authentication: Yes
  • HTTPS encryption: Yes
  • IP address filtering: Yes
  • Pixel counter: Yes
  • Security algorithms: EAP-TLS
  • Video motion detection: Yes
  • Power source type: DC,PoE
  • Power consumption (typical): 4.96
  • Power consumption (max): 12.95
  • DC output voltage: 12,28
  • Operating temperature (T-T): -40 - 60
  • Storage temperature (T-T): -40 - 65
  • Operating relative humidity (H-H): 10 - 100
  • Storage relative humidity (H-H): 5 - 95
  • Width: 132
  • Depth: 272
  • Height: 132
  • Weight: 1400
  • Number of cameras: 1
  • Mounting brackets included: Yes
  • Manual: Yes
  • Doesnt contain: BFR/Halogen/PVC
  • Harmonized System (HS) code: 85258900
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.005824
  • Unit Calculated Weight: 1.6
Specifications
Active tampering alarmYes
Alert notification typeE-mail
Audio detectionYes
Audio formats supportedAAC-LC/ADPCM/G.711/G.726/LPCM/PCM
Bit rate controlVariable Bit Rate (VBR)
Camera pixel size17
Card reader integratedYes
CertificationCISPR 24, CISPR 35, EN 50121-4, EN 55024, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KC KN32 Class A, KC KN35, RCM AS/NZS CISPR32 Class A, VCCI Class A, IEC/EN/UL 60950-22, IEC/E
Closest focusing distance8.5
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Connectivity technologyWired
DC output voltage12,28
Depth272
Digest authenticationYes
Doesn\'t containBFR/Halogen/PVC
Effective sensor resolution (thermal module)384 x 288
Ethernet interface typeFast Ethernet/Gigabit Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Fixed focal length19
Flash memory512
Flip & mirrorYes
Form factorBullet
Frame rate30
Harmonized System (HS) code85258900
Height132
Housing materialAluminium/Polycarbonate (PC)
HTTPS encryptionYes
IK codeIK10
Image quality adjustmentBrightness/Contrast/Sharpness
Image stabilizerYes
Infrared spectral band8 - 14
International Protection (IP) codeIP66, IP67
IP address filteringYes
Languages supportEnglish/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese
Lens viewing angle, horizontal19.4
ManualYes
Maximum aperture number1.23
Maximum resolution768 x 576
Microphone inYes
Mounting brackets includedYes
Mounting typeCeiling/wall
Networking standardsIEEE 802.3af/IEEE 802.3at
Number of cameras1
Number of languages12
Number of lenses1
Number of sensors1
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-40 - 60
Password protectionYes
Pixel counterYes
Placement supportedIndoor & outdoor
Power consumption (max)12.95
Power consumption (typical)4.96
Power source typeDC,PoE
Privacy maskingYes
Product colourBlack/White
Quality of Service (QoS) supportYes
ROM capacity1024
Sample rate8
Security algorithmsEAP-TLS
Sensor typeMicrobolometer
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-40 - 65
Streaming methodMulticast/Unicast
SummaryAxis 02154-001. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Bullet. Lens viewing angle, horizontal: 19.4°, Camera pixel size: 17 µm. Sensor type: Microbolometer, Effective sensor resolution (thermal module): 384 x 288 pixels. Fixed focal length: 19 mm, Closest focusing distance: 8.5 m, Infrared spectral band: 8 - 14 µm
Supported network protocolsIPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, SSL/TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SOCKS, SSH, LLDP, CDP
Terminal block portYes
Text caption overlayYes
TypeIP security camera
Video formats supportedAVC/H.264/H.265/HEVC/M-JPEG/MPEG4
Video motion detectionYes
Video streamingYes
Weight1400
Width132
Specs
Category CodeFNC
Description

AXIS Q1951-E delivers a high-quality thermal video stream for reliable detection 24/7. Ideal for perimeter security, it includes AXIS Motion Guard, AXIS Fence Guard, and AXIS Loitering Guard for proactive surveillance. With a powerful analytics platform, it’s easy to add third-party analytics. Built-in cybersecurity features prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis products on your network. AXIS Q1951-E also includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified. Furthermore, this halogen-free, compact camera is robust and suitable even for harsh conditions.

  • Built-in cybersecurity features; Compact, robust, halogen-free design; Electronic image stabilization (EIS); Reliable detection 24/7; Support for AI-based analytics

NameNET CAMERA Q1951-E 19MM 30FPS/THERMAL 02154-001 AXIS
PictureUrlhttps://static.elko.cloud/ProductImages/c95e2b95-bd99-4ffe-88ff-a4fc07706e87.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/c95e2b95-bd99-4ffe-88ff-a4fc07706e87.Jpeg
Unit Calculated Volume0.005824
Unit Calculated Weight1.6
Units per Shipping Box1
Vendor Homepagehttps://www.axis.com/products/axis-q1951-e
