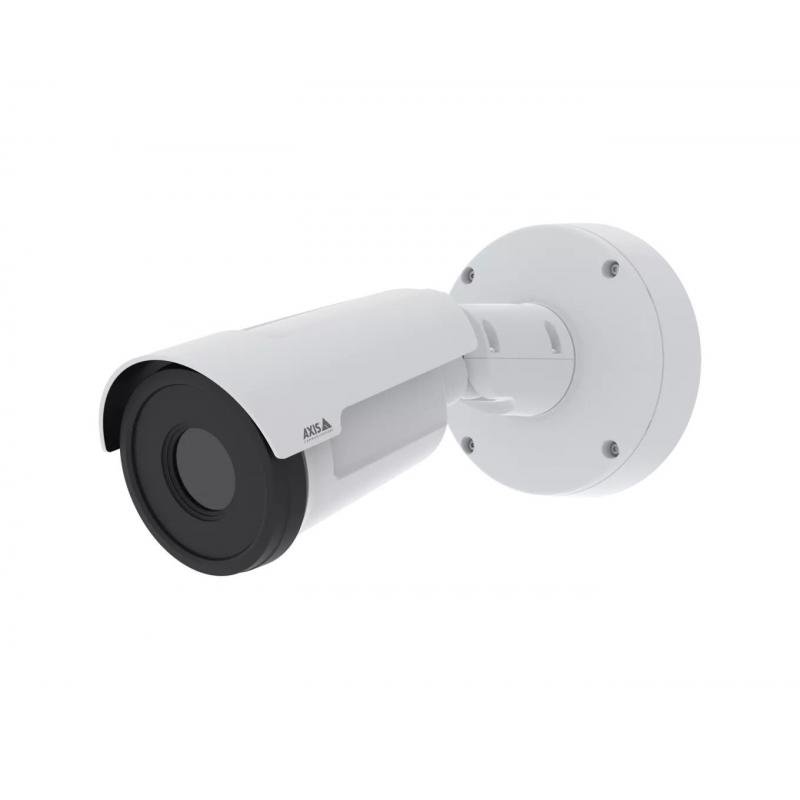

NET CAMERA Q1972-E 19MM 30 FPS/THERMAL 03029-001 AXIS

NET CAMERA Q1972-E 19MM 30 FPS/THERMAL 03029-001 AXIS
NET CAMERA Q1972-E 19MM 30 FPS/THERMAL 03029-001 AXIS
  • Connectivity technology: Wired
  • Maximum resolution: 640 x 480
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
352,050ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 435121
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis Q1972-E. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: Black, White, Form factor: Bullet. Lens viewing angle, horizontal: 31°, Camera pixel size: 17 µm. Sensor type: Microbolometer, Effective sensor resolution (thermal module): 640 x 480 pixels. Lens diameter: 1.9 cm, Closest focusing distance: 8.5 m, Infrared spectral band: 8 - 14 µm
  • Vendor Homepage: https://www.axis.com/products/axis-q1972-e
  • Name: NET CAMERA Q1972-E 19MM 30 FPS/THERMAL 03029-001 AXIS
  • Category Code: FNC
  • Model: Q1972-E 19MM 30 FPS
  • Form factor: Bullet
  • Mounting type: Wall
  • Product colour: Black/White
  • LED indicators: Yes
  • Housing material: Aluminium/Polycarbonate (PC)
  • International Protection (IP) code: IP66, IP67
  • IK code: IK10
  • Weatherproof: Yes
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Outdoor
  • Preset points: Yes
  • Thermal sensitivity (NETD): 20
  • Certification: CSA, UL/cUL, CE, KC, TAA, CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, ICES(A)/NMB(A), VCCI Class A, KS C 9835, KS C 9832 Class A, FCC Part 15 Subpart B Class A, IEC 62236-4, C
  • Lens viewing angle, horizontal: 31
  • Camera pixel size: 17
  • Number of sensors: 1
  • Effective sensor resolution (thermal module): 640 x 480
  • Sensor type: Microbolometer
  • Number of lenses: 1
  • Lens diameter: 19
  • Maximum aperture number: 1
  • Closest focusing distance: 8.5
  • Infrared spectral band: 8 - 14
  • Maximum resolution: 640 x 480
  • Video compression formats: AVC/H.264/H.265/HEVC/M-JPEG/MPEG4
  • Frame rate: 30
  • Video streaming: Yes
  • Gain control type: Auto
  • Bit rate control: Variable Bit Rate (VBR)
  • Flip & mirror: Yes
  • Image quality adjustment: Brightness/Contrast/Sharpness
  • Image stabilizer: Yes
  • Text caption overlay: Yes
  • Audio system full duplex: Yes
  • Audio formats supported: AAC-LC/ADPCM/G.711/G.726/LPCM/OPUS/PCM
  • Audio detection: Yes
  • Sample rates: 8 - 48
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet/Gigabit Ethernet
  • Networking standards: IEEE 802.1AE/IEEE 802.1x/IEEE 802.3af/IEEE 802.3at
  • Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSc , HTTP/2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SSH,
  • Quality of Service (QoS) support: Yes
  • Streaming method: Multicast
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Flash memory: 8192
  • RAM capacity: 2048
  • Ethernet LAN (RJ-45) ports: 1
  • RS-422 ports: 1
  • RS-485 ports: 1
  • Microphone in: Yes
  • Terminal block port: Yes
  • DC-in jack: Yes
  • Active tampering alarm: Yes
  • Alert notification type: E-mail
  • Digest authentication: Yes
  • Pixel counter: Yes
  • Privacy protection: Yes
  • Security algorithms: 256-bit AES-XTS/EAP-TLS/FIPS 140-2/MSCHAPv2/PEAP
  • Video motion detection: Yes
  • Power source type: DC,PoE
  • Power consumption (typical): 5
  • Power consumption (max): 12.95
  • Power consumption (Power over Ethernet (PoE)): 12.95
  • Operating temperature (T-T): -40 - 60
  • Storage temperature (T-T): -40 - 65
  • Operating relative humidity (H-H): 10 - 100
  • Storage relative humidity (H-H): 5 - 95
  • Width: 132
  • Depth: 264
  • Height: 132
  • Weight: 1400
  • Compliance certificates: REACH/RoHS
  • Number of cameras: 1
  • Manual: Yes
  • Doesnt contain: CFR/PVC/BFR
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.005824
  • Unit Calculated Weight: 1.62
Specifications
Active tampering alarmYes
Alert notification typeE-mail
Audio detectionYes
Audio formats supportedAAC-LC/ADPCM/G.711/G.726/LPCM/OPUS/PCM
Audio system full duplexYes
Bit rate controlVariable Bit Rate (VBR)
Camera pixel size17
Card reader integratedYes
CertificationCSA, UL/cUL, CE, KC, TAA, CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, ICES(A)/NMB(A), VCCI Class A, KS C 9835, KS C 9832 Class A, FCC Part 15 Subpart B Class A, IEC 62236-4, C
Closest focusing distance8.5
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Compliance certificatesREACH/RoHS
Connectivity technologyWired
DC-in jackYes
Depth264
Digest authenticationYes
Doesn\'t containCFR/PVC/BFR
Effective sensor resolution (thermal module)640 x 480
Ethernet interface typeFast Ethernet/Gigabit Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Flash memory8192
Flip & mirrorYes
Form factorBullet
Frame rate30
Gain control typeAuto
Height132
Housing materialAluminium/Polycarbonate (PC)
IK codeIK10
Image quality adjustmentBrightness/Contrast/Sharpness
Image stabilizerYes
Infrared spectral band8 - 14
International Protection (IP) codeIP66, IP67
LED indicatorsYes
Lens diameter19
Lens viewing angle, horizontal31
ManualYes
Maximum aperture number1
Maximum resolution640 x 480
Microphone inYes
Mounting typeWall
Networking standardsIEEE 802.1AE/IEEE 802.1x/IEEE 802.3af/IEEE 802.3at
Number of cameras1
Number of lenses1
Number of sensors1
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-40 - 60
Pixel counterYes
Placement supportedOutdoor
Power consumption (max)12.95
Power consumption (Power over Ethernet (PoE))12.95
Power consumption (typical)5
Power source typeDC,PoE
Preset pointsYes
Privacy protectionYes
Product colourBlack/White
Quality of Service (QoS) supportYes
RAM capacity2048
RS-422 ports1
RS-485 ports1
Sample rates8 - 48
Security algorithms256-bit AES-XTS/EAP-TLS/FIPS 140-2/MSCHAPv2/PEAP
Sensor typeMicrobolometer
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-40 - 65
Streaming methodMulticast
SummaryAxis Q1972-E. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: Black, White, Form factor: Bullet. Lens viewing angle, horizontal: 31°, Camera pixel size: 17 µm. Sensor type: Microbolometer, Effective sensor resolution (thermal module): 640 x 480 pixels. Lens diameter: 1.9 cm, Closest focusing distance: 8.5 m, Infrared spectral band: 8 - 14 µm
Supported network protocolsIPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSc , HTTP/2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SSH,
Terminal block portYes
Text caption overlayYes
Thermal sensitivity (NETD)20
TypeIP security camera
Video compression formatsAVC/H.264/H.265/HEVC/M-JPEG/MPEG4
Video motion detectionYes
Video streamingYes
WeatherproofYes
Weight1400
Width132
Specs
Category CodeFNC
Description

Reliable detection and visual verification- always

Using thermal technology, AXIS Q1972-E offers reliable detection and verification 24/7 even in low contrast scenes. It isn’t impacted by weather or light conditions ensuring a lower false alarm rate. With four lens alternatives (10 mm, 19 mm, 25 mm, and 35 mm), it offers optimal installation possibilities. Thermal palettes help you visually identify different heat sources making it easier and more efficient to interpret a scene. And electronic image stabilization (EIS) ensures stable, reliable video in all environments. Furthermore, because thermal imaging doesn’t deliver images that allow for identification, privacy is always guaranteed.

Powerful analytics platform

AXIS Q1972-E comes with AXIS Motion Guard, AXIS Fence Guard, and AXIS Loitering Guard preinstalled for proactive surveillance. Plus, you can buy AXIS Perimeter Defender with AI-based functionality for enhanced detection capabilities allowing you to detect and classify humans and other objects. Built on a powerful platform, it’s possible to add third-party analytics to trigger events. It comes with two I/O ports for connecting external devices. Furthermore, edge-to-edge technology lets you connect, for instance, a hornspeaker to enable audio alarms that deter, warn, and notify. You can also connect a strobe siren to deter intruders with the power of light and sound.

Secure, robust, and sustainable

This powerful thermal camera includes Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. Plus, it offers secure key storage with FIPS 140-2 Level 2 certified, secure cryptographic key storage and operations. With IK10-, IP66/67-, NEMA TS2, and NEMA 4x ratings, it’s impact- and weather-resistant. What’s more, this robust, sustainable device offers a low carbon footprint. It’s made from halogen-free materials and there’s no need for lighting in dark scenes, ensuring lower system power consumption.


ModelQ1972-E 19MM 30 FPS
NameNET CAMERA Q1972-E 19MM 30 FPS/THERMAL 03029-001 AXIS
PictureUrlhttps://static.elko.cloud/ProductImages/34f41460-dd2b-4a9c-b5ca-4a45cca11f5b.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/34f41460-dd2b-4a9c-b5ca-4a45cca11f5b.Jpeg
Unit Calculated Volume0.005824
Unit Calculated Weight1.62
Units per Shipping Box1
Vendor Homepagehttps://www.axis.com/products/axis-q1972-e
