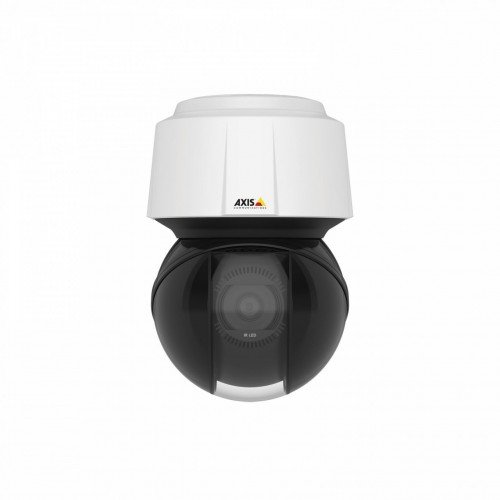

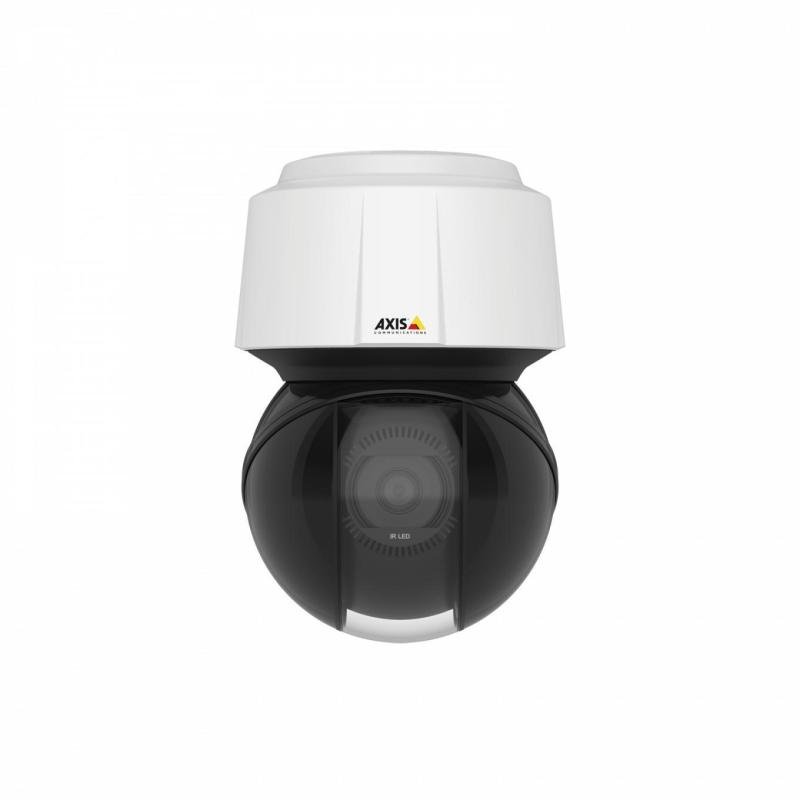

NET CAMERA Q6135-LE PTZ 50HZ/NM 01958-301 AXIS

Technical Specifications

• Summary: Axis 01959-007. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.01 lx, Lens viewing angle, horizontal: 58.3 – 2.4, Lens viewing angle, vertical: 34.9 – 1.3. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 32x, Digital zoom: 12x, Focal length range: 4.3 - 137.6 mm
• Vendor Homepage: https://www.axis.com/products/axis-q6135-le
• Name: NET CAMERA Q6135-LE PTZ 50HZ/NM 01958-301 AXIS
• Category Code: FNC
• Form factor: Dome
• Mounting type: Ceiling
• Product colour: Black/White
• Housing material: Aluminium/Polycarbonate (PC)
• International Protection (IP) code: IP66
• IK code: IK08, IK10
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Indoor & outdoor
• PTZ control: Yes
• Auto-tracking: Yes
• Tour recording: Yes
• Wide Dynamic Range (WDR): Yes
• Day/night mode: Yes
• Infrared (IR) cut-off filter: Yes
• Processor model: ARTPEC-7
• Languages support: English/French/German/Italian/Japanese/Korean/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese
• Number of languages: 11
• Camera pan control: Yes
• Camera tilt control: Yes
• Minimum illumination: 0.01
• Lens viewing angle, horizontal: 58.3 - 2.4
• Lens viewing angle, vertical: 34.9 - 1.3
• Tilt angle range: 20 - 90
• Tilt speed: 500
• Pan range: 0 - 360
• Pan speed: 700
• Camera shutter speed: 1/66500 - 2
• Optical sensor size: 1/2.8
• Progressive scan: Yes
• Sensor type: CMOS
• Zoom capability: Yes
• Optical zoom: 32
• Digital zoom: 12
• Number of lenses: 1
• Focal length range: 4.3 - 137.6
• Auto focus: Yes
• Maximum aperture number: 4
• Minimum aperture number: 1.4
• Night vision: Yes
• Night vision distance: 250
• LED type: IR
• Infra-red wavelength: 850
• Maximum resolution: 1920 x 1080
• Video compression formats: H.264/H.265/M-JPEG
• Supported graphics resolutions: 1920 x 1080 (HD 1080)/320 x 180
• Supported video modes: 1080p
• Frame rate: 60
• Video streaming: Yes
• Image quality adjustment: Brightness/Contrast/Saturation/Sharpness
• Privacy masking: Yes
• Text caption overlay: Yes
• Audio system: 2-way
• Ethernet LAN: Yes
• Networking standards: IEEE 802.1x/IEEE 802.3at
• Supported network protocols: IPv4, IPv6 USGv6, HTTP, HTTPSa , HTTP/2, SSL/TLSa , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, NTCIP, LLDP, MQTT, Sy
• Quality of Service (QoS) support: Yes
• Card reader integrated: Yes
• Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
• Flash memory: 512
• Internal memory: 1024
• Ethernet LAN (RJ-45) ports: 1
• Password protection: Yes
• Alert notification type: E-mail
• Digest authentication: Yes
• HTTPS encryption: Yes
• IP address filtering: Yes
• Pixel counter: Yes
• Video motion detection: Yes
• Power source type: AC,PoE
• AC input voltage: 100 - 240
• Power consumption (typical): 13.5
• Power consumption (max): 51
• Power consumption (Power over Ethernet (PoE)): 37
• Operating temperature (T-T): -30 - 50
• Storage temperature (T-T): -40 - 70
• Operating relative humidity (H-H): 10 - 100
• Storage relative humidity (H-H): 5 - 95
• Height: 241
• Diameter: 165
• Weight: 3000
• Number of cameras: 1
• Manual: Yes
• Doesnt contain: PVC
• Warranty period: 5
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.01767
• Unit Calculated Weight: 3.63
