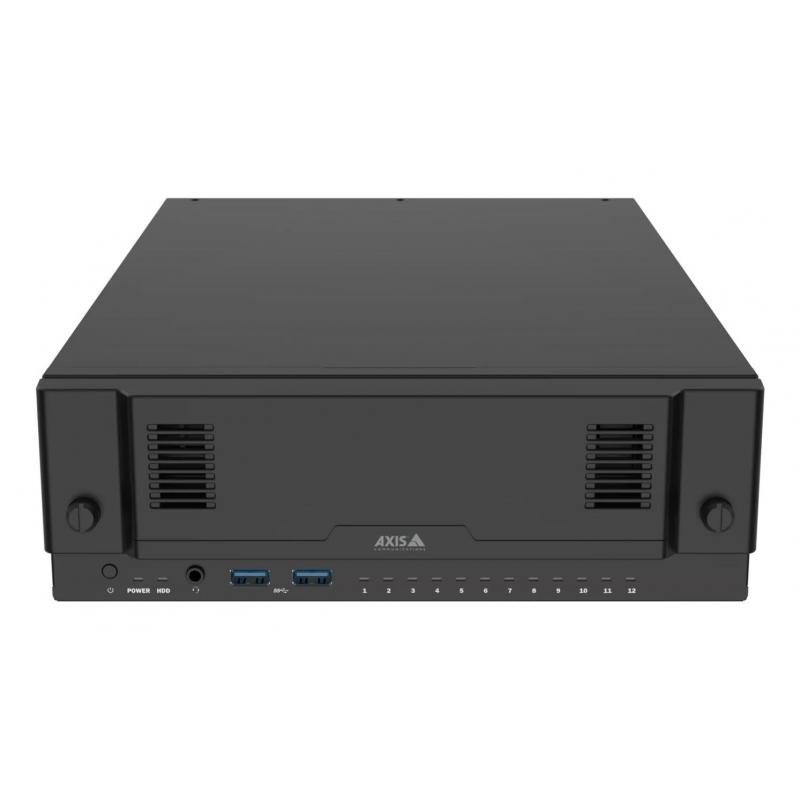

S2212 Mk II 6 TB

S2212 Mk II 6 TB
S2212 Mk II 6 TB
  • Video input channels: 12
  • Number of HDDs supported: 2
  • Ethernet LAN (RJ-45) ports: 14
266,973ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 444624
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
1

Technical Specifications

  • Summary: Axis S2212 Mk II 6 TB. Video input channels: 12 channels, Maximum resolution: 1920 x 1080 pixels, Video recording modes: 720p, 1080p. Security algorithms: FIPS 140-2. HDD capacity: 6 TB, Maximum storage capacity: 12000 TB, Total installed storage capacity: 6 TB. SSD capacity: 256 GB. Networking standards: IEEE 802.3at
  • Vendor Homepage: https://www.axis.com/products/axis-s2212-mk-ii
  • Name: NET VIDEO RECORDER S2212 MK II/6TB 02808-002 AXIS
  • Category Code: NVR
  • Model: 02808-002
  • Model name: S2212 Mk II 6 TB
  • Video input channels: 12
  • Video recording modes: 1080p/720p
  • Maximum resolution: 1920 x 1080
  • Input bandwidth: 192
  • Maximum frame rate: 30
  • Security algorithms: FIPS 140-2
  • Number of HDDs installed: 1
  • HDD capacity: 6000
  • Number of HDDs supported: 2
  • Total installed storage capacity: 6000
  • Maximum storage capacity: 12000
  • Number of SSDs installed: 1
  • SSD capacity: 256
  • Ethernet LAN (RJ-45) ports: 14
  • Power over Ethernet (PoE): Yes
  • Power over Ethernet (PoE) ports quantity: 12
  • HDMI output: Yes
  • HDMI ports quantity: 2
  • USB 2.0 ports quantity: 2
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
  • Fiber ports quantity: 1
  • Networking standards: IEEE 802.3at
  • Certification: UL/cUL, BIS, CE, KC, VCCI, RCM, BSMI, FCC, NOM
  • Built-in processor: Yes
  • Power consumption (max): 95
  • Power consumption (typical): 75
  • AC input voltage: 100-240
  • AC input frequency: 50/60
  • Total Power over Ethernet (PoE) budget: 135
  • Operating temperature (T-T): 0 - 40
  • Operating relative humidity (H-H): 10 - 90
  • Storage temperature (T-T): -40 - 65
  • Storage relative humidity (H-H): 10 - 90
  • Compliance certificates: Electromagnetic Compatibility (EMC)/Trade Agreements Act (TAA)
  • Width: 230
  • Depth: 330
  • Height: 78
  • Weight: 5800
  • Units per Pallet: 0
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.04718
  • Unit Calculated Weight: 8.76
Specifications
AC input frequency50/60
AC input voltage100-240
Built-in processorYes
CertificationUL/cUL, BIS, CE, KC, VCCI, RCM, BSMI, FCC, NOM
Compliance certificatesElectromagnetic Compatibility (EMC)/Trade Agreements Act (TAA)
Depth330
Ethernet LAN (RJ-45) ports14
Fiber ports quantity1
HDD capacity6000
HDMI outputYes
HDMI ports quantity2
Height78
Input bandwidth192
Maximum frame rate30
Maximum resolution1920 x 1080
Maximum storage capacity12000
Networking standardsIEEE 802.3at
Number of HDDs installed1
Number of HDDs supported2
Number of SSDs installed1
Operating relative humidity (H-H)10 - 90
Operating temperature (T-T)0 - 40
Power consumption (max)95
Power consumption (typical)75
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity12
Security algorithmsFIPS 140-2
SSD capacity256
Storage relative humidity (H-H)10 - 90
Storage temperature (T-T)-40 - 65
SummaryAxis S2212 Mk II 6 TB. Video input channels: 12 channels, Maximum resolution: 1920 x 1080 pixels, Video recording modes: 720p, 1080p. Security algorithms: FIPS 140-2. HDD capacity: 6 TB, Maximum storage capacity: 12000 TB, Total installed storage capacity: 6 TB. SSD capacity: 256 GB. Networking standards: IEEE 802.3at
Total installed storage capacity6000
Total Power over Ethernet (PoE) budget135
USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Video input channels12
Video recording modes1080p/720p
Weight5800
Width230
Specs
Category CodeNVR
Description

AXIS Camera Station S2212 Mk II Standalone Appliance

This 12-channel standalone appliance includes everything you need to run your complete surveillance system such as AXIS Camera Station Pro licenses, a 12-port PoE switch, and 6 TB of storage. It comes with pre-loaded software and tools to minimize installation time.

Powerful and versatile

This standalone appliance is compact and silent and won’t disturb local operations, ideal for example, in coffee shops, retail stores, and offices. With 12 channels and AXIS Camera Station Pro licenses included, it gives you complete control, and you can run your entire solution on-premises. And, it provides 10 AXIS Audio Manager Pro licenses when installing the software to the server. It comes with one empty bay for easy storage expansion, and support for AXIS Camera Station Cloud Storage if recording in the cloud is preferred. Built using powerful components, it supports AI applications such as Smart search 2. Furthermore, the built-in switch features an additional uplink port for easy and cost-efficient system expansion using AXIS S30 Recorder Series.

Easy to install and maintain

It comes preloaded with software and tools to help you set up and maintain your system. For instance, AXIS Recorder Toolbox includes an intuitive wizard to guide you setting up hostname, network settings in different environments, and date and time settings. It also includes a dashboard providing information on the built-in switch configuration, PoE management functions and troubleshooting tools. This all-in-one device provides everything you need to support your operations and update and maintain your system — all from one supplier. What’s more, advanced replacement service (RMA) and a 5-year hardware warranty ensure trouble-free ownership and better control over total costs.

Created with cybersecurity in mind

This reliable recording solution offers high-security features and standards. It offers an encrypted operating system and recordings with a FIPS 140-2 Level 2 certified TPM. Produced in a TAA-designated country, this appliance complies with NDAA FY19 and comes with a Software Bill of Materials (SBOM), ensuring compliance with strict regulations. Secure boot protects the system and ensures the recorder only runs a trusted operating system. Furthermore, the connected devices are physically isolated from the external network, reducing the risk of cyberattacks from the corporate network or the internet.


Model02808-002
Model nameS2212 Mk II 6 TB
NameNET VIDEO RECORDER S2212 MK II/6TB 02808-002 AXIS
PictureUrlhttps://static.elko.cloud/ProductImages/57dad852-1f3d-4dfa-a0ee-b7d8994cecba.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/57dad852-1f3d-4dfa-a0ee-b7d8994cecba.Jpeg
Unit Calculated Volume0.04718
Unit Calculated Weight8.76
Units per Pallet0
Units per Shipping Box1
Vendor Homepagehttps://www.axis.com/products/axis-s2212-mk-ii
