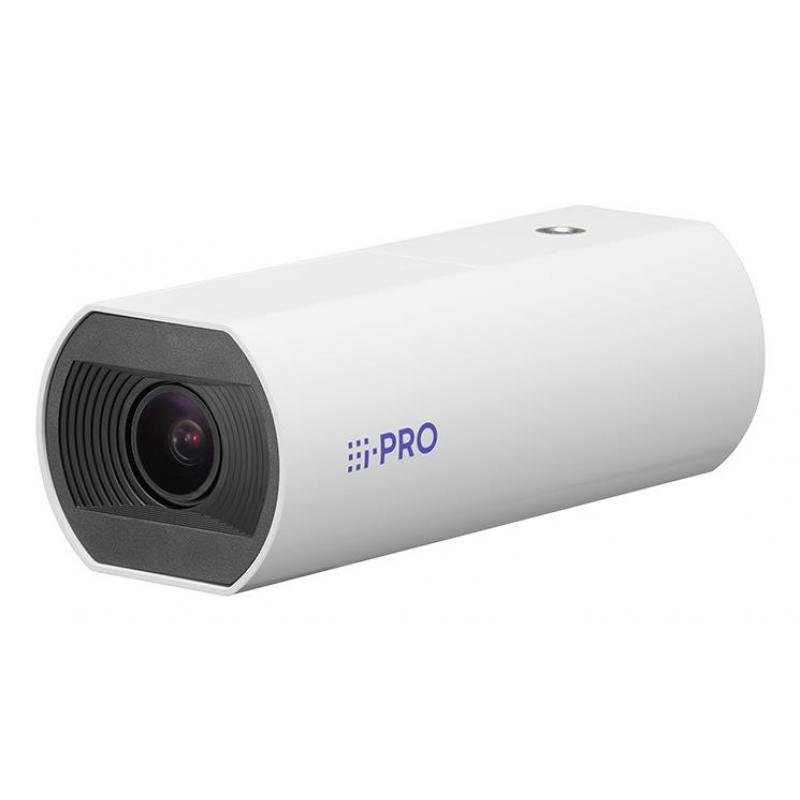

NET CAMERA 2MP BOX INDOOR/WV-U11301-V3 I-PRO

Technical Specifications

• Summary: i-PRO WV-U11301-V3. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: Black, White, Form factor: Bullet. Minimum illumination: 0.002 lx, Lens viewing angle, horizontal: 23 - 114°, Lens viewing angle, vertical: 17 - 58°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 3.2x, Digital zoom: 9.6x, Focal length range: 3.2 - 10.2 mm
• Vendor Homepage: https://i-pro.com/products_and_solutions/en/surveillance/products/wv-u11301-v3
• Name: NET CAMERA 2MP BOX INDOOR/WV-U11301-V3 I-PRO
• Category Code: FNC
• Form factor: Bullet
• Mounting type: Wall
• Product colour: Black/White
• Housing material: Aluminium/Resin/Stainless steel
• International Protection (IP) code: IP66
• IK code: IK10
• Fog proof: Yes
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Indoor
• Certification: UL (UL62368-1 3Ed), c-UL (CAN/CSA C22.2 NO.62368-1-19), IEC62368-1 3Ed, FCC Part15 Subpart B ClassA, ICES-003 Issue 7 ClassA, EN55032 ClassA, EN55035
• Minimum illumination: 0.002
• Lens viewing angle, horizontal: 23 - 114
• Lens viewing angle, vertical: 17 - 58
• White balance: ATW/AWC
• Camera shutter speed: 16/30s - 1/10000
• Number of Privacy masking areas: 8
• Number of sensors: 1
• Optical sensor size: 1/2.8
• Sensor type: CMOS
• Zoom capability: Yes
• Optical zoom: 3.2
• Digital zoom: 9.6
• Number of lenses: 1
• Focal length range: 3.2 - 10.2
• Maximum aperture number: 3.2
• Minimum aperture number: 1.6
• Closest focusing distance: 2
• Detect distance (tele): 138.5
• Detect distance (wide): 24.9
• Identify distance (tele): 13.8
• Identify distance (wide): 2.5
• Observe distance (tele): 55.4
• Observe distance (wide): 10
• Recognize distance (tele): 27.7
• Recognize distance (wide): 5
• Maximum resolution: 1920 x 1080
• Total megapixels: 2
• Video compression formats: H.264/H.265
• Supported graphics resolutions: 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/320 x 180/320 x 240/640 x 360/640 x 480 (VGA)
• Frame rate: 30
• Video streaming: Yes
• Noise reduction: Yes
• Gain control type: Auto
• Back Light Compensation (BLC): Yes
• Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
• Highlight Compensation (HLC): Yes
• Text caption overlay: Yes
• Audio formats supported: AAC-LC/G.711/G.726
• Ethernet LAN: Yes
• Ethernet interface type: Fast Ethernet
• Networking standards: IEEE 802.3af
• Supported network protocols: IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, FTP, SFTP, LLDP, MQTT IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3,
• Number of users: 14
• Streaming method: Multicast
• Card reader integrated: Yes
• Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
• Maximum memory card size: 512
• Ethernet LAN (RJ-45) ports: 1
• Alert notification type: E-mail
• Digest authentication: Yes
• Intelligent Video Surveillance (IVS) system features: Scene change
• Privacy protection: Yes
• Security algorithms: 802.1x RADIUS/FIPS 140-3/HTTPS
• Video motion detection: Yes
• Web browser: Yes
• Power source type: PoE
• Power consumption: 140
• Power consumption (typical): 6.7
• Operating temperature (T-T): -10 - 50
• Operating relative humidity (H-H): 10 - 90
• Mobile operating systems supported: Android/iOS 8.0
• Width: 59
• Depth: 142
• Height: 49
• Weight: 290
• Compliance certificates: National Defense Authorization Act (NDAA)
• Number of cameras: 1
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.001734
• Unit Calculated Weight: 0.6
