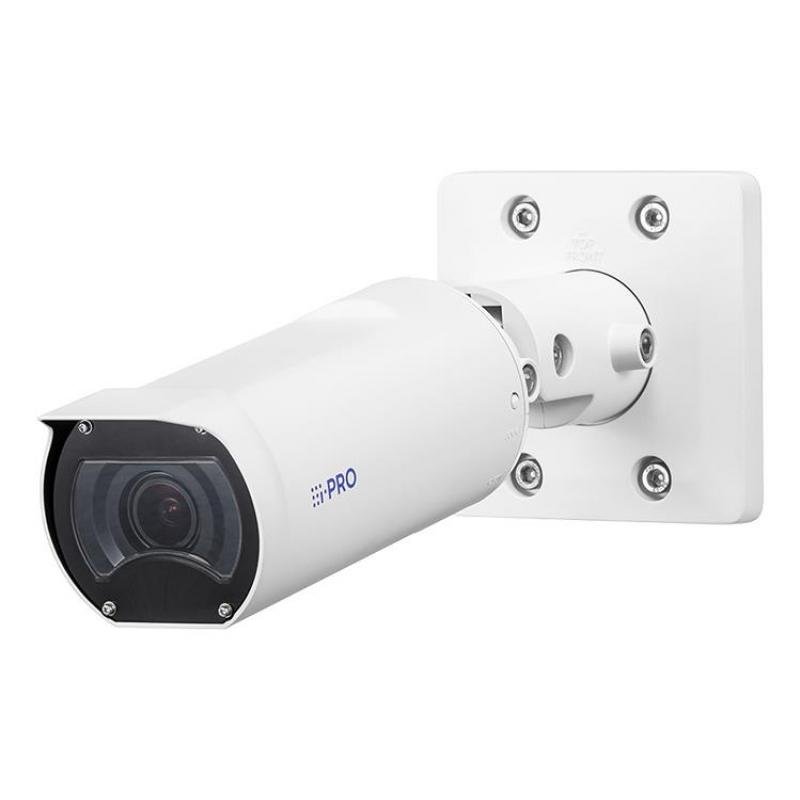

NET CAMERA 2MP BULLET AI OUTD./VANDAL WV-U15350-V3L I-PRO

Technical Specifications

• Summary: i-PRO U-series bullet camera with edge AI image analytics. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Minimum illumination: 0.002 lx, Tilt angle range: 0 - 100°, Pan range: -180 - 180°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 3.2x, Digital zoom: 9.6x, Focal length range: 3.2 - 10.2 mm
• Vendor Homepage: https://i-pro.com/products_and_solutions/us-en/surveillance/products/wv-u15350-v3l
• Name: NET CAMERA 2MP BULLET AI OUTD./VANDAL WV-U15350-V3L I-PRO
• Category Code: FNC
• Model: WV-U15350-V3L
• Form factor: Bullet
• Mounting type: Ceiling/wall
• Product colour: White
• Housing material: Aluminium/Polycarbonate (PC)/Stainless steel
• Protection features: Corrosion resistant/Dust resistant/Water resistant/Wind resistant
• International Protection (IP) code: IP66
• IK code: IK10
• Fog proof: Yes
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Outdoor
• Dynamic range: 120
• Languages support: English/French/German/Italian/Japanese/Portuguese/Russian/Simplified Chinese/Spanish
• Camera pan control: Yes
• Camera tilt control: Yes
• Minimum illumination: 0.002
• Tilt angle range: 0 - 100
• Pan range: -180 - 180
• White balance: ATW/AWC
• Camera shutter speed: 1/4000 - 16/25
• Optical sensor size: 1/2.8
• Sensor type: CMOS
• Zoom capability: Yes
• Optical zoom: 3.2
• Digital zoom: 9.6
• Focal length range: 3.2 - 10.2
• Focus: Motorized
• Maximum aperture number: 1.6
• Detect distance (tele): 138.5
• Detect distance (wide): 24.9
• Identify distance (tele): 13.8
• Identify distance (wide): 2.5
• Normal focusing range: 2
• Observe distance (tele): 55.4
• Observe distance (wide): 10
• Recognize distance (tele): 27.7
• Recognize distance (wide): 5
• Night vision: Yes
• Night vision distance: 42
• LED type: IR
• Maximum resolution: 1920 x 1080
• Total megapixels: 2
• Video formats supported: H.264/H.265
• Supported graphics resolutions: 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/320 x 180/320 x 240/640 x 360/640 x 480 (VGA)
• Noise reduction: Yes
• Back Light Compensation (BLC): Yes
• Highlight Compensation (HLC): Yes
• Ethernet LAN: Yes
• Ethernet interface type: Fast Ethernet
• Networking standards: IEEE 802.1x/IEEE 802.3af
• Supported network protocols: IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, FTP, SFTP, LLDP, MQTT IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3,
• Number of simultaneous live view channels: 14
• Card reader integrated: Yes
• Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
• Maximum memory card size: 512
• Alert notification type: E-mail
• Intelligent Video Surveillance (IVS) system features: Scene change
• Privacy protection: Yes
• Security algorithms: FIPS 140-3/HTTPS
• Video motion detection: Yes
• Web browser: Yes
• Power source type: PoE
• Power consumption: 200
• Power consumption (Power over Ethernet (PoE)): 9.6
• Power over Ethernet (PoE): Yes
• Waste Electrical and Electronic Equipment (WEEE) compliance: Yes
• Operating temperature (T-T): -30 - 50
• Storage temperature (T-T): -30 - 60
• Operating relative humidity (H-H): 10 - 100
• Storage relative humidity (H-H): 10 - 95
• Mobile operating systems supported: Android/iOS/iOS 8.0/iPadOS
• Width: 112.5
• Depth: 298.5
• Height: 112.5
• Weight: 1000
• Compliance certificates: CE/Federal Communications Commission (FCC)/National Defense Authorization Act (NDAA)/UKCA/UL
• Number of cameras: 1
• Audio input: 3.5mm
• Audio output: 3.5mm
• Browser supported: Microsoft Edge, Firefox, Google Chrome
• Data transfer rate: 100
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.001734
• Unit Calculated Weight: 1.5
