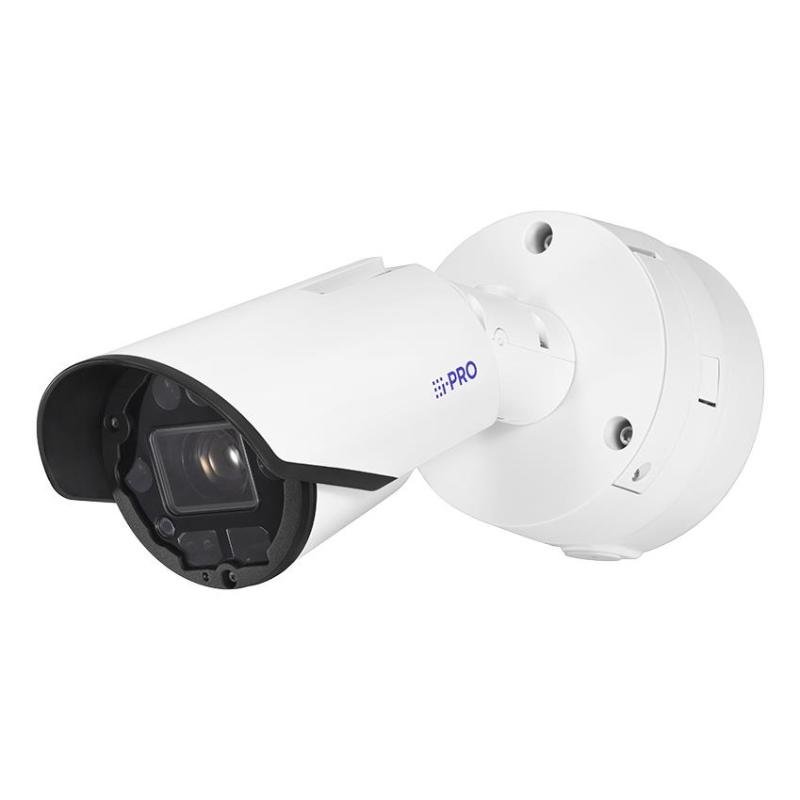

NET CAMERA 2MP BULLET AI OUTD./WV-S15301-Z1L I-PRO

NET CAMERA 2MP BULLET AI OUTD./WV-S15301-Z1L I-PRO
NET CAMERA 2MP BULLET AI OUTD./WV-S15301-Z1L I-PRO
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Total megapixels: 2
  • Ethernet LAN: No
Врз основа на 0 коментари. - Напиши коментар
77,898ден.
  • Достапност:
  • Бренд: I-PRO
  • Шифра: 453870
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: i-PRO WV-S15301-Z1L. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Angle of rotation: 270°, Tilt angle range: 0 - 100°, Pan range: 0 - 180°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 10x, Digital zoom: 160x, Focal length range: 4.7 - 47 mm
  • Vendor Homepage: https://i-pro.com/products_and_solutions/us-en/surveillance/products/wv-s15301-z1l
  • Name: NET CAMERA 2MP BULLET AI OUTD./WV-S15301-Z1L I-PRO
  • Category Code: FNC
  • Form factor: Bullet
  • Mounting type: Ceiling/wall
  • Product colour: White
  • Housing material: Aluminium/Polycarbonate (PC)
  • International Protection (IP) code: IP66, IP67
  • IK code: IK10
  • Fog proof: Yes
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Outdoor
  • Preset points: Yes
  • Wide Dynamic Range (WDR): Yes
  • Alarm input/output: Yes
  • Dynamic range: 144
  • Languages support: English/French/German/Italian/Japanese/Portuguese/Russian/Simplified Chinese/Spanish
  • Angle of rotation: 270
  • Tilt angle range: 0 - 100
  • Pan range: 0 - 180
  • White balance: ATW/AWC
  • Camera shutter speed: 16/30 - 1/10000
  • Optical sensor size: 1/2.8
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Optical zoom: 10
  • Digital zoom: 160
  • Focal length range: 4.7 - 47
  • Focus: Motorized
  • Detect distance (tele): 666
  • Detect distance (wide): 63.7
  • Identify distance (tele): 66.6
  • Identify distance (wide): 6.4
  • Normal focusing range: 1.5
  • Observe distance (tele): 266.4
  • Observe distance (wide): 25.5
  • Recognize distance (tele): 133.2
  • Recognize distance (wide): 12.7
  • Total megapixels: 2
  • Noise reduction: Yes
  • Back Light Compensation (BLC): Yes
  • Highlight Compensation (HLC): Yes
  • Image stabilizer: Yes
  • Audio system full duplex: Yes
  • Audio formats supported: AAC-LC/G.711/G.726
  • Audio detection: Yes
  • Supported network protocols: IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, FTP, SFTP, LLDP, MQTT IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3,
  • Number of users: 14
  • Streaming method: Multicast/Unicast
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Maximum memory card size: 512
  • Alert notification type: E-mail
  • Security algorithms: FIPS 140-2
  • Web browser: Yes
  • Power source type: PoE
  • Power consumption: 600
  • Power consumption (Power over Ethernet (PoE)): 24.8
  • DC output voltage: 12,54
  • DC output current: 1.3
  • Operating temperature (T-T): -40 - 60
  • Storage temperature (T-T): -30 - 60
  • Operating relative humidity (H-H): 10 - 100
  • Mobile operating systems supported: Android/iOS
  • Width: 456
  • Depth: 168
  • Weight: 3600
  • Compliance certificates: cUL/Electromagnetic Compatibility (EMC)/Federal Communications Commission (FCC)/National Defense Authorization Act (NDAA)/UL
  • Number of cameras: 1
  • Output impedance: 600
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.01
  • Unit Calculated Weight: 4
Specifications
Alarm input/outputYes
Alert notification typeE-mail
Angle of rotation270
Audio detectionYes
Audio formats supportedAAC-LC/G.711/G.726
Audio system full duplexYes
Back Light Compensation (BLC)Yes
Camera shutter speed16/30 - 1/10000
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Compliance certificatescUL/Electromagnetic Compatibility (EMC)/Federal Communications Commission (FCC)/National Defense Authorization Act (NDAA)/UL
Connectivity technologyWired
DC output current1.3
DC output voltage12,54
Depth168
Detect distance (tele)666
Detect distance (wide)63.7
Digital zoom160
Dynamic range144
Focal length range4.7 - 47
FocusMotorized
Fog proofYes
Form factorBullet
Highlight Compensation (HLC)Yes
Housing materialAluminium/Polycarbonate (PC)
Identify distance (tele)66.6
Identify distance (wide)6.4
IK codeIK10
Image stabilizerYes
International Protection (IP) codeIP66, IP67
Languages supportEnglish/French/German/Italian/Japanese/Portuguese/Russian/Simplified Chinese/Spanish
Maximum memory card size512
Mobile operating systems supportedAndroid/iOS
Mounting typeCeiling/wall
Noise reductionYes
Normal focusing range1.5
Number of cameras1
Number of users14
Observe distance (tele)266.4
Observe distance (wide)25.5
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-40 - 60
Optical sensor size1/2.8
Optical zoom10
Output impedance600
Pan range0 - 180
Placement supportedOutdoor
Power consumption (Power over Ethernet (PoE))24.8
Power source typePoE
Preset pointsYes
Product colourWhite
Recognize distance (tele)133.2
Recognize distance (wide)12.7
Security algorithmsFIPS 140-2
Sensor typeCMOS
Storage temperature (T-T)-30 - 60
Streaming methodMulticast/Unicast
Summaryi-PRO WV-S15301-Z1L. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Angle of rotation: 270°, Tilt angle range: 0 - 100°, Pan range: 0 - 180°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 10x, Digital zoom: 160x, Focal length range: 4.7 - 47 mm
Supported network protocolsIPv6: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, FTP, SFTP, LLDP, MQTT IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3,
Tilt angle range0 - 100
Total megapixels2
TypeIP security camera
Web browserYes
Weight3600
White balanceATW/AWC
Wide Dynamic Range (WDR)Yes
Width456
Zoom capabilityYes
Specs
Category CodeFNC
Description

  • 2MP Bullet camera
  • Up to 3 Edge AI analytic apps
  • 10x optical zoom
  • Built-in IR LED (250m/820ft)
  • IP66, IP67, IK10 certified
  • Built-in FIPS 140-2 Level 3 Certified SecureElement (EdgeLock® SE050F NXP® Semiconductors)
  • NDAA Compliant

NameNET CAMERA 2MP BULLET AI OUTD./WV-S15301-Z1L I-PRO
PictureUrlhttps://static.elko.cloud/ProductImages/2c66dcdd-1bcd-467b-90ae-d98fc54c7f59.Jpeg
Power consumption600
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/2c66dcdd-1bcd-467b-90ae-d98fc54c7f59.Jpeg
Unit Calculated Volume0.01
Unit Calculated Weight4
Units per Shipping Box1
Vendor Homepagehttps://i-pro.com/products_and_solutions/us-en/surveillance/products/wv-s15301-z1l
