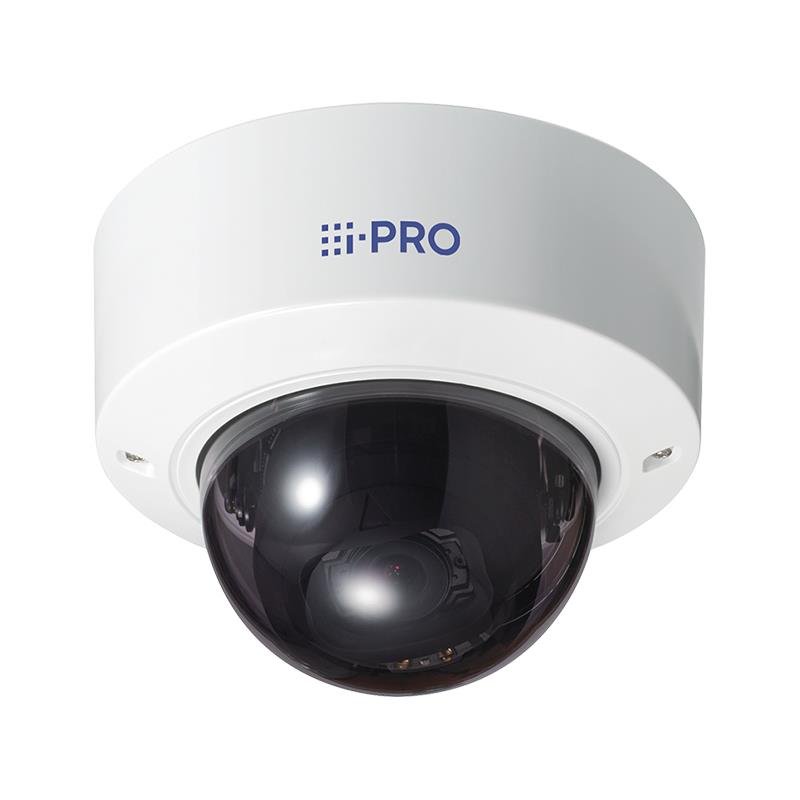

NET CAMERA 2MP DOME AI INDOOR/VANDAL WV-S2236LGA I-PRO

NET CAMERA 2MP DOME AI INDOOR/VANDAL WV-S2236LGA I-PRO
NET CAMERA 2MP DOME AI INDOOR/VANDAL WV-S2236LGA I-PRO
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 2048 x 1536
  • Total megapixels: 2
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
47,014ден.
  • Достапност:
  • Бренд: I-PRO
  • Шифра: 454067
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: i-PRO WV-S2236LGA. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.017 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 27 - 114°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"), Number of effective pixels (H x V): 5.57 x 3.13 pixels. Optical zoom: 9.3x, Focal length range: 2.9 - 9 mm, Focus: Motorized/Manual
  • Vendor Homepage: https://i-pro.com/products_and_solutions/en/surveillance/products/wv-s2236lga
  • Name: NET CAMERA 2MP DOME AI INDOOR/VANDAL WV-S2236LGA I-PRO
  • Category Code: FNC
  • Form factor: Dome
  • Mounting type: Ceiling
  • Product colour: Black/White
  • Housing material: Polycarbonate (PC)
  • Protection features: Shock resistant/Vandal proof
  • IK code: IK10
  • Fog proof: Yes
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Indoor
  • Alarm input/output: Yes
  • Dynamic range: 144
  • Languages support: English/French/German/Italian/Japanese/Portuguese/Russian/Spanish
  • Number of languages: 9
  • Certification: UL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1, FCC (Part15 ClassA), ICES-003 ClassA, EN55032 ClassB, EN55035
  • Camera tilt control: Yes
  • Minimum illumination: 0.017
  • Angle of rotation: 360
  • Lens viewing angle, horizontal: 27 - 114
  • Lens viewing angle, vertical: 20 - 60
  • Tilt angle range: -30 - 85
  • White balance: ATW/AWC
  • Camera shutter speed: 1/60 - 1/10000
  • Number of Privacy masking areas: 8
  • Number of sensors: 1
  • Optical sensor size: 1/2.8
  • Number of effective pixels (H x V): 5.57 x 3.13
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Optical zoom: 9.3
  • Number of lenses: 1
  • Focal length range: 2.9 - 9
  • Auto focus: Yes
  • Focus: Motorized/Manual
  • Maximum aperture number: 2.5
  • Minimum aperture number: 1.3
  • Closest focusing distance: 0.3
  • Detect distance (tele): 118.2
  • Detect distance (wide): 24.9
  • Identify distance (tele): 11.8
  • Identify distance (wide): 2.5
  • Observe distance (tele): 47.3
  • Observe distance (wide): 10
  • Recognize distance (tele): 23.6
  • Recognize distance (wide): 5
  • Night vision: Yes
  • Night vision distance: 50
  • LED type: IR
  • Maximum resolution: 2048 x 1536
  • Total megapixels: 2
  • Video compression formats: H.264/H.265
  • Supported graphics resolutions: 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/320 x 180/320 x 288 (QVGA)/640 x 360/640 x 480 (VGA)
  • Frame rate: 60
  • Noise reduction: Yes
  • Gain control type: Auto
  • Back Light Compensation (BLC): Yes
  • Bit rate control: Constant Bit Rate (CBR),Variable Bit Rate (VBR)
  • Highlight Compensation (HLC): Yes
  • Privacy masking: Yes
  • Text caption overlay: Yes
  • Audio system full duplex: Yes
  • Audio formats supported: AAC-LC/G.711/G.726
  • Audio detection: Yes
  • Bit rate range: 16 - 128
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet
  • Networking standards: IEEE 802.3af
  • Supported network protocols: IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X,DiffServ, SFTP, MQTT, LLDP IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP,
  • Number of users: 14
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSDHC/MicroSDXC
  • Maximum memory card size: 512
  • Ethernet LAN (RJ-45) ports: 1
  • Microphone in: Yes
  • Alert notification type: E-mail
  • Intelligent Video Surveillance (IVS) system features: Face detection/Vehicle detection
  • Web browser: Yes
  • Power source type: DC,PoE
  • Power consumption: 720
  • Power consumption (typical): 8.6
  • Power consumption (Power over Ethernet (PoE)): 8.7
  • DC output voltage: 12,48
  • Operating temperature (T-T): -10 - 50
  • Operating relative humidity (H-H): 10 - 90
  • Width: 129.5
  • Depth: 129.5
  • Height: 102.5
  • Weight: 570
  • Compliance certificates: National Defense Authorization Act (NDAA)
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.001734
  • Unit Calculated Weight: 0.8
Specifications
Alarm input/outputYes
Alert notification typeE-mail
Angle of rotation360
Audio detectionYes
Audio formats supportedAAC-LC/G.711/G.726
Audio system full duplexYes
Auto focusYes
Back Light Compensation (BLC)Yes
Bit rate controlConstant Bit Rate (CBR),Variable Bit Rate (VBR)
Bit rate range16 - 128
Camera shutter speed1/60 - 1/10000
Camera tilt controlYes
Card reader integratedYes
CertificationUL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1, FCC (Part15 ClassA), ICES-003 ClassA, EN55032 ClassB, EN55035
Closest focusing distance0.3
Compatible memory cardsMicroSDHC/MicroSDXC
Compliance certificatesNational Defense Authorization Act (NDAA)
Connectivity technologyWired
DC output voltage12,48
Depth129.5
Detect distance (tele)118.2
Detect distance (wide)24.9
Dynamic range144
Ethernet interface typeFast Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Focal length range2.9 - 9
FocusMotorized/Manual
Fog proofYes
Form factorDome
Frame rate60
Gain control typeAuto
Height102.5
Highlight Compensation (HLC)Yes
Housing materialPolycarbonate (PC)
Identify distance (tele)11.8
Identify distance (wide)2.5
IK codeIK10
Intelligent Video Surveillance (IVS) system featuresFace detection/Vehicle detection
Languages supportEnglish/French/German/Italian/Japanese/Portuguese/Russian/Spanish
LED typeIR
Lens viewing angle, horizontal27 - 114
Lens viewing angle, vertical20 - 60
Maximum aperture number2.5
Maximum memory card size512
Maximum resolution2048 x 1536
Microphone inYes
Minimum aperture number1.3
Minimum illumination0.017
Mounting typeCeiling
Networking standardsIEEE 802.3af
Night visionYes
Night vision distance50
Noise reductionYes
Number of effective pixels (H x V)5.57 x 3.13
Number of languages9
Number of lenses1
Number of Privacy masking areas8
Number of sensors1
Number of users14
Observe distance (tele)47.3
Observe distance (wide)10
Operating relative humidity (H-H)10 - 90
Operating temperature (T-T)-10 - 50
Optical sensor size1/2.8
Optical zoom9.3
Placement supportedIndoor
Power consumption (Power over Ethernet (PoE))8.7
Power consumption (typical)8.6
Power source typeDC,PoE
Privacy maskingYes
Product colourBlack/White
Protection featuresShock resistant/Vandal proof
Recognize distance (tele)23.6
Recognize distance (wide)5
Sensor typeCMOS
Summaryi-PRO WV-S2236LGA. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.017 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 27 - 114°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"), Number of effective pixels (H x V): 5.57 x 3.13 pixels. Optical zoom: 9.3x, Focal length range: 2.9 - 9 mm, Focus: Motorized/Manual
Supported graphics resolutions1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/320 x 180/320 x 288 (QVGA)/640 x 360/640 x 480 (VGA)
Supported network protocolsIPv6: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X,DiffServ, SFTP, MQTT, LLDP IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP,
Text caption overlayYes
Tilt angle range-30 - 85
Total megapixels2
TypeIP security camera
Video compression formatsH.264/H.265
Web browserYes
Weight570
White balanceATW/AWC
Width129.5
Zoom capabilityYes
Specs
Category CodeFNC
Description

S-series 2MP Network camera with AI engine

2MP(1080p) IR Indoor Vandal Dome Network Camera with AI Engine


  • 2MP Indoor vandal dome camera
  • Up to 2 Edge AI analytic apps
  • Built-in IR-LED(50m, 164ft)
  • IK10 certified
  • Built-in FIPS 140-2 Level 3 Certified SecureElement (EdgeLock SE050F NXP Semiconductors)
  • NDAA Compliant

NameNET CAMERA 2MP DOME AI INDOOR/VANDAL WV-S2236LGA I-PRO
PictureUrlhttps://static.elko.cloud/ProductImages/1a7a115c-19fb-4928-971f-4013015ac947.Jpeg
Power consumption720
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/1a7a115c-19fb-4928-971f-4013015ac947.Jpeg
Unit Calculated Volume0.001734
Unit Calculated Weight0.8
Units per Shipping Box1
Vendor Homepagehttps://i-pro.com/products_and_solutions/en/surveillance/products/wv-s2236lga
