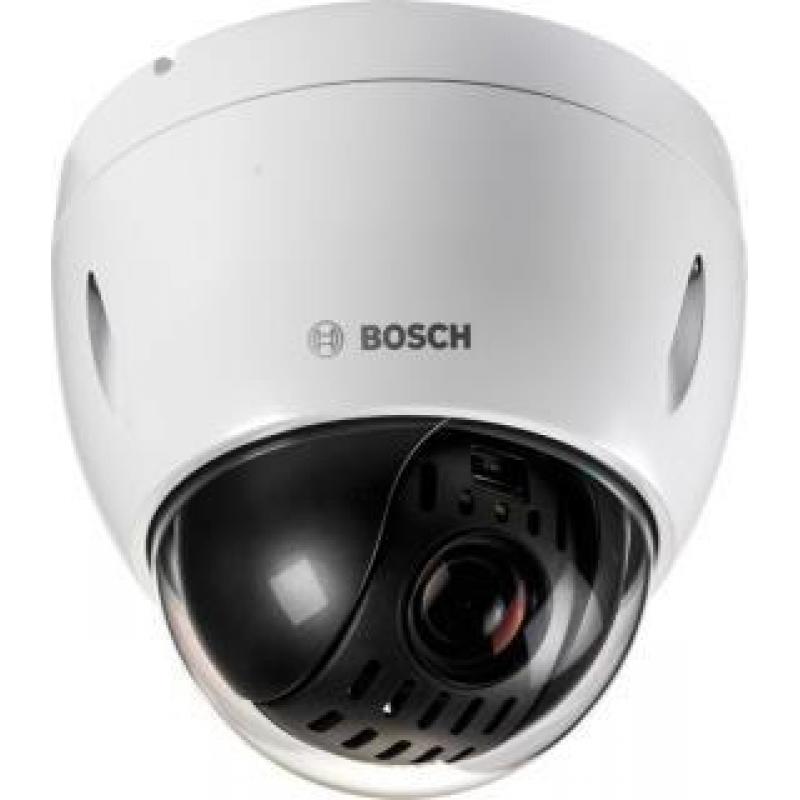

NET CAMERA 2MP IP PTZ DOME/NDP-4502-Z12 BOSCH

NET CAMERA 2MP IP PTZ DOME/NDP-4502-Z12 BOSCH
NET CAMERA 2MP IP PTZ DOME/NDP-4502-Z12 BOSCH
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 1920 x 1080
  • Total megapixels: 2.13
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
58,800ден.
  • Достапност:
  • Бренд: BOSCH
  • Шифра: 315162
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Bosch AUTODOME IP 4000i. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.01 lx, Field of view (FOV) angle: 58.5°, Tilt angle range: -90 - 0°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"), Number of effective pixels (H x V): 1945 x 1097 pixels. Optical zoom: 12x, Digital zoom: 16x, Focal length range: 5.3 - 64 mm
  • Vendor Homepage: https://www.boschsecurity.com/
  • Name: NET CAMERA 2MP IP PTZ DOME/NDP-4502-Z12 BOSCH
  • Category Code: FNC
  • Model: NDP-4502-Z12
  • Form factor: Dome
  • Mounting type: Ceiling/wall
  • Product colour: Black/White
  • Housing material: Aluminium/Polycarbonate (PC)
  • Protection features: Impact resistant
  • International Protection (IP) code: IP65
  • IK code: IK10
  • Fog proof: Yes
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Indoor
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Alarm input/output: Yes
  • Remote viewing: Yes
  • Colour temperature: 3100
  • Languages support: Dutch/English/French/German/Italian/Japanese/Polish/Portuguese/Russian/Simplified Chinese/Spanish
  • Number of languages: 11
  • Camera pan control: Yes
  • Camera tilt control: Yes
  • Minimum illumination: 0.01
  • Field of view (FOV) angle: 58.5
  • Tilt angle range: -90 - 0
  • Tilt speed: 120
  • Pan range: 0 - 360
  • Pan speed: 160
  • White balance: Auto/Manual/Sodium lamp
  • Optical sensor size: 1/2.8
  • Progressive scan: Yes
  • Number of effective pixels (H x V): 1945 x 1097
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Optical zoom: 12
  • Digital zoom: 16
  • Number of lenses: 1
  • Focal length range: 5.3 - 64
  • Auto focus: Yes
  • Focus: Motorized
  • Night vision: Yes
  • Maximum resolution: 1920 x 1080
  • Total megapixels: 2.13
  • Video compression formats: H.264/H.265/HEVC/M-JPEG
  • Supported graphics resolutions: 1280 x 720 (HD 720)/1920 x 1080 (HD 1080)
  • Supported video modes: 1080p/720p
  • Frame rate: 60
  • Video streaming: Yes
  • Noise reduction: Yes
  • Back Light Compensation (BLC): Yes
  • Privacy masking: Yes
  • Audio input channels: 1.0
  • Audio output channels: 1.0
  • Audio formats supported: AAC/G.711
  • Signal-to-Noise Ratio (SNR): 50
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet
  • Supported network protocols: Pv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, ARP, DHCP, APIPA (Auto-IP, link local address), NTP (SNTP), SNMP (V1, V3, MIB-II), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, noip.com), SMTP, iSCSI, UPnP (SSDP), Dif
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSDHC/MicroSDXC
  • Ethernet LAN (RJ-45) ports: 1
  • Microphone in: Yes
  • Headphone outputs: 1
  • DC-in jack: Yes
  • Security algorithms: 3DES/AES/DES/SSL/TLS/TLS
  • Power source type: DC,PoE
  • Power consumption (typical): 12
  • Power consumption (Power over Ethernet (PoE)): 12
  • Operating temperature (T-T): -10 - 60
  • Storage temperature (T-T): -40 - 60
  • Operating relative humidity (H-H): 0 - 90
  • Height: 162.4
  • Diameter: 170.2
  • Weight: 1880
  • Number of cameras: 1
  • Mounting brackets included: Yes
  • Screws included: Yes
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.02
  • Unit Calculated Weight: 3
Specifications
Alarm input/outputYes
Audio formats supportedAAC/G.711
Audio input channels1.0
Audio output channels1.0
Auto focusYes
Back Light Compensation (BLC)Yes
Camera pan controlYes
Camera tilt controlYes
Card reader integratedYes
Colour temperature3100
Compatible memory cardsMicroSDHC/MicroSDXC
Connectivity technologyWired
Day/night modeYes
DC-in jackYes
Diameter170.2
Digital zoom16
Ethernet interface typeFast Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Field of view (FOV) angle58.5
Focal length range5.3 - 64
FocusMotorized
Fog proofYes
Form factorDome
Frame rate60
Headphone outputs1
Height162.4
Housing materialAluminium/Polycarbonate (PC)
IK codeIK10
International Protection (IP) codeIP65
Languages supportDutch/English/French/German/Italian/Japanese/Polish/Portuguese/Russian/Simplified Chinese/Spanish
Maximum resolution1920 x 1080
Microphone inYes
Minimum illumination0.01
Mounting brackets includedYes
Mounting typeCeiling/wall
Night visionYes
Noise reductionYes
Number of cameras1
Number of effective pixels (H x V)1945 x 1097
Number of languages11
Number of lenses1
Operating relative humidity (H-H)0 - 90
Operating temperature (T-T)-10 - 60
Optical sensor size1/2.8
Optical zoom12
Pan range0 - 360
Pan speed160
Placement supportedIndoor
Power consumption (Power over Ethernet (PoE))12
Power consumption (typical)12
Power source typeDC,PoE
Privacy maskingYes
Product colourBlack/White
Progressive scanYes
Protection featuresImpact resistant
Remote viewingYes
Screws includedYes
Security algorithms3DES/AES/DES/SSL/TLS/TLS
Sensor typeCMOS
Signal-to-Noise Ratio (SNR)50
Storage temperature (T-T)-40 - 60
SummaryBosch AUTODOME IP 4000i. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.01 lx, Field of view (FOV) angle: 58.5°, Tilt angle range: -90 - 0°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"), Number of effective pixels (H x V): 1945 x 1097 pixels. Optical zoom: 12x, Digital zoom: 16x, Focal length range: 5.3 - 64 mm
Supported graphics resolutions1280 x 720 (HD 720)/1920 x 1080 (HD 1080)
Supported network protocolsPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, ARP, DHCP, APIPA (Auto-IP, link local address), NTP (SNTP), SNMP (V1, V3, MIB-II), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, noip.com), SMTP, iSCSI, UPnP (SSDP), Dif
Supported video modes1080p/720p
Tilt angle range-90 - 0
Tilt speed120
Total megapixels2.13
TypeIP security camera
Video compression formatsH.264/H.265/HEVC/M-JPEG
Video streamingYes
Weight1880
White balanceAuto/Manual/Sodium lamp
Wide Dynamic Range (WDR)Yes
Zoom capabilityYes
Specs
Category CodeFNC
Description

The AUTODOME IP 4000i is a compact, indoor PTZ dome camera with a high-resolution 1080p60 HD sensor and a 12x optical zoom that allows operators to monitor wide scenes without losing any details. The camera’s aesthetic design and flexible mounting options allow unobtrusive surveillance of large halls, reception areas, or waiting areas that would otherwise require multiple cameras for effective surveillance.

  • Perfect combination of style and technology for indoor installations that require high-quality imaging in a compact and aesthetic dome housing
  • Integrated 12x optical zoom that clearly identifies people (90 m / 295 ft maximum) without loss of any identification details (250 pixels/m)
  • Built-in Essential Video Analytics to trigger relevant alerts and quickly retrieve data
  • Simple installation with flexible mounting options (in-ceiling or surface mounting)

ModelNDP-4502-Z12
NameNET CAMERA 2MP IP PTZ DOME/NDP-4502-Z12 BOSCH
PictureUrlhttps://static.elko.cloud/ProductImages/b0cad1a1-3919-483d-be56-0c5e6cfebdaf.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/b0cad1a1-3919-483d-be56-0c5e6cfebdaf.Jpeg
Unit Calculated Volume0.02
Unit Calculated Weight3
Units per Shipping Box1
Vendor Homepagehttps://www.boschsecurity.com/
