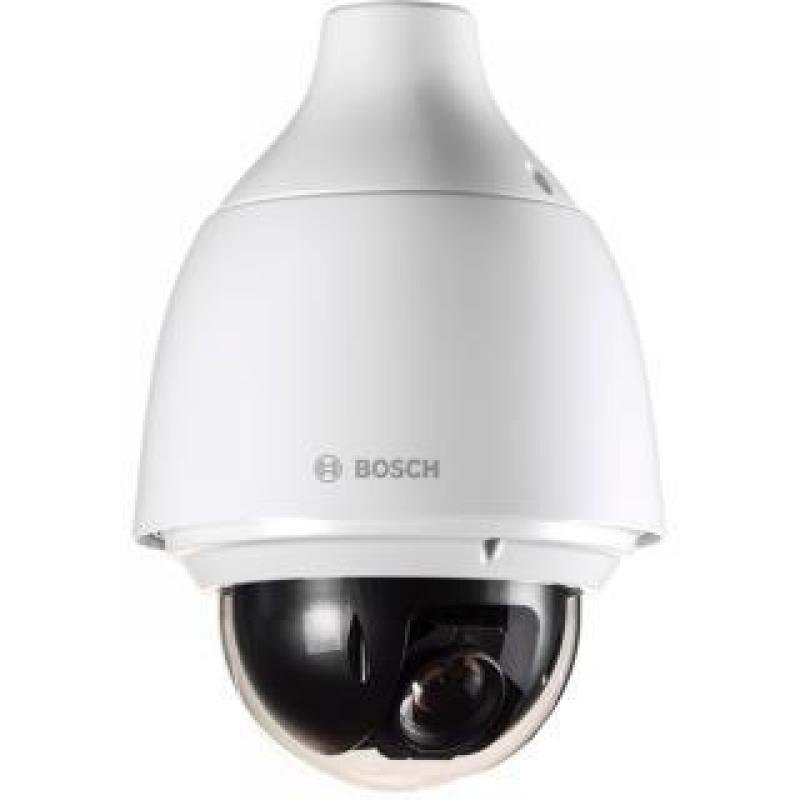

NET CAMERA 2MP IP PTZ DOME/NDP-5512-Z30 BOSCH

NET CAMERA 2MP IP PTZ DOME/NDP-5512-Z30 BOSCH
NET CAMERA 2MP IP PTZ DOME/NDP-5512-Z30 BOSCH
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 1920 x 1080
  • Total megapixels: 2.13
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
102,226ден.
  • Достапност:
  • Бренд: BOSCH
  • Шифра: 337722
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Bosch AUTODOME IP starlight 5000i. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.004 lx, Field of view (FOV) angle: 60.9°, Tilt angle range: -90 - 0°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"), Number of effective pixels (H x V): 1945 x 1097 pixels. Optical zoom: 30x, Digital zoom: 16x, Focal length range: 4.5 - 135 mm
  • Vendor Homepage: https://www.boschsecurity.com/
  • Name: NET CAMERA 2MP IP PTZ DOME/NDP-5512-Z30 BOSCH
  • Category Code: FNC
  • Form factor: Dome
  • Mounting type: Ceiling
  • Product colour: Black/White
  • Housing material: Aluminium/Plastic/Polycarbonate (PC)
  • Protection features: Impact resistant
  • International Protection (IP) code: IP66
  • IK code: IK10
  • Fog proof: Yes
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Indoor & outdoor
  • Preset points: Yes
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Infrared (IR) cut-off filter: Yes
  • Alarm input/output: Yes
  • Dynamic range: 120
  • Camera pan control: Yes
  • Camera tilt control: Yes
  • Minimum illumination: 0.004
  • Field of view (FOV) angle: 60.9
  • Tilt angle range: -90 - 0
  • Tilt speed: 200
  • Pan range: 0 - 360
  • Pan preset speed: 300
  • White balance: ATW/Auto/Manual/Sodium lamp
  • Camera shutter type: Electronic
  • Camera shutter speed: 1/1 - 1/10000
  • Optical sensor size: 1/2.8
  • Progressive scan: Yes
  • Number of effective pixels (H x V): 1945 x 1097
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Optical zoom: 30
  • Digital zoom: 16
  • Number of lenses: 1
  • Focal length range: 4.5 - 135
  • Auto focus: Yes
  • Maximum aperture number: 4.4
  • Minimum aperture number: 1.6
  • Night vision: Yes
  • Maximum resolution: 1920 x 1080
  • Total megapixels: 2.13
  • Video compression formats: H.264/H.265/HEVC/M-JPEG
  • Supported graphics resolutions: 1280 x 1024 (SXGA)/1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/512 x 288/640 x 480 (VGA)/704 x 576/768 x 432
  • Supported video modes: 1080p/720p
  • Frame rate: 60
  • Video intelligence analytic: Yes
  • Noise reduction: Yes
  • Gain control type: Auto
  • Back Light Compensation (BLC): Yes
  • Privacy masking: Yes
  • Audio input channels: 1.0
  • Audio output channels: 1.0
  • Voice codecs: AAC/G.711
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet
  • Networking standards: IEEE 802.3at
  • Supported network protocols: IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, ARP, DHCP, APIPA (Auto-IP, link local address), NTP (SNTP), SNMP (V1, V3, MIB-II), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, no-ip.com), SMTP, iSCSI, UPnP (SSDP), D
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSDHC/MicroSDXC
  • Ethernet LAN (RJ-45) ports: 1
  • Power source type: AC,PoC
  • Power consumption (max): 24
  • Operating temperature (T-T): -40 - 60
  • Storage temperature (T-T): -40 - 60
  • Operating relative humidity (H-H): 0 - 100
  • Height: 303.6
  • Diameter: 207
  • Number of cameras: 1
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.02873
  • Unit Calculated Weight: 4
Specifications
Alarm input/outputYes
Audio input channels1.0
Audio output channels1.0
Auto focusYes
Back Light Compensation (BLC)Yes
Camera pan controlYes
Camera shutter speed1/1 - 1/10000
Camera shutter typeElectronic
Camera tilt controlYes
Card reader integratedYes
Compatible memory cardsMicroSDHC/MicroSDXC
Connectivity technologyWired
Day/night modeYes
Diameter207
Digital zoom16
Dynamic range120
Ethernet interface typeFast Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Field of view (FOV) angle60.9
Focal length range4.5 - 135
Fog proofYes
Form factorDome
Frame rate60
Gain control typeAuto
Height303.6
Housing materialAluminium/Plastic/Polycarbonate (PC)
IK codeIK10
Infrared (IR) cut-off filterYes
International Protection (IP) codeIP66
Maximum aperture number4.4
Maximum resolution1920 x 1080
Minimum aperture number1.6
Minimum illumination0.004
Mounting typeCeiling
Networking standardsIEEE 802.3at
Night visionYes
Noise reductionYes
Number of cameras1
Number of effective pixels (H x V)1945 x 1097
Number of lenses1
Operating relative humidity (H-H)0 - 100
Operating temperature (T-T)-40 - 60
Optical sensor size1/2.8
Optical zoom30
Pan preset speed300
Pan range0 - 360
Placement supportedIndoor & outdoor
Power consumption (max)24
Power source typeAC,PoC
Preset pointsYes
Privacy maskingYes
Product colourBlack/White
Progressive scanYes
Protection featuresImpact resistant
Sensor typeCMOS
Storage temperature (T-T)-40 - 60
SummaryBosch AUTODOME IP starlight 5000i. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.004 lx, Field of view (FOV) angle: 60.9°, Tilt angle range: -90 - 0°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"), Number of effective pixels (H x V): 1945 x 1097 pixels. Optical zoom: 30x, Digital zoom: 16x, Focal length range: 4.5 - 135 mm
Supported graphics resolutions1280 x 1024 (SXGA)/1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/512 x 288/640 x 480 (VGA)/704 x 576/768 x 432
Supported network protocolsIPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, ARP, DHCP, APIPA (Auto-IP, link local address), NTP (SNTP), SNMP (V1, V3, MIB-II), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, no-ip.com), SMTP, iSCSI, UPnP (SSDP), D
Supported video modes1080p/720p
Tilt angle range-90 - 0
Tilt speed200
Total megapixels2.13
TypeIP security camera
Video compression formatsH.264/H.265/HEVC/M-JPEG
Video intelligence analyticYes
Voice codecsAAC/G.711
White balanceATW/Auto/Manual/Sodium lamp
Wide Dynamic Range (WDR)Yes
Zoom capabilityYes
Specs
Category CodeFNC
Description

  • Starlight camera technology with excellent low-light performance
  • 120dB dynamic range lets you capture details in overexposed situations with confidence
  • Intelligent streaming, IDNR and H.265 reduce bit rate by up to 80%
  • Built-in Essential Video Analytics to trigger relevant alerts and quickly retrieve data
  • High resolution bubble to ensure maximum effective resolution output
  • Simple installation with flexible mounting options (in-ceiling or pendant mounting)

NameNET CAMERA 2MP IP PTZ DOME/NDP-5512-Z30 BOSCH
