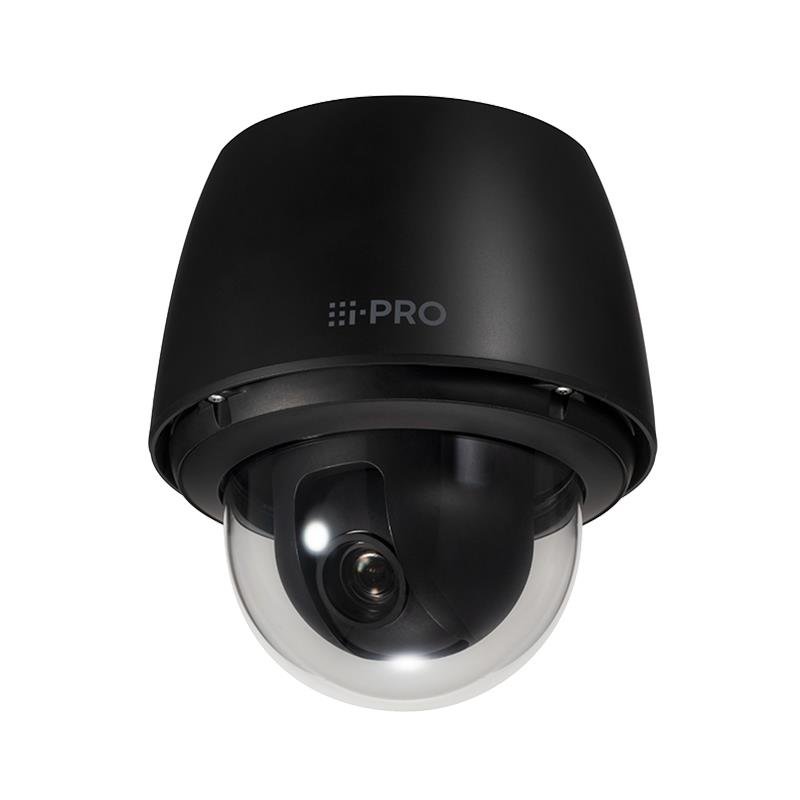

NET CAMERA 2MP PTZ AI OUTDOOR/VANDAL WV-S65340-Z2N1 I-PRO

NET CAMERA 2MP PTZ AI OUTDOOR/VANDAL WV-S65340-Z2N1 I-PRO
NET CAMERA 2MP PTZ AI OUTDOOR/VANDAL WV-S65340-Z2N1 I-PRO
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 2048 x 1536
  • Total megapixels: 2
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
145,993ден.
  • Достапност:
  • Бренд: I-PRO
  • Шифра: 454058
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: i-PRO WV-S65340-Z2N1. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, Form factor: Dome. Minimum illumination: 0.0004 lx, Lens viewing angle, horizontal: 2.8 - 77°, Lens viewing angle, vertical: 2.2 - 44°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 31x, Focal length range: 4.0 - 84.6 mm, Detect distance (wide): 51.9 m
  • Vendor Homepage: https://i-pro.com/products_and_solutions/en/surveillance/products/wv-s65340-z2n1
  • Name: NET CAMERA 2MP PTZ AI OUTDOOR/VANDAL WV-S65340-Z2N1 I-PRO
  • Category Code: FNC
  • Form factor: Dome
  • Mounting type: Ceiling
  • Product colour: Black
  • Housing material: Aluminium/Polycarbonate (PC)/Stainless steel
  • International Protection (IP) code: IP66, IP67
  • IK code: IK10
  • Fog proof: Yes
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Outdoor
  • PTZ control: Yes
  • PTZ modes: Preset point
  • Auto-tracking: Yes
  • Auto pan mode: Yes
  • Auto patrol mode: Yes
  • Preset points: Yes
  • Alarm input/output: Yes
  • Dynamic range: 144
  • Languages support: English/French/German/Italian/Japanese/Portuguese/Russian/Spanish
  • Number of languages: 9
  • Certification: UL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1, FCC (Part15 ClassA), ICES-003 Issue 7 ClassA, EN55032 ClassA, EN55035
  • Camera tilt control: Yes
  • Minimum illumination: 0.0004
  • Lens viewing angle, horizontal: 2.8 - 77
  • Lens viewing angle, vertical: 2.2 - 44
  • Tilt angle range: -30 - 90
  • Tilt preset speed: 500
  • Tilt speed: 150
  • Pan range: 0 - 350
  • Pan preset speed: 500
  • Pan speed: 150
  • White balance: ATW/AWC
  • Camera shutter speed: 1/25 - 1/10000
  • Number of Privacy masking areas: 32
  • Number of sensors: 1
  • Optical sensor size: 1/2.8
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Optical zoom: 31
  • Number of lenses: 1
  • Focal length range: 4.0 - 84.6
  • Auto focus: Yes
  • Maximum aperture number: 4.5
  • Minimum aperture number: 1.6
  • Closest focusing distance: 1.5
  • Detect distance (tele): 1293.8
  • Detect distance (wide): 51.9
  • Identify distance (tele): 129.4
  • Identify distance (wide): 5.2
  • Observe distance (tele): 517.5
  • Observe distance (wide): 20.8
  • Recognize distance (tele): 258.8
  • Recognize distance (wide): 10.4
  • Maximum resolution: 2048 x 1536
  • Total megapixels: 2
  • Video formats supported: H.264/H.265/M-JPEG
  • Supported graphics resolutions: 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/320 x 180/320 x 288 (QVGA)/640 x 360/640 x 480 (VGA)
  • Frame rate: 60
  • Noise reduction: Yes
  • Gain control type: Auto
  • Back Light Compensation (BLC): Yes
  • Bit rate control: Constant Bit Rate (CBR),Variable Bit Rate (VBR)
  • Highlight Compensation (HLC): Yes
  • Image stabilizer: Yes
  • Privacy masking: Yes
  • Text caption overlay: Yes
  • Audio formats supported: AAC-LC/G.711/G.726
  • Audio detection: Yes
  • Bit rate range: 16 - 128
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet
  • Networking standards: IEEE 802.3at/IEEE 802.3bt
  • Supported network protocols: IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, SFTP, MQTT, LLDP IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPn
  • Number of users: 14
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Maximum memory card size: 512
  • Ethernet LAN (RJ-45) ports: 1
  • Microphone in: Yes
  • Alert notification type: E-mail
  • Digest authentication: Yes
  • HTTPS encryption: Yes
  • Intelligent Video Surveillance (IVS) system features: Face detection/Scene change/Vehicle detection
  • Security algorithms: FIPS 140-3
  • Video motion detection: Yes
  • Web browser: Yes
  • Power source type: AC,PoE
  • AC input voltage: 24
  • Power consumption: 850
  • Power consumption (max): 53.3
  • Power consumption (Power over Ethernet (PoE)): 50.84
  • Operating temperature (T-T): -30 - 60
  • Operating relative humidity (H-H): 10 - 100
  • Width: 229
  • Depth: 229
  • Height: 278
  • Weight: 4200
  • Compliance certificates: National Defense Authorization Act (NDAA)
  • Number of cameras: 1
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.015
  • Unit Calculated Weight: 4.7
Specifications
AC input voltage24
Alarm input/outputYes
Alert notification typeE-mail
Audio detectionYes
Audio formats supportedAAC-LC/G.711/G.726
Auto focusYes
Auto pan modeYes
Auto patrol modeYes
Auto-trackingYes
Back Light Compensation (BLC)Yes
Bit rate controlConstant Bit Rate (CBR),Variable Bit Rate (VBR)
Bit rate range16 - 128
Camera shutter speed1/25 - 1/10000
Camera tilt controlYes
Card reader integratedYes
CertificationUL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1, FCC (Part15 ClassA), ICES-003 Issue 7 ClassA, EN55032 ClassA, EN55035
Closest focusing distance1.5
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Compliance certificatesNational Defense Authorization Act (NDAA)
Connectivity technologyWired
Depth229
Detect distance (tele)1293.8
Detect distance (wide)51.9
Digest authenticationYes
Dynamic range144
Ethernet interface typeFast Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Focal length range4.0 - 84.6
Fog proofYes
Form factorDome
Frame rate60
Gain control typeAuto
Height278
Highlight Compensation (HLC)Yes
Housing materialAluminium/Polycarbonate (PC)/Stainless steel
HTTPS encryptionYes
Identify distance (tele)129.4
Identify distance (wide)5.2
IK codeIK10
Image stabilizerYes
Intelligent Video Surveillance (IVS) system featuresFace detection/Scene change/Vehicle detection
International Protection (IP) codeIP66, IP67
Languages supportEnglish/French/German/Italian/Japanese/Portuguese/Russian/Spanish
Lens viewing angle, horizontal2.8 - 77
Lens viewing angle, vertical2.2 - 44
Maximum aperture number4.5
Maximum memory card size512
Maximum resolution2048 x 1536
Microphone inYes
Minimum aperture number1.6
Minimum illumination0.0004
Mounting typeCeiling
Networking standardsIEEE 802.3at/IEEE 802.3bt
Noise reductionYes
Number of cameras1
Number of languages9
Number of lenses1
Number of Privacy masking areas32
Number of sensors1
Number of users14
Observe distance (tele)517.5
Observe distance (wide)20.8
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-30 - 60
Optical sensor size1/2.8
Optical zoom31
Pan preset speed500
Pan range0 - 350
Pan speed150
Placement supportedOutdoor
Power consumption (max)53.3
Power consumption (Power over Ethernet (PoE))50.84
Power source typeAC,PoE
Preset pointsYes
Privacy maskingYes
Product colourBlack
PTZ controlYes
PTZ modesPreset point
Recognize distance (tele)258.8
Recognize distance (wide)10.4
Security algorithmsFIPS 140-3
Sensor typeCMOS
Summaryi-PRO WV-S65340-Z2N1. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, Form factor: Dome. Minimum illumination: 0.0004 lx, Lens viewing angle, horizontal: 2.8 - 77°, Lens viewing angle, vertical: 2.2 - 44°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 31x, Focal length range: 4.0 - 84.6 mm, Detect distance (wide): 51.9 m
Supported graphics resolutions1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/320 x 180/320 x 288 (QVGA)/640 x 360/640 x 480 (VGA)
Supported network protocolsIPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, SFTP, MQTT, LLDP IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPn
Text caption overlayYes
Tilt angle range-30 - 90
Tilt preset speed500
Tilt speed150
Total megapixels2
TypeIP security camera
Video formats supportedH.264/H.265/M-JPEG
Video motion detectionYes
Web browserYes
Weight4200
White balanceATW/AWC
Width229
Zoom capabilityYes
Specs
Category CodeFNC
Description

KEY FEATURE

S series models come standard with AI automatic tracking. It can automatically detect, zoom, and track intruders in a wide area, thereby supporting surveillance operators in many scenes. It also achieves the industry‘s highest level of drive durability to withstand high-speed and high-frequency camera movement by the automatic monitoring function.

AI monitoring camera, standard with AI Auto-tracking

AI analysis functionality is standard on the camera side to promote automated surveillance. Accurately detects people and vehicles and automatically zooms in on intruders. Support surveillance operators to ensure that no tracked object is missed. Additional applications can be installed (up to two applications) to expand analysis functions such as AI privacy guard, person/vehicle attribute detection, etc.

Highly durable pan-tilt drive unit Reduced maintenance costs

High durability gear drive achieves PAN and TILT drive durability (3.7 million P&T movements). Low failure rate even with high frequency drive by automatic tracking function and reduced maintenance cost by minimizing the maintenance cycle.

Easy installation

Both pigtail or gromet are available to be flexibly to adapt to the installation environment. Easy Kitting will also save your time for installation.

High security standard

Highest level of security. In addition to digital certificates issued by a third-party organization (GlobalSign), FIPS 140-2 level3-certified hardware is installed.


  • 2MP (1080p) 1920x1080
  • 21x optical zoom
  • Intelligent Auto (with AI Engine)
  • Super Dynamic 144dB
  • Color night vision (0.001 to 0.015 lx)
  • Durable Pan/Tilt gear mechanism
  • ClearSight Coating
  • IP66, IP67, IK10 certified
  • NDAA Compliant
