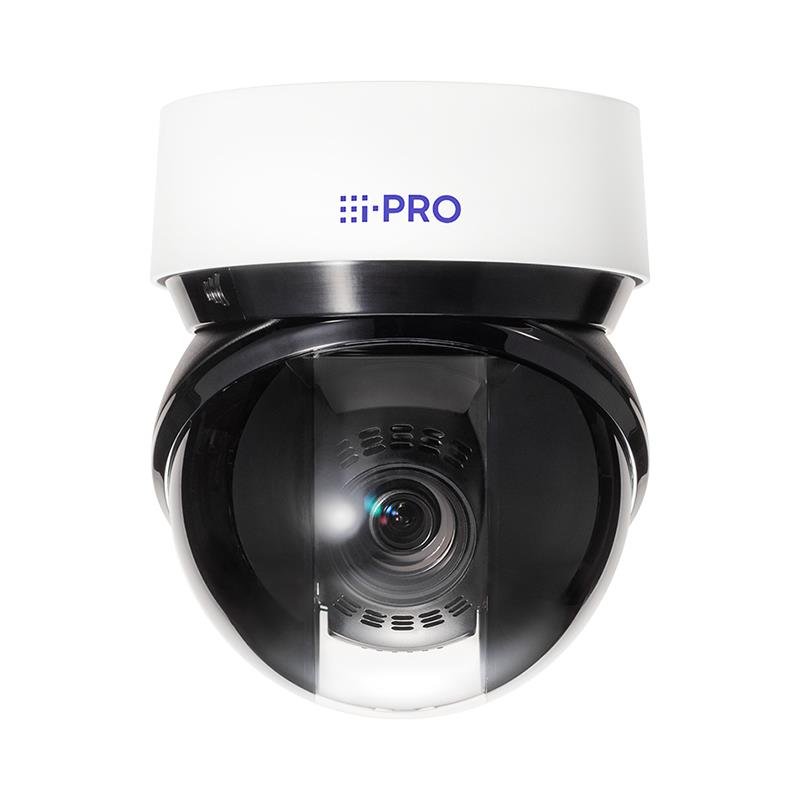

NET CAMERA 2MP PTZ AI OUTD./WV-X66300-Z4LS I-PRO

NET CAMERA 2MP PTZ AI OUTD./WV-X66300-Z4LS I-PRO
NET CAMERA 2MP PTZ AI OUTD./WV-X66300-Z4LS I-PRO
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 2048 x 1536
  • Total megapixels: 2
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
261,613ден.
  • Достапност:
  • Бренд: I-PRO
  • Шифра: 453946
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: i-PRO WV-X66300-Z4LS. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.006 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 1.5 - 65°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"), Number of effective pixels (H x V): 5.57 x 3.13 pixels. Optical zoom: 60x, Focal length range: 4.25 - 170 mm, Detect distance (wide): 60.3 m
  • Vendor Homepage: https://i-pro.com/products_and_solutions/en/surveillance/products/wv-x66300-z4ls
  • Name: NET CAMERA 2MP PTZ AI OUTD./WV-X66300-Z4LS I-PRO
  • Category Code: FNC
  • Form factor: Dome
  • Mounting type: Ceiling
  • Product colour: Black/White
  • Housing material: Aluminium/Polycarbonate (PC)/Stainless steel
  • International Protection (IP) code: IP66
  • IK code: IK10
  • Fog proof: Yes
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Outdoor
  • PTZ control: Yes
  • PTZ modes: Preset point
  • Auto-tracking: Yes
  • Auto pan mode: Yes
  • Auto patrol mode: Yes
  • Preset points: Yes
  • Alarm input/output: Yes
  • Dynamic range: 144
  • Languages support: English/French/German/Italian/Japanese/Portuguese/Russian/Spanish
  • Number of languages: 9
  • Certification: UL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1, FCC (Part15 ClassA), ICES-003 Issue 7 ClassA, EN55032 ClassA, EN55035, NEMA-TS2
  • Camera tilt control: Yes
  • Minimum illumination: 0.006
  • Angle of rotation: 360
  • Lens viewing angle, horizontal: 1.5 - 65
  • Lens viewing angle, vertical: 1.2 - 39
  • Tilt angle range: -20 - 90
  • Tilt preset speed: 500
  • Tilt speed: 150
  • Pan preset speed: 700
  • Pan speed: 150
  • White balance: ATW/AWC
  • Camera shutter speed: 1/60 - 1/10000
  • Number of Privacy masking areas: 32
  • Number of sensors: 1
  • Optical sensor size: 1/2.8
  • Number of effective pixels (H x V): 5.57 x 3.13
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Optical zoom: 60
  • Number of lenses: 1
  • Focal length range: 4.25 - 170
  • Maximum aperture number: 4.95
  • Minimum aperture number: 1.6
  • Closest focusing distance: 3
  • Detect distance (tele): 2199.9
  • Detect distance (wide): 60.3
  • Identify distance (tele): 220
  • Identify distance (wide): 6
  • Observe distance (tele): 880
  • Observe distance (wide): 24.1
  • Recognize distance (tele): 440
  • Recognize distance (wide): 12.1
  • Night vision: Yes
  • Night vision distance: 350
  • LED type: IR
  • Maximum resolution: 2048 x 1536
  • Total megapixels: 2
  • Video formats supported: H.264/H.265/M-JPEG
  • Supported graphics resolutions: 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/320 x 180/320 x 288 (QVGA)/640 x 360/640 x 480 (VGA)
  • Frame rate: 60
  • Noise reduction: Yes
  • Gain control type: Auto
  • Back Light Compensation (BLC): Yes
  • Bit rate control: Constant Bit Rate (CBR),Variable Bit Rate (VBR)
  • Highlight Compensation (HLC): Yes
  • Image stabilizer: Yes
  • Privacy masking: Yes
  • Text caption overlay: Yes
  • Audio formats supported: AAC-LC/G.711/G.726
  • Audio detection: Yes
  • Bit rate range: 16 - 128
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet
  • Networking standards: IEEE 802.3bt
  • Supported network protocols: IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP
  • Number of users: 14
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Maximum memory card size: 512
  • Ethernet LAN (RJ-45) ports: 1
  • Microphone in: Yes
  • Alert notification type: E-mail
  • Digest authentication: Yes
  • HTTPS encryption: Yes
  • Intelligent Video Surveillance (IVS) system features: Face detection/Scene change/Vehicle detection
  • Security algorithms: FIPS 140-3
  • Video motion detection: Yes
  • Web browser: Yes
  • Power source type: PoE
  • Power consumption: 850
  • Power consumption (Power over Ethernet (PoE)): 45.9
  • Operating temperature (T-T): -50 - 60
  • Operating relative humidity (H-H): 10 - 100
  • Width: 167
  • Depth: 167
  • Height: 205
  • Weight: 3000
  • Compliance certificates: National Defense Authorization Act (NDAA)
  • Number of cameras: 1
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.01
  • Unit Calculated Weight: 3.5
Specifications
Alarm input/outputYes
Alert notification typeE-mail
Angle of rotation360
Audio detectionYes
Audio formats supportedAAC-LC/G.711/G.726
Auto pan modeYes
Auto patrol modeYes
Auto-trackingYes
Back Light Compensation (BLC)Yes
Bit rate controlConstant Bit Rate (CBR),Variable Bit Rate (VBR)
Bit rate range16 - 128
Camera shutter speed1/60 - 1/10000
Camera tilt controlYes
Card reader integratedYes
CertificationUL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1, FCC (Part15 ClassA), ICES-003 Issue 7 ClassA, EN55032 ClassA, EN55035, NEMA-TS2
Closest focusing distance3
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Compliance certificatesNational Defense Authorization Act (NDAA)
Connectivity technologyWired
Depth167
Detect distance (tele)2199.9
Detect distance (wide)60.3
Digest authenticationYes
Dynamic range144
Ethernet interface typeFast Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Focal length range4.25 - 170
Fog proofYes
Form factorDome
Frame rate60
Gain control typeAuto
Height205
Highlight Compensation (HLC)Yes
Housing materialAluminium/Polycarbonate (PC)/Stainless steel
HTTPS encryptionYes
Identify distance (tele)220
Identify distance (wide)6
IK codeIK10
Image stabilizerYes
Intelligent Video Surveillance (IVS) system featuresFace detection/Scene change/Vehicle detection
International Protection (IP) codeIP66
Languages supportEnglish/French/German/Italian/Japanese/Portuguese/Russian/Spanish
LED typeIR
Lens viewing angle, horizontal1.5 - 65
Lens viewing angle, vertical1.2 - 39
Maximum aperture number4.95
Maximum memory card size512
Maximum resolution2048 x 1536
Microphone inYes
Minimum aperture number1.6
Minimum illumination0.006
Mounting typeCeiling
Networking standardsIEEE 802.3bt
Night visionYes
Night vision distance350
Noise reductionYes
Number of cameras1
Number of effective pixels (H x V)5.57 x 3.13
Number of languages9
Number of lenses1
Number of Privacy masking areas32
Number of sensors1
Number of users14
Observe distance (tele)880
Observe distance (wide)24.1
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-50 - 60
Optical sensor size1/2.8
Optical zoom60
Pan preset speed700
Pan speed150
Placement supportedOutdoor
Power consumption (Power over Ethernet (PoE))45.9
Power source typePoE
Preset pointsYes
Privacy maskingYes
Product colourBlack/White
PTZ controlYes
PTZ modesPreset point
Recognize distance (tele)440
Recognize distance (wide)12.1
Security algorithmsFIPS 140-3
Sensor typeCMOS
Summaryi-PRO WV-X66300-Z4LS. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.006 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 1.5 - 65°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"), Number of effective pixels (H x V): 5.57 x 3.13 pixels. Optical zoom: 60x, Focal length range: 4.25 - 170 mm, Detect distance (wide): 60.3 m
Supported graphics resolutions1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/320 x 180/320 x 288 (QVGA)/640 x 360/640 x 480 (VGA)
Supported network protocolsIPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP
Text caption overlayYes
Tilt angle range-20 - 90
Tilt preset speed500
Tilt speed150
Total megapixels2
TypeIP security camera
Video formats supportedH.264/H.265/M-JPEG
Video motion detectionYes
Web browserYes
Weight3000
White balanceATW/AWC
Width167
Zoom capabilityYes
Specs
Category CodeFNC
Description

Rapid PTZ camera with AI engine and IR-LED

2MP Outdoor 40x PTZ Network Camera with AI engine


  • 2MP 40x PTZ camera
  • Innovative New Form Factor PTZ
  • Up to 2 Edge AI analytic apps
  • AI auto tracking
  • Built-in IR-LED (250m/820ft)
  • High speed Pan/Tilt drive (Pan: 700deg./s, Tilt: 500deg./s)
  • Heavy salt damage resistance specifications (ISO 14993 compliant)
  • IP66, IK10 certified
  • Built-in FIPS 140-2 Level 3 Certified SecureElement (EdgeLock SE050F NXP Semiconductors)
  • NDAA Compliant

NameNET CAMERA 2MP PTZ AI OUTD./WV-X66300-Z4LS I-PRO
PictureUrlhttps://static.elko.cloud/ProductImages/34701e92-04a2-4dd5-9897-848404721529.Jpeg
Power consumption850
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/34701e92-04a2-4dd5-9897-848404721529.Jpeg
Unit Calculated Volume0.01
Unit Calculated Weight3.5
Units per Shipping Box1
Vendor Homepagehttps://i-pro.com/products_and_solutions/en/surveillance/products/wv-x66300-z4ls
