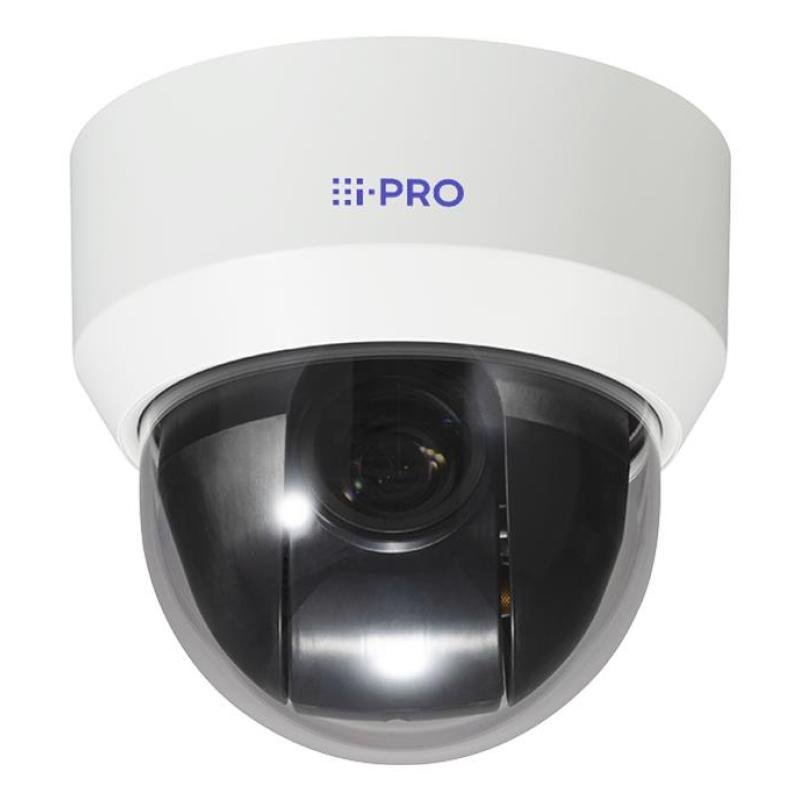

NET CAMERA 2MP PTZ DOME OUTD./VANDAL WV-U65302-Z2 I-PRO

NET CAMERA 2MP PTZ DOME OUTD./VANDAL WV-U65302-Z2 I-PRO
NET CAMERA 2MP PTZ DOME OUTD./VANDAL WV-U65302-Z2 I-PRO
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 2048 x 1536
  • Total megapixels: 2
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
79,219ден.
  • Достапност:
  • Бренд: I-PRO
  • Шифра: 443681
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: i-PRO WV-U65302-Z2. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.011 lx, Angle of rotation: 360°, Tilt angle range: -15 - 195°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 21x, Digital zoom: 336x, Focal length range: 4 - 84.6 mm
  • Vendor Homepage: https://i-pro.com/products_and_solutions/eu-en/surveillance/products/wv-u65302-z2
  • Name: NET CAMERA 2MP PTZ DOME OUTD./VANDAL WV-U65302-Z2 I-PRO
  • Category Code: FNC
  • Form factor: Dome
  • Mounting type: Ceiling
  • Product colour: White
  • Housing material: Aluminium/Polycarbonate (PC)/Stainless steel
  • Protection features: Corrosion resistant/Dust resistant/Water resistant/Wind resistant
  • International Protection (IP) code: IP66
  • IK code: IK10
  • Fog proof: Yes
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Outdoor
  • PTZ control: Yes
  • PTZ modes: Preset sequence
  • Auto pan mode: Yes
  • Auto patrol mode: Yes
  • Preset points: Yes
  • Dynamic range: 144
  • Languages support: English/French/German/Italian/Japanese/Portuguese/Russian/Simplified Chinese/Spanish
  • Number of languages: 9
  • Camera pan control: Yes
  • Camera tilt control: Yes
  • Minimum illumination: 0.011
  • Angle of rotation: 360
  • Tilt angle range: -15 - 195
  • Tilt manual speed: 0.065 - 150
  • Tilt preset speed: 500
  • Pan range: 0 - 360
  • Pan manual speed: 0.065 - 150
  • Pan preset speed: 500
  • White balance: ATW/AWC
  • Camera shutter speed: 1/10000 - 1/60
  • Optical sensor size: 1/2.8
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Optical zoom: 21
  • Digital zoom: 336
  • Focal length range: 4 - 84.6
  • Auto focus: Yes
  • Maximum aperture number: 4.5
  • Minimum aperture number: 1.6
  • Detect distance (tele): 1293.8
  • Detect distance (wide): 51.9
  • Identify distance (tele): 129.4
  • Identify distance (wide): 5.2
  • Observe distance (tele): 517.5
  • Observe distance (wide): 20.8
  • Recognize distance (tele): 258.8
  • Recognize distance (wide): 10.4
  • Maximum resolution: 2048 x 1536
  • Total megapixels: 2
  • Video formats supported: H.264/H.265/M-JPEG
  • Supported graphics resolutions: 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/320 x 180/640 x 360
  • Supported video modes: 1080p
  • Video recording: Yes
  • Noise reduction: Yes
  • Back Light Compensation (BLC): Yes
  • Highlight Compensation (HLC): Yes
  • Image quality adjustment: Automatic gain control (AGC)/Brightness
  • Image stabilizer: Yes
  • Audio formats supported: AAC-LC/ADPCM/G.711/G.726
  • Audio detection: Yes
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet
  • Networking standards: IEEE 802.1x/IEEE 802.3af/IEEE 802.3at
  • Supported network protocols: IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, SFTP, MQTT, LLDP IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPn
  • Number of users: 14
  • Streaming method: Multicast/Unicast
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Maximum memory card size: 512
  • Alert notification type: E-mail
  • Intelligent Video Surveillance (IVS) system features: Scene change
  • Security algorithms: FIPS 140-2/HTTPS
  • Video motion detection: Yes
  • Web browser: Yes
  • Power source type: PoE+,DC,PoE
  • Power consumption: 340
  • Power consumption (typical): 18.4
  • Power consumption (Power over Ethernet (PoE)): 18.4
  • DC output voltage: 12,48,54
  • DC output current: 1.3
  • Operating temperature (T-T): -30 - 55
  • Storage temperature (T-T): -20 - 55
  • Operating relative humidity (H-H): 10 - 100
  • Mobile operating systems supported: Android/iOS/iOS 8.0/iPadOS
  • Height: 153
  • Diameter: 165
  • Weight: 1700
  • Compliance certificates: CE/cUL/Federal Communications Commission (FCC)/National Defense Authorization Act (NDAA)/UKCA/UL
  • Number of cameras: 1
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.001734
  • Unit Calculated Weight: 1.5
Specifications
Alert notification typeE-mail
Angle of rotation360
Audio detectionYes
Audio formats supportedAAC-LC/ADPCM/G.711/G.726
Auto focusYes
Auto pan modeYes
Auto patrol modeYes
Back Light Compensation (BLC)Yes
Camera pan controlYes
Camera shutter speed1/10000 - 1/60
Camera tilt controlYes
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Compliance certificatesCE/cUL/Federal Communications Commission (FCC)/National Defense Authorization Act (NDAA)/UKCA/UL
Connectivity technologyWired
DC output current1.3
DC output voltage12,48,54
Detect distance (tele)1293.8
Detect distance (wide)51.9
Diameter165
Digital zoom336
Dynamic range144
Ethernet interface typeFast Ethernet
Ethernet LANYes
Focal length range4 - 84.6
Fog proofYes
Form factorDome
Height153
Highlight Compensation (HLC)Yes
Housing materialAluminium/Polycarbonate (PC)/Stainless steel
Identify distance (tele)129.4
Identify distance (wide)5.2
IK codeIK10
Image quality adjustmentAutomatic gain control (AGC)/Brightness
Image stabilizerYes
Intelligent Video Surveillance (IVS) system featuresScene change
International Protection (IP) codeIP66
Languages supportEnglish/French/German/Italian/Japanese/Portuguese/Russian/Simplified Chinese/Spanish
Maximum aperture number4.5
Maximum memory card size512
Maximum resolution2048 x 1536
Minimum aperture number1.6
Minimum illumination0.011
Mobile operating systems supportedAndroid/iOS/iOS 8.0/iPadOS
Mounting typeCeiling
Networking standardsIEEE 802.1x/IEEE 802.3af/IEEE 802.3at
Noise reductionYes
Number of cameras1
Number of languages9
Number of users14
Observe distance (tele)517.5
Observe distance (wide)20.8
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-30 - 55
Optical sensor size1/2.8
Optical zoom21
Pan manual speed0.065 - 150
Pan preset speed500
Pan range0 - 360
Placement supportedOutdoor
Power consumption (Power over Ethernet (PoE))18.4
Power consumption (typical)18.4
Power source typePoE+,DC,PoE
Preset pointsYes
Product colourWhite
Protection featuresCorrosion resistant/Dust resistant/Water resistant/Wind resistant
PTZ controlYes
PTZ modesPreset sequence
Recognize distance (tele)258.8
Recognize distance (wide)10.4
Security algorithmsFIPS 140-2/HTTPS
Sensor typeCMOS
Storage temperature (T-T)-20 - 55
Streaming methodMulticast/Unicast
Summaryi-PRO WV-U65302-Z2. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.011 lx, Angle of rotation: 360°, Tilt angle range: -15 - 195°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 21x, Digital zoom: 336x, Focal length range: 4 - 84.6 mm
Supported graphics resolutions1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/320 x 180/640 x 360
Supported network protocolsIPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, SFTP, MQTT, LLDP IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPn
Supported video modes1080p
Tilt angle range-15 - 195
Tilt manual speed0.065 - 150
Tilt preset speed500
Total megapixels2
TypeIP security camera
Video formats supportedH.264/H.265/M-JPEG
Video motion detectionYes
Video recordingYes
Web browserYes
Weight1700
White balanceATW/AWC
Zoom capabilityYes
Specs
Category CodeFNC
Description

U-Series launch gives customers PTZ’s that meet top security certifications (FIPS 140-2 level 3) while also providing a unique blend of imaging performance, reliability and affordability.

Highly durable pan-tilt drive unit Reduced maintenance costs

High durability gear drive achieves PAN and TILT drive durability (3.7 million P&T movements). Low failure rate even with high frequency drive and reduced maintenance cost by minimizing the maintenance cycle.

Easy installation

Both pigtail or gromet are available to be flexibly to adapt to the installation environment.
Easy Kitting will also save your time for installation.

High security standard

Highest level of security. In addition to digital certificates issued by a third-party organization (GlobalSign®), FIPS 140-2 level3-certified hardware is installed.

  • 2MP (1080p) 1920x1080
  • 21x optical zoom
  • Intelligent Auto
  • Super Dynamic 144dB
  • Color night vision (0.001 to 0.015 lx)
  • Durable Pan/Tilt gear mechanism
  • IP66, IK10 certified
  • Built-in FIPS 140-2 Level 3 Certified Secure Element (EdgeLock® SE050F NXP® Semiconductors)
  • NDAA Compliant

NameNET CAMERA 2MP PTZ DOME OUTD./VANDAL WV-U65302-Z2 I-PRO
PictureUrlhttps://static.elko.cloud/ProductImages/79d4cba3-ea4c-44dd-a7b8-c380e37720f5.Jpeg
Power consumption340
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/79d4cba3-ea4c-44dd-a7b8-c380e37720f5.Jpeg
Unit Calculated Volume0.001734
Unit Calculated Weight1.5
Units per Shipping Box1
Vendor Homepagehttps://i-pro.com/products_and_solutions/eu-en/surveillance/products/wv-u65302-z2
