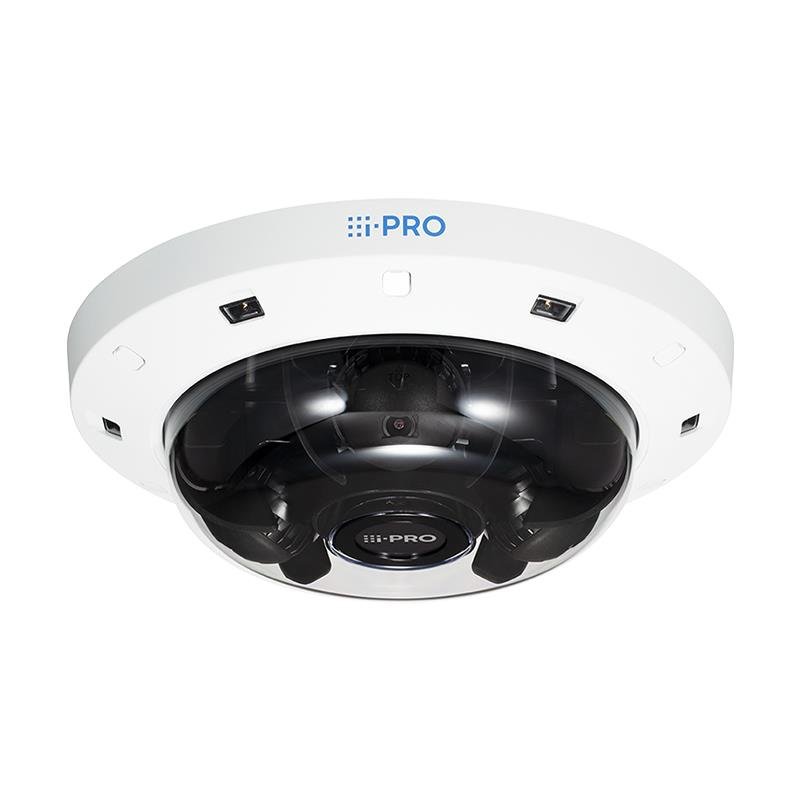

NET CAMERA 4K AI OUTDOOR/VANDAL WV-S8573L I-PRO

NET CAMERA 4K AI OUTDOOR/VANDAL WV-S8573L I-PRO
NET CAMERA 4K AI OUTDOOR/VANDAL WV-S8573L I-PRO
  • Connectivity technology: Wired
  • Maximum resolution: 3840 x 2160
  • Total megapixels: 25
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
151,097ден.
  • Достапност:
  • Бренд: I-PRO
  • Шифра: 453935
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: i-PRO WV-S8573L. Placement supported: Outdoor, Connectivity technology: Wired, Dynamic range: 120 dB. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Vertical field of view (thermal module): 56°, Horizontal field of view (thermal module): 108°, White balance: ATW, AWC. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 1x, Normal focusing range: 3 m, Fixed focal length: 3.1 mm
  • Vendor Homepage: https://i-pro.com/products_and_solutions/en/surveillance/products/wv-s8573l
  • Name: NET CAMERA 4K AI OUTDOOR/VANDAL WV-S8573L I-PRO
  • Category Code: FNC
  • Form factor: Dome
  • Mounting type: Ceiling
  • Product colour: White
  • Protection features: Dust resistant/Water resistant
  • International Protection (IP) code: IP66, IP67
  • IK code: IK10
  • Connectivity technology: Wired
  • Placement supported: Outdoor
  • Dynamic range: 120
  • Horizontal field of view (thermal module): 108
  • Vertical field of view (thermal module): 56
  • White balance: ATW/AWC
  • Number of sensors: 3
  • Optical sensor size: 1/2.8
  • Sensor type: CMOS
  • Optical zoom: 1
  • Detect distance (wide): 55.8
  • Fixed focal length: 3.1
  • Identify distance (wide): 5.6
  • Normal focusing range: 3
  • Observe distance (wide): 22.3
  • Recognize distance (wide): 11.2
  • Night vision: Yes
  • Night vision distance: 40
  • Maximum resolution: 3840 x 2160
  • Total megapixels: 25
  • Video compression formats: H.264/H.265
  • Noise reduction: Yes
  • Back Light Compensation (BLC): Yes
  • Highlight Compensation (HLC): Yes
  • Audio formats supported: AAC-LC/G.711/G.726
  • Ethernet LAN: Yes
  • Supported network protocols: IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, LLDP, MQTT IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGM
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC/SD/SDHC/SDXC
  • Ethernet LAN (RJ-45) ports: 1
  • Intelligent Video Surveillance (IVS) system features: Face detection/Human detection/Vehicle detection
  • Video motion detection: Yes
  • Power source type: DC,PoE
  • Operating temperature (T-T): -40 - 60
  • Operating relative humidity (H-H): 10 - 100
  • Width: 300
  • Depth: 90
  • Weight: 3100
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.015
  • Unit Calculated Weight: 3.7
Specifications
Audio formats supportedAAC-LC/G.711/G.726
Back Light Compensation (BLC)Yes
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC/SD/SDHC/SDXC
Connectivity technologyWired
Depth90
Detect distance (wide)55.8
Dynamic range120
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Fixed focal length3.1
Form factorDome
Highlight Compensation (HLC)Yes
Horizontal field of view (thermal module)108
Identify distance (wide)5.6
IK codeIK10
Intelligent Video Surveillance (IVS) system featuresFace detection/Human detection/Vehicle detection
International Protection (IP) codeIP66, IP67
Maximum resolution3840 x 2160
Mounting typeCeiling
Night visionYes
Night vision distance40
Noise reductionYes
Normal focusing range3
Number of sensors3
Observe distance (wide)22.3
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-40 - 60
Optical sensor size1/2.8
Optical zoom1
Placement supportedOutdoor
Power source typeDC,PoE
Product colourWhite
Protection featuresDust resistant/Water resistant
Recognize distance (wide)11.2
Sensor typeCMOS
Summaryi-PRO WV-S8573L. Placement supported: Outdoor, Connectivity technology: Wired, Dynamic range: 120 dB. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Vertical field of view (thermal module): 56°, Horizontal field of view (thermal module): 108°, White balance: ATW, AWC. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 1x, Normal focusing range: 3 m, Fixed focal length: 3.1 mm
Supported network protocolsIPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, LLDP, MQTT IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGM
Total megapixels25
Vertical field of view (thermal module)56
Video compression formatsH.264/H.265
Video motion detectionYes
Weight3100
White balanceATW/AWC
Width300
Specs
Category CodeFNC
Description

  • 3 x 4K(25MP) 3840x2160 up to 15fps
  • 270° coverage with one IP address
  • Intelligent Auto (with AI Engine)
  • Super Dynamic 120dB
  • Color night vision (0.084 to 0.12 lx)
  • Smart Coding (with AI Engine)
  • Built-in 360° IR LED
  • Continuous view assistance
  • Wide range tilt angle adjustment mechanism
  • Built-in FIPS 140-2 Level 3 Certified Secure Element
  • (EdgeLock® SE050F NXP® Semiconductors)
  • NDAA Compliant

NameNET CAMERA 4K AI OUTDOOR/VANDAL WV-S8573L I-PRO
PictureUrlhttps://static.elko.cloud/ProductImages/357653fe-adf7-411a-ba88-6e44cfc5dbf2.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/357653fe-adf7-411a-ba88-6e44cfc5dbf2.Jpeg
Unit Calculated Volume0.015
Unit Calculated Weight3.7
Units per Shipping Box1
Vendor Homepagehttps://i-pro.com/products_and_solutions/en/surveillance/products/wv-s8573l
