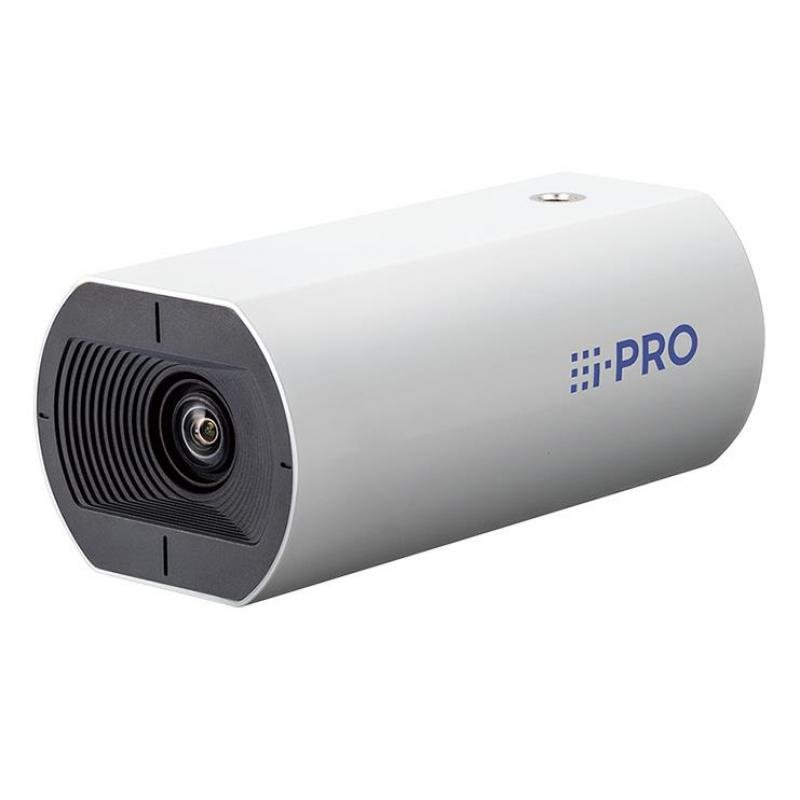

NET CAMERA 4MP BOX INDOOR/WV-U1142A I-PRO

NET CAMERA 4MP BOX INDOOR/WV-U1142A I-PRO
NET CAMERA 4MP BOX INDOOR/WV-U1142A I-PRO
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 2560 x 1440
  • Total megapixels: 4
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
18,448ден.
  • Достапност:
  • Бренд: I-PRO
  • Шифра: 443646
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: i-PRO WV-U1142A. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Product colour: Black, White, Form factor: Box. Minimum illumination: 0.12 lx, Lens viewing angle, horizontal: 103°, Lens viewing angle, vertical: 57°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Focal length range: 2.9 - 7.3 mm
  • Vendor Homepage: https://i-pro.com/products_and_solutions/en/surveillance/products/wv-u1142a
  • Name: NET CAMERA 4MP BOX INDOOR/WV-U1142A I-PRO
  • Category Code: FNC
  • Model: WV-U1142A
  • Form factor: Box
  • Product colour: Black/White
  • Fog proof: Yes
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Indoor
  • Wide Dynamic Range (WDR): Yes
  • Infrared (IR) cut-off filter: Yes
  • Minimum illumination: 0.12
  • Lens viewing angle, horizontal: 103
  • Lens viewing angle, vertical: 57
  • Adjustment shutter speed: Auto
  • Number of sensors: 1
  • Optical sensor size: 1/2.7
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Number of lenses: 1
  • Focal length range: 2.9 - 7.3
  • Maximum resolution: 2560 x 1440
  • Total megapixels: 4
  • Video compression formats: H.265
  • Supported video modes: 1080p
  • Frame rate: 30
  • Noise reduction: Yes
  • Back Light Compensation (BLC): Yes
  • Bit rate control: Constant Bit Rate (CBR),Variable Bit Rate (VBR)
  • Highlight Compensation (HLC): Yes
  • Privacy masking: Yes
  • Region of Interest (ROI) encoding: Yes
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Maximum memory card size: 512
  • Ethernet LAN (RJ-45) ports: 1
  • Security algorithms: HTTPS/SNMP/SNMPv2/SNMPv3/SSL/TLS
  • Power source type: PoE
  • Operating temperature (T-T): -10 - 50
  • Operating relative humidity (H-H): 10 - 90
  • Number of cameras: 1
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.001734
  • Unit Calculated Weight: 0.4
Specifications
Adjustment shutter speedAuto
Back Light Compensation (BLC)Yes
Bit rate controlConstant Bit Rate (CBR),Variable Bit Rate (VBR)
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Connectivity technologyWired
Ethernet interface typeFast Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Focal length range2.9 - 7.3
Fog proofYes
Form factorBox
Frame rate30
Highlight Compensation (HLC)Yes
Infrared (IR) cut-off filterYes
Lens viewing angle, horizontal103
Lens viewing angle, vertical57
Maximum memory card size512
Maximum resolution2560 x 1440
Minimum illumination0.12
Noise reductionYes
Number of cameras1
Number of lenses1
Number of sensors1
Operating relative humidity (H-H)10 - 90
Operating temperature (T-T)-10 - 50
Optical sensor size1/2.7
Placement supportedIndoor
Power source typePoE
Privacy maskingYes
Product colourBlack/White
Region of Interest (ROI) encodingYes
Security algorithmsHTTPS/SNMP/SNMPv2/SNMPv3/SSL/TLS
Sensor typeCMOS
Summaryi-PRO WV-U1142A. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Product colour: Black, White, Form factor: Box. Minimum illumination: 0.12 lx, Lens viewing angle, horizontal: 103°, Lens viewing angle, vertical: 57°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Focal length range: 2.9 - 7.3 mm
Supported video modes1080p
Total megapixels4
TypeIP security camera
Video compression formatsH.265
Wide Dynamic Range (WDR)Yes
Zoom capabilityYes
Specs
Category CodeFNC
Description

New U-series compact network camera with enhanced functions and affordability

The new U series offers high functionality and reliability at an affordable price to meet the needs of a wide range of customers.
i-PRO's original intelligent auto function and super dynamic function realize images that can be identified even in harsh environments.
It supports ONVIF G / S / T profile and H.265 and H.264, realizes high data compression efficiency, and supports a wide range of
VMS and NVR connections. In addition, Pre-installed secure certificates enables device authentication and end-to-end communication
encryption to counter the threat of advanced cyberattacks.

- Pre-installed secure certificate, supports end-to-end encrypted communication and device authentication.
- Compatible with H.265 and H.264, maintains image quality and achieves high data compression efficiency.
- Compliant with ONVIF G / S / T profile and can support a wide range of connections to VMS and NVR
- i-PRO's original Intelligent Auto (iA) function and super dynamic function improve the distinctiveness of images in harsh environments.

  • 2688×1520 pixel image up to 30fps
  • 2.5x built-in motorized zoom and motorized focus lens
  • iA (intelligent Auto)
  • Super Dynamic 102dB
  • Color night vision (0.019 to 0.3 lx)
  • H.265 Smart Coding
  • Corridor mode (90 degrees or 270 degrees in image rotation)
  • NDAA Compliant

ModelWV-U1142A
