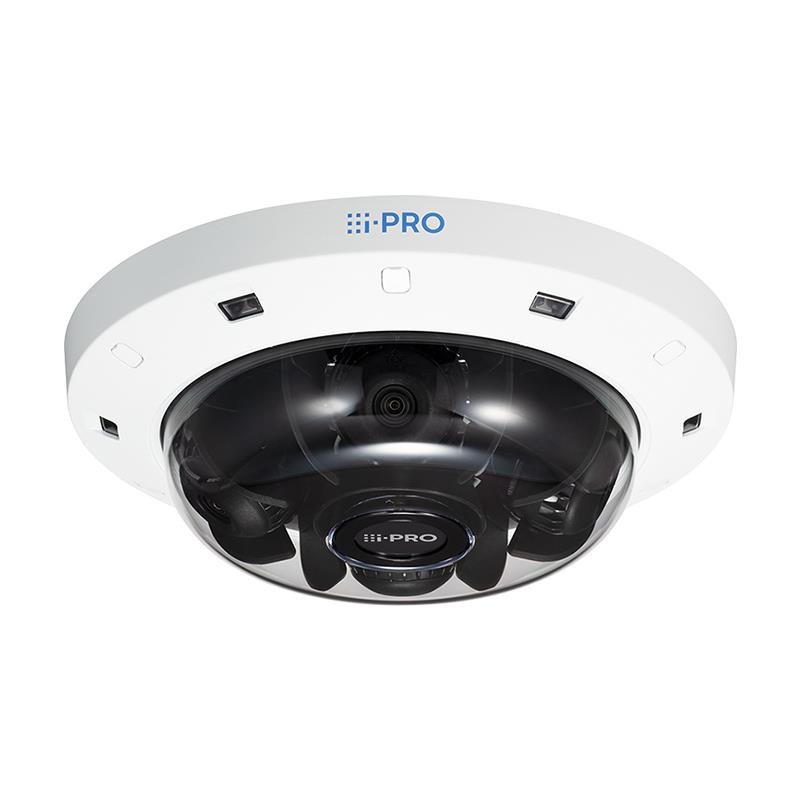

NET CAMERA 4MP DOME AI OUTDOOR/VANDAL WV-S8544L I-PRO

NET CAMERA 4MP DOME AI OUTDOOR/VANDAL WV-S8544L I-PRO
NET CAMERA 4MP DOME AI OUTDOOR/VANDAL WV-S8544L I-PRO
  • Connectivity technology: Wired
  • Maximum resolution: 2688 x 1520
  • Total megapixels: 16
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
132,210ден.
  • Достапност:
  • Бренд: I-PRO
  • Шифра: 444625
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: i-PRO WV-S8544L. Placement supported: Outdoor, Connectivity technology: Wired, Dynamic range: 108 dB. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). White balance (panoramic camera): ATW, AWC. Optical zoom: 2.5x, Focal length range: 2.9 - 7.3 mm, Normal focusing range: 1 mwe
  • Vendor Homepage: https://i-pro.com/products_and_solutions/en/surveillance/products/wv-s8544l
  • Name: NET CAMERA 4MP DOME AI OUTDOOR/VANDAL WV-S8544L I-PRO
  • Category Code: FNC
  • Form factor: Dome
  • Mounting type: Ceiling
  • Product colour: Black/White
  • Protection features: Dust resistant/Water resistant
  • International Protection (IP) code: IP66, IP67
  • IK code: IK10
  • Connectivity technology: Wired
  • Placement supported: Outdoor
  • Dynamic range: 108
  • Number of sensors: 4
  • Optical sensor size: 1/2.7
  • Sensor type: CMOS
  • White balance (panoramic camera): ATW/AWC
  • Optical zoom: 2.5
  • Focal length range: 2.9 - 7.3
  • Auto focus: Yes
  • Detect distance (tele): 136.5
  • Detect distance (wide): 45.1
  • Identify distance (tele): 13.6
  • Identify distance (wide): 4.5
  • Normal focusing range: 1
  • Observe distance (tele): 54.6
  • Observe distance (wide): 18
  • Recognize distance (tele): 27.3
  • Recognize distance (wide): 9
  • Night vision: Yes
  • Night vision distance: 20
  • Maximum resolution: 2688 x 1520
  • Total megapixels: 16
  • Video compression formats: H.264/H.265
  • Back Light Compensation (BLC): Yes
  • Highlight Compensation (HLC): Yes
  • Audio formats supported: AAC-LC/G.711/G.726
  • Ethernet LAN: Yes
  • Supported network protocols: IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, LLDP, MQTT IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGM
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC/SD/SDHC/SDXC
  • Ethernet LAN (RJ-45) ports: 1
  • Intelligent Video Surveillance (IVS) system features: Face detection/Pet detection/Vehicle detection
  • Video motion detection: Yes
  • Power source type: DC,PoE
  • Operating temperature (T-T): -40 - 60
  • Operating relative humidity (H-H): 10 - 100
  • Width: 300
  • Depth: 90
  • Weight: 3300
  • Compliance certificates: National Defense Authorization Act (NDAA)
  • Units per Pallet: 0
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.0219
  • Unit Calculated Weight: 5
Specifications
Audio formats supportedAAC-LC/G.711/G.726
Auto focusYes
Back Light Compensation (BLC)Yes
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC/SD/SDHC/SDXC
Compliance certificatesNational Defense Authorization Act (NDAA)
Connectivity technologyWired
Depth90
Detect distance (tele)136.5
Detect distance (wide)45.1
Dynamic range108
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Focal length range2.9 - 7.3
Form factorDome
Highlight Compensation (HLC)Yes
Identify distance (tele)13.6
Identify distance (wide)4.5
IK codeIK10
Intelligent Video Surveillance (IVS) system featuresFace detection/Pet detection/Vehicle detection
International Protection (IP) codeIP66, IP67
Maximum resolution2688 x 1520
Mounting typeCeiling
Night visionYes
Night vision distance20
Normal focusing range1
Number of sensors4
Observe distance (tele)54.6
Observe distance (wide)18
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-40 - 60
Optical sensor size1/2.7
Optical zoom2.5
Placement supportedOutdoor
Power source typeDC,PoE
Product colourBlack/White
Protection featuresDust resistant/Water resistant
Recognize distance (tele)27.3
Recognize distance (wide)9
Sensor typeCMOS
Summaryi-PRO WV-S8544L. Placement supported: Outdoor, Connectivity technology: Wired, Dynamic range: 108 dB. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). White balance (panoramic camera): ATW, AWC. Optical zoom: 2.5x, Focal length range: 2.9 - 7.3 mm, Normal focusing range: 1 mwe
Supported network protocolsIPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, LLDP, MQTT IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGM
Total megapixels16
Video compression formatsH.264/H.265
Video motion detectionYes
Weight3300
White balance (panoramic camera)ATW/AWC
Width300
Specs
Category CodeFNC
Description

  • 4 x 4MP(16MP) 2688x1520 up to 30fps
  • 360° coverage with one IP address
  • Intelligent Auto (with AI Engine)
  • Super Dynamic 108dB
  • Color night vision (0.21 to 0.3 lx)
  • Smart Coding (with AI Engine)
  • Built-in 360° IR LED
  • Remote zoom and focus
  • Continuous view assistance
  • Wide range tilt angle adjustment mechanism
  • Built-in FIPS 140-2 Level 3 Certified Secure Element with TPM functionality
  • (EdgeLock® SE050F NXP® Semiconductors)
  • NDAA Compliant
