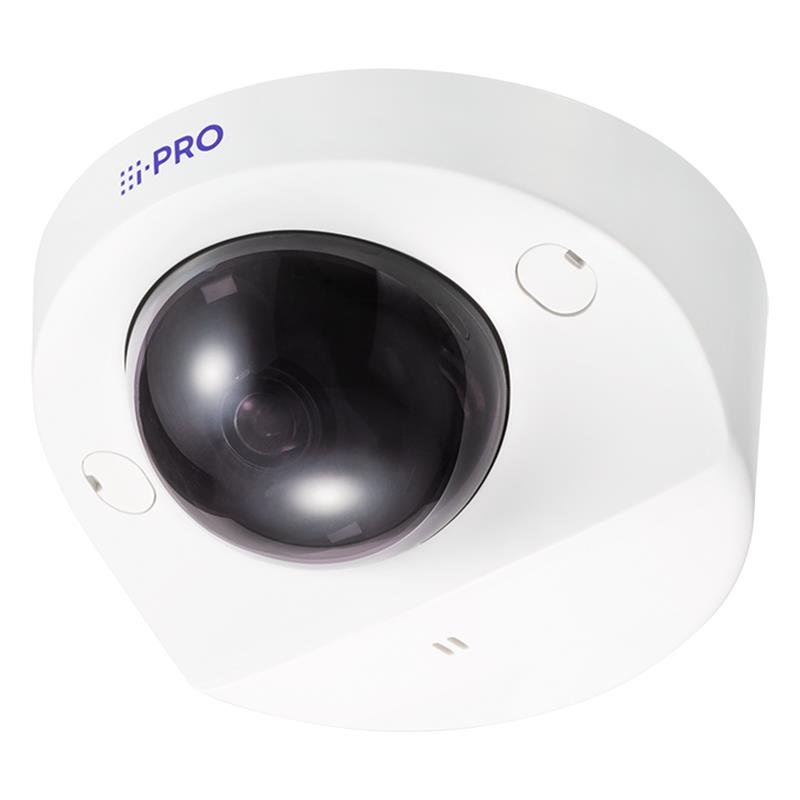

NET CAMERA 4MP DOME INDOOR/WV-U31401-F2LG I-PRO

Technical Specifications

• Summary: i-PRO All-in-one Compact dome camera with IR-LED. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.0238 lx, Lens viewing angle, horizontal: 128°, Lens viewing angle, vertical: 71°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Optical zoom: 1x, Detect distance: 26.2 m, Observe distance: 10.5 m
• Vendor Homepage: https://i-pro.com/products_and_solutions/en/surveillance/products/wv-u31401-f2lg
• Name: NET CAMERA 4MP DOME INDOOR/WV-U31401-F2LG I-PRO
• Category Code: FNC
• Model: WV-U31401-F2LG
• Form factor: Dome
• Mounting type: Ceiling
• Product colour: White
• Housing material: Acrylonitrile butadiene styrene (ABS)/Polycarbonate (PC)
• Fog proof: Yes
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Indoor
• Dynamic range: 102
• Languages support: English/French/German/Italian/Japanese/Portuguese/Russian/Simplified Chinese/Spanish
• Camera pan control: Yes
• Camera tilt control: Yes
• Minimum illumination: 0.0238
• Lens viewing angle, horizontal: 128
• Lens viewing angle, vertical: 71
• Tilt angle range: 0 - 90
• Pan range: -45 - 45
• White balance: ATW/AWC
• Camera shutter speed: 1/10000 - 16/30
• Number of Privacy masking areas: 8
• Number of sensors: 1
• Optical sensor size: 1/2.7
• Sensor type: CMOS
• Zoom capability: Yes
• Optical zoom: 1
• Detect distance: 26.2
• Observe distance: 10.5
• Recognize distance: 5.2
• Identify distance: 2.6
• Maximum aperture number: 2.1
• Fixed focal length: 2.4
• Normal focusing range: 0.7
• Night vision: Yes
• Night vision distance: 10
• LED type: IR
• Maximum resolution: 2560 x 1440
• Total megapixels: 4
• Video formats supported: H.264/H.265/M-JPEG
• Supported graphics resolutions: 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2560 x 1440/2688 x 1520/320 x 180/320 x 240/640 x 360/640 x 480 (VGA)
• Noise reduction: Yes
• Back Light Compensation (BLC): Yes
• Highlight Compensation (HLC): Yes
• Audio formats supported: AAC-LC/G.711/G.726
• Built-in microphone: Yes
• Ethernet LAN: Yes
• Ethernet interface type: Fast Ethernet
• Networking standards: IEEE 802.1x/IEEE 802.3af
• Supported network protocols: IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, FTP, SFTP, LLDP, MQTT IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3,
• Card reader integrated: Yes
• Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
• Maximum memory card size: 512
• Fiber optic connector: RJ-45
• Alert notification type: E-mail
• Intelligent Video Surveillance (IVS) system features: Scene change
• Security algorithms: HTTPS
• Video motion detection: Yes
• Web browser: Yes
• Power source type: PoE
• Power consumption: 110
• Power consumption (Power over Ethernet (PoE)): 5.3
• Waste Electrical and Electronic Equipment (WEEE) compliance: Yes
• Operating temperature (T-T): 0 - 40
• Storage temperature (T-T): -30 - 60
• Operating relative humidity (H-H): 10 - 90
• Storage relative humidity (H-H): 10 - 95
• Mobile operating systems supported: Android/iOS/iOS 8.0/iPadOS
• Height: 51
• Diameter: 104
• Weight: 280
• Compliance certificates: CE/cUL/Federal Communications Commission (FCC)/National Defense Authorization Act (NDAA)/UKCA/UL
• Number of cameras: 1
• Browser supported: Microsoft Edge, Firefox, Google Chrome
• Data transfer rate: 100
• Number of simultaneous users: 14
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.001734
• Unit Calculated Weight: 0.4
