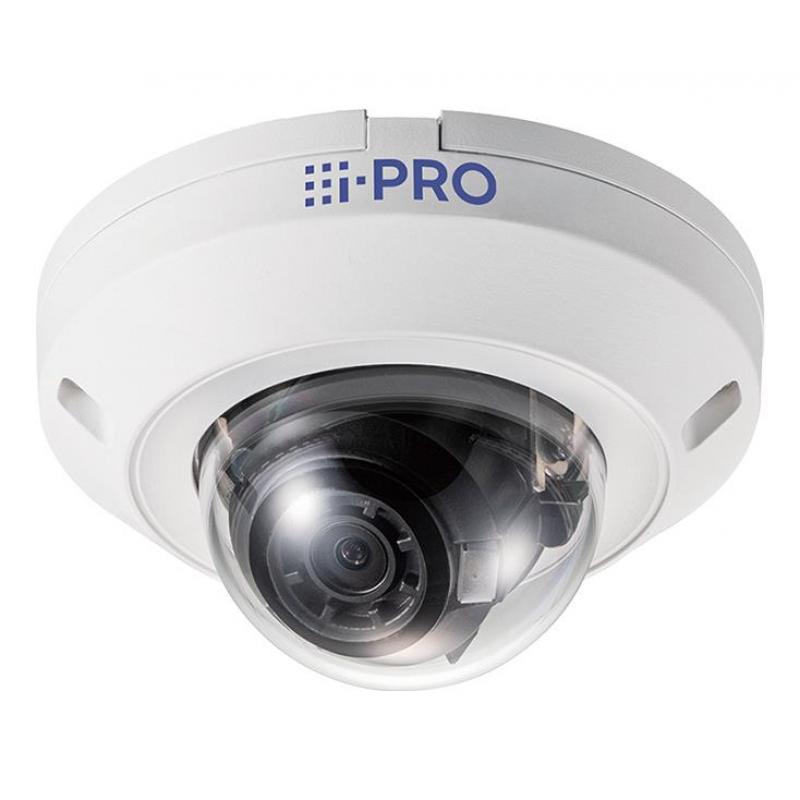

NET CAMERA 4MP DOME OUTDOOR/VANDAL WV-U2540LA I-PRO

NET CAMERA 4MP DOME OUTDOOR/VANDAL WV-U2540LA I-PRO
NET CAMERA 4MP DOME OUTDOOR/VANDAL WV-U2540LA I-PRO
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 2688 x 1520
  • Total megapixels: 4
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
17,702ден.
  • Достапност:
  • Бренд: I-PRO
  • Шифра: 443689
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: i-PRO WV-U2540LA. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.21 lx, Tilt angle range: -30 - 80°, Pan range: -175 - 175°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Optical zoom: 1x, Digital zoom: 4x, Detect distance: 43 m
  • Vendor Homepage: https://i-pro.com/products_and_solutions/us-en/surveillance/products/wv-u2540la
  • Name: NET CAMERA 4MP DOME OUTDOOR/VANDAL WV-U2540LA I-PRO
  • Category Code: FNC
  • Model: WV-U2540LA
  • Form factor: Dome
  • Mounting type: Ceiling
  • Product colour: Black/White
  • Housing material: Aluminium/Polycarbonate (PC)
  • Protection features: Corrosion resistant
  • International Protection (IP) code: IP66
  • IK code: IK10
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Outdoor
  • Day/night mode: Yes
  • Alarm input/output: Yes
  • Dynamic range: 102
  • Languages support: English/French/German/Italian/Japanese/Portuguese/Russian/Spanish
  • Number of languages: 9
  • Certification: UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1 FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55035
  • Minimum illumination: 0.21
  • Tilt angle range: -30 - 80
  • Pan range: -175 - 175
  • White balance: ATW/AWC
  • Camera shutter speed: 1/10000 - 16/30
  • Optical sensor size: 1/2.7
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Optical zoom: 1
  • Digital zoom: 4
  • Detect distance: 43
  • Observe distance: 17.2
  • Recognize distance: 8.6
  • Focal length range: 3.2
  • Identify distance: 4.3
  • Maximum aperture number: 2
  • Normal focusing range: 1
  • Night vision: Yes
  • Night vision distance: 20
  • LED type: IR
  • Maximum resolution: 2688 x 1520
  • Total megapixels: 4
  • Video formats supported: H.264/H.265
  • Frame rate: 30
  • Back Light Compensation (BLC): Yes
  • Bit rate control: Variable Bit Rate (VBR)
  • Highlight Compensation (HLC): Yes
  • Image quality adjustment: Automatic gain control (AGC)/Brightness
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet
  • Supported network protocols: IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SMTP, DNS, NTP, SNMP,v1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ,MQTT,LLDP IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE
  • Number of users: 14
  • Streaming method: Multicast/Unicast
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Maximum memory card size: 512
  • Ethernet LAN (RJ-45) ports: 1
  • Alert notification type: E-mail
  • HTTPS encryption: Yes
  • Video motion detection: Yes
  • Behavior analysis: Scene change detection
  • Power source type: PoE
  • Power consumption: 110
  • Power consumption (typical): 5.3
  • DC output voltage: 48
  • Operating temperature (T-T): -30 - 50
  • Storage temperature (T-T): -20 - 50
  • Operating relative humidity (H-H): 10 - 100
  • Mobile operating systems supported: Android/iOS
  • Width: 109
  • Depth: 109
  • Height: 62
  • Weight: 270
  • Compliance certificates: cUL/Federal Communications Commission (FCC)/National Defense Authorization Act (NDAA)/UL
  • Number of cameras: 1
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.001734
  • Unit Calculated Weight: 1.5
Specifications
Alarm input/outputYes
Alert notification typeE-mail
Back Light Compensation (BLC)Yes
Behavior analysisScene change detection
Bit rate controlVariable Bit Rate (VBR)
Camera shutter speed1/10000 - 16/30
Card reader integratedYes
CertificationUL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1 FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55035
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Compliance certificatescUL/Federal Communications Commission (FCC)/National Defense Authorization Act (NDAA)/UL
Connectivity technologyWired
Day/night modeYes
DC output voltage48
Depth109
Detect distance43
Digital zoom4
Dynamic range102
Ethernet interface typeFast Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Focal length range3.2
Form factorDome
Frame rate30
Height62
Highlight Compensation (HLC)Yes
Housing materialAluminium/Polycarbonate (PC)
HTTPS encryptionYes
Identify distance4.3
IK codeIK10
Image quality adjustmentAutomatic gain control (AGC)/Brightness
International Protection (IP) codeIP66
Languages supportEnglish/French/German/Italian/Japanese/Portuguese/Russian/Spanish
LED typeIR
Maximum aperture number2
Maximum memory card size512
Maximum resolution2688 x 1520
Minimum illumination0.21
Mobile operating systems supportedAndroid/iOS
Mounting typeCeiling
Night visionYes
Night vision distance20
Normal focusing range1
Number of cameras1
Number of languages9
Number of users14
Observe distance17.2
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-30 - 50
Optical sensor size1/2.7
Optical zoom1
Pan range-175 - 175
Placement supportedOutdoor
Power consumption (typical)5.3
Power source typePoE
Product colourBlack/White
Protection featuresCorrosion resistant
Recognize distance8.6
Sensor typeCMOS
Storage temperature (T-T)-20 - 50
Streaming methodMulticast/Unicast
Summaryi-PRO WV-U2540LA. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.21 lx, Tilt angle range: -30 - 80°, Pan range: -175 - 175°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Optical zoom: 1x, Digital zoom: 4x, Detect distance: 43 m
Supported network protocolsIPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SMTP, DNS, NTP, SNMP,v1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ,MQTT,LLDP IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE
Tilt angle range-30 - 80
Total megapixels4
TypeIP security camera
Video formats supportedH.264/H.265
Video motion detectionYes
Weight270
White balanceATW/AWC
Width109
Zoom capabilityYes
Specs
Category CodeFNC
Description

The new U series offers high functionality and reliability at an affordable price to meet the needs of a wide range of customers.
i-PRO's original intelligent auto function and super dynamic function realize images that can be identified even in harsh environments.
It supports ONVIF G / S / T profile and H.265 and H.264, realizes high data compression efficiency, and supports a wide range of VMS and NVR connections. In addition, Pre-installed secure certificates enables device authentication and end-to-end communication encryption to counter the threat of advanced cyberattacks.

- Pre-installed secure certificate, supports end-to-end encrypted communication and device authentication.
- Compatible with H.265 and H.264, maintains image quality and achieves high data compression efficiency.
- Compliant with ONVIF G / S / T profile and can support a wide range of connections to VMS and NVR
- i-PRO's original Intelligent Auto (iA) function and super dynamic function improve the distinctiveness of images in harsh environments.

  • 2688×1520 pixel image up to 30fps
  • iA (intelligent Auto)
  • Super Dynamic 102dB
  • Color night vision (0.019 to 0.3 lx)
  • H.265 Smart Coding
  • Corridor mode (90 degrees or 270 degrees in image rotation)
  • Built-in IR LED
  • NDAA Compliant

ModelWV-U2540LA
NameNET CAMERA 4MP DOME OUTDOOR/VANDAL WV-U2540LA I-PRO
PictureUrlhttps://static.elko.cloud/ProductImages/1da8a712-bda3-489c-9125-d2a38ae6a06a.Jpeg
Power consumption110
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/1da8a712-bda3-489c-9125-d2a38ae6a06a.Jpeg
Unit Calculated Volume0.001734
Unit Calculated Weight1.5
Units per Shipping Box1
Vendor Homepagehttps://i-pro.com/products_and_solutions/us-en/surveillance/products/wv-u2540la
