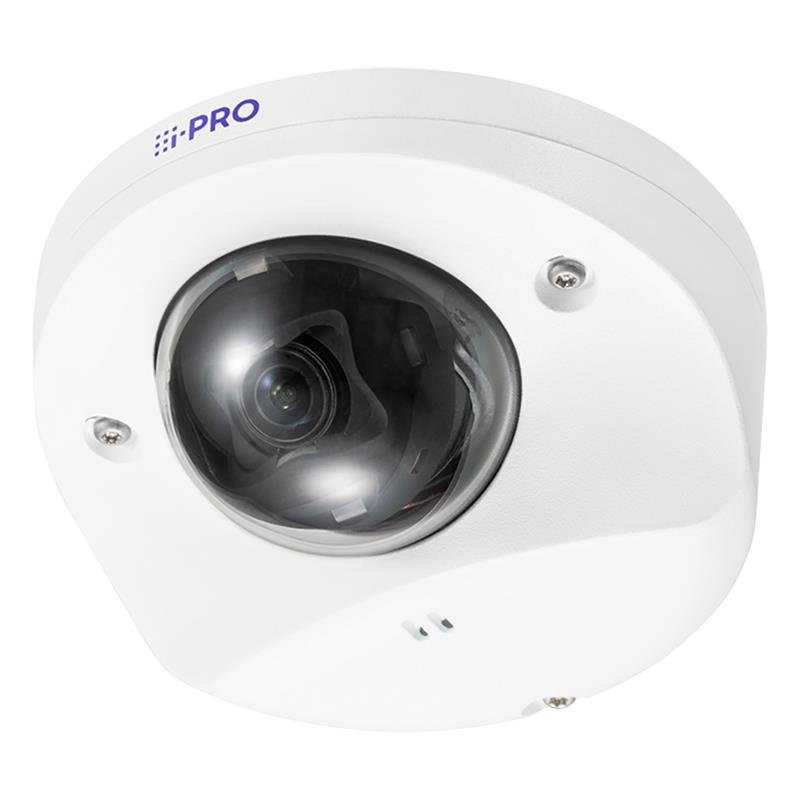

NET CAMERA 4MP DOME OUTDOOR/WV-U35401-F2L I-PRO

Technical Specifications

• Summary: i-PRO All-in-one Compact dome camera with IR-LED. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.0088 lx, Lens viewing angle, horizontal: 128°, Lens viewing angle, vertical: 71°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 1x, Detect distance: 26.2 m, Observe distance: 10.5 m
• Vendor Homepage: https://i-pro.com/products_and_solutions/en/surveillance/products/wv-u35401-f2lg
• Name: NET CAMERA 4MP DOME OUTDOOR/WV-U35401-F2L I-PRO
• Category Code: FNC
• Model: WV-U35401-F2L
• Form factor: Dome
• Mounting type: Ceiling
• Product colour: White
• Housing material: Aluminium/Polycarbonate (PC)
• Protection features: Wind resistant
• International Protection (IP) code: IP66
• IK code: IK10
• Weatherproof: Yes
• Fog proof: Yes
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Outdoor
• Dynamic range: 120
• Languages support: English/French/German/Italian/Japanese/Portuguese/Russian/Simplified Chinese/Spanish
• Camera pan control: Yes
• Camera tilt control: Yes
• Minimum illumination: 0.0088
• Lens viewing angle, horizontal: 128
• Lens viewing angle, vertical: 71
• Tilt angle range: 0 - 90
• Pan range: -45 - 45
• White balance: ATW/AWC
• Camera shutter speed: 1/10000 - 16/30
• Number of Privacy masking areas: 8
• Optical sensor size: 1/2.8
• Sensor type: CMOS
• Zoom capability: Yes
• Optical zoom: 1
• Detect distance: 26.2
• Observe distance: 10.5
• Recognize distance: 5.2
• Identify distance: 2.6
• Maximum aperture number: 2.1
• Fixed focal length: 2.4
• Normal focusing range: 0.7
• Night vision: Yes
• Night vision distance: 14
• LED type: IR
• Maximum resolution: 2688 x 1520
• Total megapixels: 4
• Video formats supported: H.264/H.265/M-JPEG
• Supported graphics resolutions: 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2560 x 1440/2688 x 1520/320 x 180/320 x 240/640 x 360/640 x 480 (VGA)
• Video recording: Yes
• Noise reduction: Yes
• Back Light Compensation (BLC): Yes
• Highlight Compensation (HLC): Yes
• Image quality adjustment: Automatic gain control (AGC)
• Audio formats supported: AAC-LC/ADPCM/G.711/G.726
• Built-in microphone: Yes
• Ethernet LAN: Yes
• Ethernet interface type: Fast Ethernet
• Networking standards: IEEE 802.1x/IEEE 802.3af
• Supported network protocols: IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, FTP, SFTP, LLDP, MQTT IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3,
• Streaming method: Multicast/Unicast
• Card reader integrated: Yes
• Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
• Maximum memory card size: 512
• Interface: RJ-45
• Alert notification type: E-mail
• Intelligent Video Surveillance (IVS) system features: Scene change
• Security algorithms: HTTPS
• Video motion detection: Yes
• Web browser: Yes
• Power source type: PoE
• Power consumption: 110
• Power consumption (Power over Ethernet (PoE)): 5.3
• Waste Electrical and Electronic Equipment (WEEE) compliance: Yes
• Operating temperature (T-T): -30 - 50
• Storage temperature (T-T): -30 - 60
• Operating relative humidity (H-H): 10 - 100
• Storage relative humidity (H-H): 10 - 95
• Mobile operating systems supported: Android/iOS/iOS 8.0/iPadOS
• Width: 109
• Depth: 109
• Height: 53
• Weight: 450
• Compliance certificates: CE/cUL/Federal Communications Commission (FCC)/National Defense Authorization Act (NDAA)/UKCA/UL
• Number of cameras: 1
• Browser supported: Microsoft Edge, Firefox, Google Chrome
• Data transfer rate: 100
• Number of simultaneous users: 14
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.001734
• Unit Calculated Weight: 1.5
