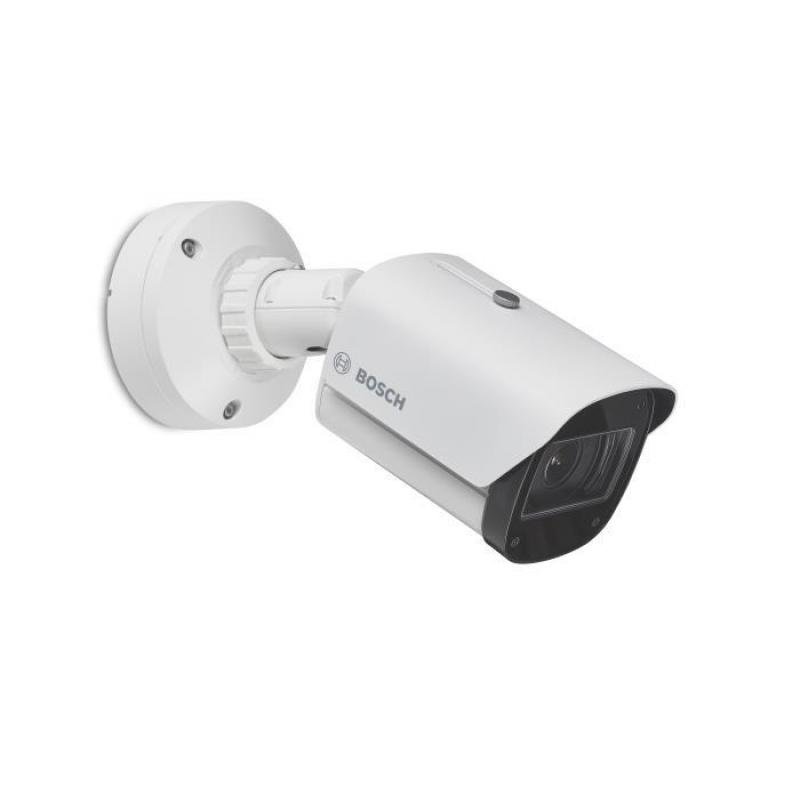

NET CAMERA 4MP IP BULLET/NBE-7703-ALX BOSCH

NET CAMERA 4MP IP BULLET/NBE-7703-ALX BOSCH
NET CAMERA 4MP IP BULLET/NBE-7703-ALX BOSCH
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 2688 x 1520
  • Total megapixels: 4
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
130,537ден.
  • Достапност:
  • Бренд: BOSCH
  • Шифра: 418754
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Bosch NBE-7703-ALX. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Minimum illumination: 0.0078 lx, White balance: Manual, Sodium lamp, Camera shutter type: Electronic. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"), Number of effective pixels (H x V): 2688 x 1520 pixels. Focal length range: 4.7 - 10 mm, Focus: Motorized
  • Vendor Homepage: https://commerce.boschsecurity.com/xf/en/DINION-7100i-IR/p/F.01U.390.688/
  • Name: NET CAMERA 4MP IP BULLET/NBE-7703-ALX BOSCH
  • Category Code: FNC
  • Form factor: Bullet
  • Mounting type: Ceiling/wall
  • Product colour: White
  • LED indicators: Yes
  • Housing material: Aluminium
  • Protection features: Impact resistant/Waterproof
  • International Protection (IP) code: IP66, IP67
  • IK code: IK10
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Indoor & outdoor
  • Auto-tracking: Yes
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Alarm input/output: Yes
  • Dynamic range: 141
  • Light exposure modes: Shutter priority AE
  • Certification: cULus, RCM, CMIM
  • Minimum illumination: 0.0078
  • White balance: Manual/Sodium lamp
  • Camera shutter type: Electronic
  • Optical sensor size: 1/2.8
  • Number of effective pixels (H x V): 2688 x 1520
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Focal length range: 4.7 - 10
  • Auto focus: Yes
  • Focus: Motorized
  • Maximum aperture number: 1.97
  • Minimum aperture number: 1.35
  • Night vision: Yes
  • Night vision distance: 60
  • LED type: IR
  • Infra-red wavelength: 940
  • Maximum resolution: 2688 x 1520
  • Total megapixels: 4
  • Video compression formats: H.264/H.265/HEVC/M-JPEG
  • Supported graphics resolutions: 1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2688 x 1520/512 x 288/768 x 432
  • Supported video modes: 1080p/720p
  • Frame rate: 60
  • Video streaming: Yes
  • Noise reduction: Yes
  • Image quality adjustment: Brightness/Contrast/Sharpness
  • Privacy masking: Yes
  • Time stamp overlay: Yes
  • Audio system full duplex: Yes
  • Audio formats supported: AAC-LC
  • Sample rate: 16
  • Signal-to-Noise Ratio (SNR): 50
  • Ethernet LAN: Yes
  • Networking standards: IEEE 802.3af/IEEE 802.3at
  • Supported network protocols: IPv4; IPv6; UDP; TCP; HTTP; HTTPS; RTP/RTCP; IGMP V2/V3; ICMP; ICMPv6; RTSP; FTP; ARP; DHCP; APIPA (Auto-IP, link local address); NTP (SNTP); SNMP (V1, MIBII); SNMP (V3, MIBII); DNS; DNSv6; DDNS (DynDNS.org, selfHOST.de, no-ip.com); SMTP; iSCSI; UPnP (SSD
  • Quality of Service (QoS) support: Yes
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Maximum memory card size: 2000
  • Ethernet LAN (RJ-45) ports: 1
  • USB port: Yes
  • Password protection: Yes
  • Alert notification type: Text alert message
  • Digest authentication: Yes
  • HTTPS encryption: Yes
  • Privacy protection: Yes
  • Security algorithms: MD5/SHA-1/SHA-256
  • Web browser: Yes
  • Firmware upgradeable: Yes
  • Power source type: AC,PoE
  • AC input voltage: 24
  • Power consumption: 50
  • Power consumption (typical): 16
  • Power consumption (Power over Ethernet (PoE)): 12.95
  • DC output voltage: 12
  • Surge protection voltage: 1
  • Operating temperature (T-T): -40 - 60
  • Storage temperature (T-T): -40 - 70
  • Operating relative humidity (H-H): 5 - 100
  • Storage relative humidity (H-H): 0 - 93
  • Width: 325
  • Height: 115
  • Diameter: 148
  • Weight: 2950
  • Compliance certificates: CE/National Defense Authorization Act (NDAA)/RoHS/UKCA/WEEE
  • Sustainability compliance: Yes
  • Package type: Box
  • Number of cameras: 1
  • Screws included: Yes
  • Manual: Yes
  • Iris: Yes
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.03619
  • Unit Calculated Weight: 4
Specifications
AC input voltage24
Alarm input/outputYes
Alert notification typeText alert message
Audio formats supportedAAC-LC
Audio system full duplexYes
Auto focusYes
Auto-trackingYes
Camera shutter typeElectronic
Card reader integratedYes
CertificationcULus, RCM, CMIM
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Compliance certificatesCE/National Defense Authorization Act (NDAA)/RoHS/UKCA/WEEE
Connectivity technologyWired
Day/night modeYes
DC output voltage12
Diameter148
Digest authenticationYes
Dynamic range141
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Firmware upgradeableYes
Focal length range4.7 - 10
FocusMotorized
Form factorBullet
Frame rate60
Height115
Housing materialAluminium
HTTPS encryptionYes
IK codeIK10
Image quality adjustmentBrightness/Contrast/Sharpness
Infra-red wavelength940
International Protection (IP) codeIP66, IP67
IrisYes
LED indicatorsYes
LED typeIR
Light exposure modesShutter priority AE
ManualYes
Maximum aperture number1.97
Maximum memory card size2000
Maximum resolution2688 x 1520
Minimum aperture number1.35
Minimum illumination0.0078
Mounting typeCeiling/wall
Networking standardsIEEE 802.3af/IEEE 802.3at
Night visionYes
Night vision distance60
Noise reductionYes
Number of cameras1
Number of effective pixels (H x V)2688 x 1520
Operating relative humidity (H-H)5 - 100
Operating temperature (T-T)-40 - 60
Optical sensor size1/2.8
Package typeBox
Password protectionYes
Placement supportedIndoor & outdoor
Power consumption (Power over Ethernet (PoE))12.95
Power consumption (typical)16
Power source typeAC,PoE
Privacy maskingYes
Privacy protectionYes
Product colourWhite
Protection featuresImpact resistant/Waterproof
Quality of Service (QoS) supportYes
Sample rate16
Screws includedYes
Security algorithmsMD5/SHA-1/SHA-256
Sensor typeCMOS
Signal-to-Noise Ratio (SNR)50
Storage relative humidity (H-H)0 - 93
Storage temperature (T-T)-40 - 70
SummaryBosch NBE-7703-ALX. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Minimum illumination: 0.0078 lx, White balance: Manual, Sodium lamp, Camera shutter type: Electronic. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"), Number of effective pixels (H x V): 2688 x 1520 pixels. Focal length range: 4.7 - 10 mm, Focus: Motorized
Supported graphics resolutions1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2688 x 1520/512 x 288/768 x 432
Supported network protocolsIPv4; IPv6; UDP; TCP; HTTP; HTTPS; RTP/RTCP; IGMP V2/V3; ICMP; ICMPv6; RTSP; FTP; ARP; DHCP; APIPA (Auto-IP, link local address); NTP (SNTP); SNMP (V1, MIBII); SNMP (V3, MIBII); DNS; DNSv6; DDNS (DynDNS.org, selfHOST.de, no-ip.com); SMTP; iSCSI; UPnP (SSD
Supported video modes1080p/720p
Surge protection voltage1
Sustainability complianceYes
Time stamp overlayYes
Total megapixels4
TypeIP security camera
USB portYes
Video compression formatsH.264/H.265/HEVC/M-JPEG
Video streamingYes
Web browserYes
Weight2950
White balanceManual/Sodium lamp
Wide Dynamic Range (WDR)Yes
Width325
Zoom capabilityYes
Specs
Category CodeFNC
Description

The NBE-7703-ALX is an extremely robust bullet camera for mission-critical applications. The ruggedized and stable design has exceptional corrosion resistance for use in any outdoor application. Using 1/1.8" sensors with 4MP resolution, the NBE-7703-ALX provides the perfect balance between high resolution and extreme low light sensitivity. Starlight X and HDR X technology combined with powerful intelligent IR illumination ensure highly detailed images even in the most challenging situations. The cameras have a powerful, embedded processor with dedicated hardware to support advanced machine learning and deep neural network-based Video Analytics. Built-in Intelligent Video Analytics Pro (IVA Pro) enriches full situational awareness and triggers relevant alerts. With the combination of the robust housing, exceptional image quality, and the powerful video analytics, the NBE-7703-ALX is the ideal choice for the most demanding outdoor applications, including traffic monitoring, critical infrastructure, and perimeter security.

  • Starlight X technology for next level low-light performance with maximum detail
  • HDR X - High Dynamic Range to see every detail in both bright and dark areas of the scene without HDR motion blur and artefacts
  • IVA Pro brings highly reliable deep-learning based detection of persons and vehicles to scenes ranging from sterile zones to crowded and congested
  • Powerful long range (850nm) intelligent IR illumination up to 80 m (262 ft), optional invisible IR (940nm) or white light
  • Extremely robust and stable design with exceptional corrosion resistance for any outdoor application including traffic monitoring, critical infrastructure and perimeter security

NameNET CAMERA 4MP IP BULLET/NBE-7703-ALX BOSCH
PictureUrlhttps://static.elko.cloud/ProductImages/ae33815a-311b-4d65-8894-02b43ff424e0.Jpeg
Power consumption50
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/ae33815a-311b-4d65-8894-02b43ff424e0.Jpeg
Unit Calculated Volume0.03619
Unit Calculated Weight4
Units per Shipping Box1
Vendor Homepagehttps://commerce.boschsecurity.com/xf/en/DINION-7100i-IR/p/F.01U.390.688/
