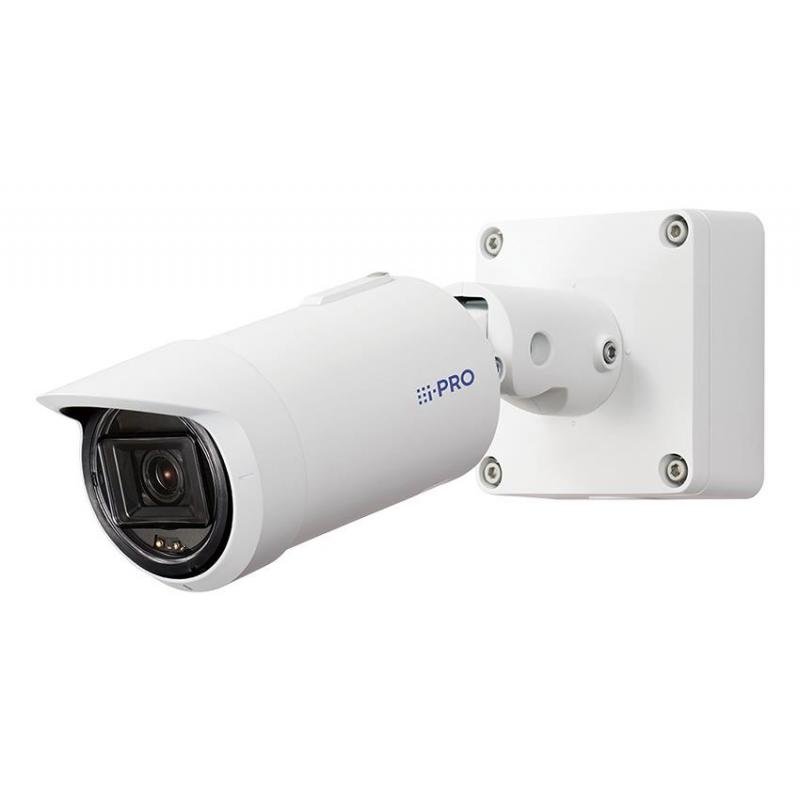

NET CAMERA 5MP BULLET AI OUTD./VANDAL WV-S15500-V3LN I-PRO

NET CAMERA 5MP BULLET AI OUTD./VANDAL WV-S15500-V3LN I-PRO
NET CAMERA 5MP BULLET AI OUTD./VANDAL WV-S15500-V3LN I-PRO
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 3072 x 1728
  • Total megapixels: 5
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
76,575ден.
  • Достапност:
  • Бренд: I-PRO
  • Шифра: 444632
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: i-PRO WV-S15500-V3LN. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Bullet. Minimum illumination: 0.04 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 34 - 106°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 9.3x, Focal length range: 2.9 - 9 mm, Focus: Motorized
  • Vendor Homepage: https://i-pro.com/products_and_solutions/en/surveillance/products/wv-s15500-v3ln
  • Name: NET CAMERA 5MP BULLET AI OUTD./VANDAL WV-S15500-V3LN I-PRO
  • Category Code: FNC
  • Form factor: Bullet
  • Mounting type: Ceiling/wall
  • Product colour: Black/White
  • Housing material: Aluminium/Polycarbonate (PC)/Resin
  • Protection features: Vandal proof
  • International Protection (IP) code: IP66
  • IK code: IK10
  • Fog proof: Yes
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Indoor & outdoor
  • Alarm input/output: Yes
  • Dynamic range: 132
  • Languages support: English/French/German/Italian/Japanese/Portuguese/Russian/Spanish
  • Number of languages: 9
  • Certification: UL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1, FCC (Part15 ClassA), ICES-003 ClassA, EN55032 ClassA, EN55035
  • Minimum illumination: 0.04
  • Angle of rotation: 360
  • Lens viewing angle, horizontal: 34 - 106
  • Lens viewing angle, vertical: 19 - 77
  • Tilt angle range: -100 - 100
  • White balance: ATW/AWC
  • Camera shutter speed: 1/30 - 1/10000
  • Number of Privacy masking areas: 8
  • Number of sensors: 1
  • Optical sensor size: 1/2.8
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Optical zoom: 9.3
  • Number of lenses: 1
  • Focal length range: 2.9 - 9
  • Auto focus: Yes
  • Focus: Motorized
  • Maximum aperture number: 2.5
  • Minimum aperture number: 1.3
  • Closest focusing distance: 0.3
  • Detect distance (tele): 201
  • Detect distance (wide): 46.3
  • Identify distance (tele): 20.1
  • Identify distance (wide): 4.6
  • Observe distance (tele): 80.4
  • Observe distance (wide): 18.5
  • Recognize distance (tele): 40.2
  • Recognize distance (wide): 9.3
  • Night vision: Yes
  • Night vision distance: 55
  • Maximum resolution: 3072 x 1728
  • Total megapixels: 5
  • Video formats supported: H.264/H.265
  • Supported graphics resolutions: 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2560 x 1440/2560 x 1920/320 x 180/320 x 240/400 x 300/640 x 360/800 x 600 (SVGA)
  • Frame rate: 30
  • Video intelligence analytic: Yes
  • Analog signal format system: NTSC/PAL
  • Noise reduction: Yes
  • Back Light Compensation (BLC): Yes
  • Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
  • Highlight Compensation (HLC): Yes
  • Text caption overlay: Yes
  • Audio formats supported: AAC-LC/G.711/G.726
  • Audio detection: Yes
  • Bit rate range: 16 - 128
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet
  • Networking standards: IEEE 802.3af
  • Supported network protocols: IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, SFTP, MQTT, LLDP IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPn
  • Number of users: 14
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Maximum memory card size: 512
  • Ethernet LAN (RJ-45) ports: 1
  • Microphone in: Yes
  • Alert notification type: E-mail
  • Intelligent Video Surveillance (IVS) system features: Face detection/Scene change/Vehicle detection
  • Privacy protection: Yes
  • Video motion detection: Yes
  • Power source type: DC,PoE
  • AC input voltage: 12-48
  • Power consumption (typical): 12
  • Power consumption (Power over Ethernet (PoE)): 11.5
  • Operating temperature (T-T): -40 - 60
  • Operating relative humidity (H-H): 10 - 100
  • Width: 133
  • Depth: 383
  • Height: 133
  • Weight: 2400
  • Number of cameras: 1
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.0153
  • Unit Calculated Weight: 3
Specifications
AC input voltage12-48
Alarm input/outputYes
Alert notification typeE-mail
Analog signal format systemNTSC/PAL
Angle of rotation360
Audio detectionYes
Audio formats supportedAAC-LC/G.711/G.726
Auto focusYes
Back Light Compensation (BLC)Yes
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate range16 - 128
Camera shutter speed1/30 - 1/10000
Card reader integratedYes
CertificationUL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1, FCC (Part15 ClassA), ICES-003 ClassA, EN55032 ClassA, EN55035
Closest focusing distance0.3
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Connectivity technologyWired
Depth383
Detect distance (tele)201
Detect distance (wide)46.3
Dynamic range132
Ethernet interface typeFast Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Focal length range2.9 - 9
FocusMotorized
Fog proofYes
Form factorBullet
Frame rate30
Height133
Highlight Compensation (HLC)Yes
Housing materialAluminium/Polycarbonate (PC)/Resin
Identify distance (tele)20.1
Identify distance (wide)4.6
IK codeIK10
Intelligent Video Surveillance (IVS) system featuresFace detection/Scene change/Vehicle detection
International Protection (IP) codeIP66
Languages supportEnglish/French/German/Italian/Japanese/Portuguese/Russian/Spanish
Lens viewing angle, horizontal34 - 106
Lens viewing angle, vertical19 - 77
Maximum aperture number2.5
Maximum memory card size512
Maximum resolution3072 x 1728
Microphone inYes
Minimum aperture number1.3
Minimum illumination0.04
Mounting typeCeiling/wall
Networking standardsIEEE 802.3af
Night visionYes
Night vision distance55
Noise reductionYes
Number of cameras1
Number of languages9
Number of lenses1
Number of Privacy masking areas8
Number of sensors1
Number of users14
Observe distance (tele)80.4
Observe distance (wide)18.5
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-40 - 60
Optical sensor size1/2.8
Optical zoom9.3
Placement supportedIndoor & outdoor
Power consumption (Power over Ethernet (PoE))11.5
Power consumption (typical)12
Power source typeDC,PoE
Privacy protectionYes
Product colourBlack/White
Protection featuresVandal proof
Recognize distance (tele)40.2
Recognize distance (wide)9.3
Sensor typeCMOS
Summaryi-PRO WV-S15500-V3LN. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Bullet. Minimum illumination: 0.04 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 34 - 106°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 9.3x, Focal length range: 2.9 - 9 mm, Focus: Motorized
Supported graphics resolutions1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2560 x 1440/2560 x 1920/320 x 180/320 x 240/400 x 300/640 x 360/800 x 600 (SVGA)
Supported network protocolsIPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, SFTP, MQTT, LLDP IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPn
Text caption overlayYes
Tilt angle range-100 - 100
Total megapixels5
TypeIP security camera
Video formats supportedH.264/H.265
Video intelligence analyticYes
Video motion detectionYes
Weight2400
White balanceATW/AWC
Width133
Zoom capabilityYes
Specs
Category CodeFNC
Description

S-series High resolution Network camera with AI engine

The 5MP/6MP/4K varifocal lens model, a high-resolution network camera will be added to the lineup of the well-established new S series. Equipped with an AI processor, it can run up to three AI analytics applications (AI apps) simultaneously, which significantly improve the detection rate of people and vehicles and can be used in a wide range of surveillance scenes. It realizes high-quality and clearer images even in low-light and wide-range shooting scenes. With the released of total 34 models, including fixed focus, black body, smoke dome, and derivative models such as heavy salt damage resistant models, to support a wide variety of security monitoring applications.

Up to 3 AI apps can be operated at the same time from the wide variety.

Using AI processor which identifies object as people or vehicle, it will reduce false alarm compared to conventional model. As result, it can be used many industries.

High image quality / High compression

Our original smart coding technology compatible with H.264 and H.265 delivers high-resolution video at high image quality and low bit rate. Achieved useful images by combining with highly visible images by the intelligent auto (iA) function.

Easy setting and installation

- Easy Kitting Package enabling installers to configure cameras easily while keeping the unit in the box.
- The grommet on the outdoor model can reduce the time and effort required for installation.
- User-friendly GUI (setting while watching Live view, etc.) allows you to set comfortably.
- iCT tool allows you to set multiple cameras, apps, and recorders all at once, reducing the camera setting time.

High security standard

- Highest level of security. In addition to digital certificates issued by a third-party organization (GlobalSign), FIPS 140-2 Level 3 certified EdgeLock SE050F secure element (NXP Semiconductors) is embeded.


  • 5MP
  • Intelligent Auto (with AI Engine)
  • Super Dynamic 132dB
  • Color night vision (0.05 to 0.07 lx)
  • Smart Coding (with AI Engine)
  • ClearSight Coating
  • Built-in IR LED
  • IK10 Vandal Resistant
  • Built-in FIPS 140-2 Level 3 Certified Secure Element
  • NDAA Compliant
