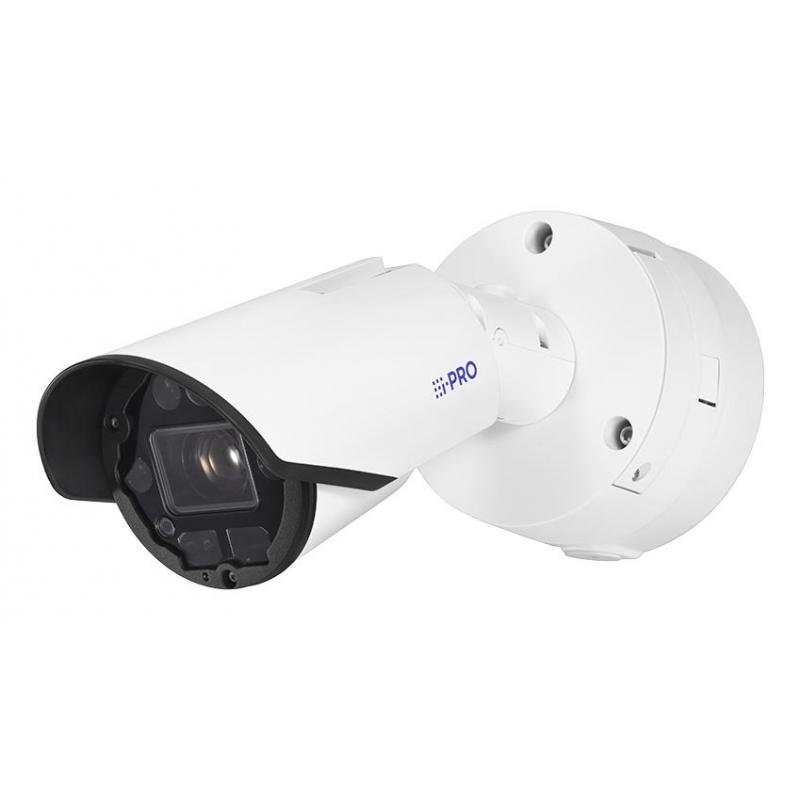

NET CAMERA 5MP BULLET AI OUTD./WV-X15501-Z3LN I-PRO

NET CAMERA 5MP BULLET AI OUTD./WV-X15501-Z3LN I-PRO
NET CAMERA 5MP BULLET AI OUTD./WV-X15501-Z3LN I-PRO
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 3072 x 2304
  • Total megapixels: 5
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
149,311ден.
  • Достапност:
  • Бренд: I-PRO
  • Шифра: 453890
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: i-PRO 5MP AI Outdoor IR Bullet Camera (30x zoom). Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Minimum illumination: 0.0031 lx, Lens viewing angle, horizontal: 58°, Lens viewing angle, vertical: 34°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 30x, Digital zoom: 480x, Focal length range: 4.5 - 135 mm
  • Vendor Homepage: https://i-pro.com/products_and_solutions/eu-en/surveillance/products/wv-x15501-z3ln
  • Name: NET CAMERA 5MP BULLET AI OUTD./WV-X15501-Z3LN I-PRO
  • Category Code: FNC
  • Form factor: Bullet
  • Mounting type: Ceiling/wall
  • Product colour: White
  • Housing material: Aluminium/Polycarbonate (PC)
  • Protection features: Corrosion resistant/Dust resistant/Shock resistant/Water resistant/Wind resistant
  • International Protection (IP) code: IP66, IP67
  • IK code: IK10
  • Fog proof: Yes
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Outdoor
  • PTZ modes: Preset sequence
  • Preset points: Yes
  • Alarm input/output: Yes
  • Dynamic range: 132
  • Languages support: English/French/German/Italian/Japanese/Portuguese/Russian/Simplified Chinese/Spanish
  • Camera pan control: Yes
  • Camera tilt control: Yes
  • Minimum illumination: 0.0031
  • Lens viewing angle, horizontal: 58
  • Lens viewing angle, vertical: 34
  • Tilt angle range: 0 - 100
  • Pan range: -180 - 180
  • White balance: ATW/AWC
  • Camera shutter speed: 1/4000 - 16/30
  • Number of Privacy masking areas: 8
  • Optical sensor size: 1/2.8
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Optical zoom: 30
  • Digital zoom: 480
  • Focal length range: 4.5 - 135
  • Focus: Motorized
  • Maximum aperture number: 1.8
  • Detect distance (tele): 2550.6
  • Detect distance (wide): 92.4
  • Identify distance (tele): 255.1
  • Identify distance (wide): 9.2
  • Normal focusing range: 3
  • Observe distance (tele): 1020.2
  • Observe distance (wide): 36.9
  • Recognize distance (tele): 510.1
  • Recognize distance (wide): 18.5
  • Night vision: Yes
  • Night vision distance: 180
  • Maximum resolution: 3072 x 2304
  • Total megapixels: 5
  • Video formats supported: H.264/H.265/M-JPEG
  • Supported graphics resolutions: 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/2560 x 1440/2560 x 1920/3072 x 1728/3072 x 2304/320 x 180/320 x 240/640 x 360/640 x 480 (VGA)
  • Video recording: Yes
  • Noise reduction: Yes
  • Back Light Compensation (BLC): Yes
  • Highlight Compensation (HLC): Yes
  • Image quality adjustment: Automatic gain control (AGC)
  • Image stabilizer: Yes
  • Audio formats supported: AAC-LC/ADPCM/G.711/G.726
  • Audio detection: Yes
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet
  • Networking standards: IEEE 802.1x/IEEE 802.3at/IEEE 802.3bt
  • Supported network protocols: IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, FTP, SFTP, LLDP, MQTT IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3,
  • Streaming method: Multicast/Unicast
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Maximum memory card size: 512
  • Interface: RJ-45
  • Alarm input channels: 3
  • Alert notification type: E-mail
  • Intelligent Video Surveillance (IVS) system features: Face detection/Human detection/Scene change/Vehicle detection
  • Privacy protection: Yes
  • Security algorithms: FIPS 140-2/HTTPS
  • Video motion detection: Yes
  • Web browser: Yes
  • Power source type: PoE+,DC,PoE++
  • Power consumption (typical): 15.6
  • Power consumption (Power over Ethernet (PoE)): 32.4
  • DC output voltage: 12
  • DC output current: 1.3
  • Waste Electrical and Electronic Equipment (WEEE) compliance: Yes
  • Operating temperature (T-T): -40 - 60
  • Storage temperature (T-T): -30 - 60
  • Operating relative humidity (H-H): 10 - 100
  • Storage relative humidity (H-H): 10 - 95
  • Mobile operating systems supported: Android/iOS/iOS 8.0/iPadOS
  • Depth: 456
  • Diameter: 168
  • Weight: 3600
  • Compliance certificates: CE/cUL/Federal Communications Commission (FCC)/National Defense Authorization Act (NDAA)/UKCA/UL
  • Number of cameras: 1
  • Audio input: 3.5mm
  • Audio output: 3.5mm
  • Browser supported: Microsoft Edge, Firefox, Google Chrome
  • Data transfer rate: 100
  • Number of simultaneous users: 14
  • Output impedance: 600
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.0153
  • Unit Calculated Weight: 4
Specifications
Alarm input channels3
Alarm input/outputYes
Alert notification typeE-mail
Audio detectionYes
Audio formats supportedAAC-LC/ADPCM/G.711/G.726
Audio input3.5mm
Audio output3.5mm
Back Light Compensation (BLC)Yes
Browser supportedMicrosoft Edge, Firefox, Google Chrome
Camera pan controlYes
Camera shutter speed1/4000 - 16/30
Camera tilt controlYes
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Compliance certificatesCE/cUL/Federal Communications Commission (FCC)/National Defense Authorization Act (NDAA)/UKCA/UL
Connectivity technologyWired
DC output current1.3
DC output voltage12
Depth456
Detect distance (tele)2550.6
Detect distance (wide)92.4
Diameter168
Digital zoom480
Dynamic range132
Ethernet interface typeFast Ethernet
Ethernet LANYes
Focal length range4.5 - 135
FocusMotorized
Fog proofYes
Form factorBullet
Highlight Compensation (HLC)Yes
Housing materialAluminium/Polycarbonate (PC)
Identify distance (tele)255.1
Identify distance (wide)9.2
IK codeIK10
Image quality adjustmentAutomatic gain control (AGC)
Image stabilizerYes
Intelligent Video Surveillance (IVS) system featuresFace detection/Human detection/Scene change/Vehicle detection
InterfaceRJ-45
International Protection (IP) codeIP66, IP67
Languages supportEnglish/French/German/Italian/Japanese/Portuguese/Russian/Simplified Chinese/Spanish
Lens viewing angle, horizontal58
Lens viewing angle, vertical34
Maximum aperture number1.8
Maximum memory card size512
Maximum resolution3072 x 2304
Minimum illumination0.0031
Mobile operating systems supportedAndroid/iOS/iOS 8.0/iPadOS
Mounting typeCeiling/wall
Networking standardsIEEE 802.1x/IEEE 802.3at/IEEE 802.3bt
Night visionYes
Night vision distance180
Noise reductionYes
Normal focusing range3
Number of cameras1
Number of Privacy masking areas8
Number of simultaneous users14
Observe distance (tele)1020.2
Observe distance (wide)36.9
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-40 - 60
Optical sensor size1/2.8
Optical zoom30
Output impedance600
Pan range-180 - 180
Placement supportedOutdoor
Power consumption (Power over Ethernet (PoE))32.4
Power consumption (typical)15.6
Power source typePoE+,DC,PoE++
Preset pointsYes
Privacy protectionYes
Product colourWhite
Protection featuresCorrosion resistant/Dust resistant/Shock resistant/Water resistant/Wind resistant
PTZ modesPreset sequence
Recognize distance (tele)510.1
Recognize distance (wide)18.5
Security algorithmsFIPS 140-2/HTTPS
Sensor typeCMOS
Storage relative humidity (H-H)10 - 95
Storage temperature (T-T)-30 - 60
Streaming methodMulticast/Unicast
Summaryi-PRO 5MP AI Outdoor IR Bullet Camera (30x zoom). Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Minimum illumination: 0.0031 lx, Lens viewing angle, horizontal: 58°, Lens viewing angle, vertical: 34°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 30x, Digital zoom: 480x, Focal length range: 4.5 - 135 mm
Supported graphics resolutions1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/2560 x 1440/2560 x 1920/3072 x 1728/3072 x 2304/320 x 180/320 x 240/640 x 360/640 x 480 (VGA)
Supported network protocolsIPv6: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, FTP, SFTP, LLDP, MQTT IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3,
Tilt angle range0 - 100
Total megapixels5
TypeIP security camera
Video formats supportedH.264/H.265/M-JPEG
Video motion detectionYes
Video recordingYes
Waste Electrical and Electronic Equipment (WEEE) complianceYes
Web browserYes
Weight3600
White balanceATW/AWC
Zoom capabilityYes
Specs
Category CodeFNC
Data transfer rate100
Description

  • 5MP Bullet camera
  • Up to 9 Edge AI analytic apps
  • 30x optical zoom
  • Built-in IR LED (180m/591ft)
  • IP66, IP67, IK10 certified
  • Built-in FIPS 140-2 Level 3 Certified SecureElement (EdgeLock® SE050F NXP® Semiconductors)
  • NDAA Compliant

NameNET CAMERA 5MP BULLET AI OUTD./WV-X15501-Z3LN I-PRO
PictureUrlhttps://static.elko.cloud/ProductImages/f8432058-d35f-4e0b-a084-ca6800ddb6a9.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/f8432058-d35f-4e0b-a084-ca6800ddb6a9.Jpeg
Unit Calculated Volume0.0153
Unit Calculated Weight4
Units per Shipping Box1
Vendor Homepagehttps://i-pro.com/products_and_solutions/eu-en/surveillance/products/wv-x15501-z3ln
