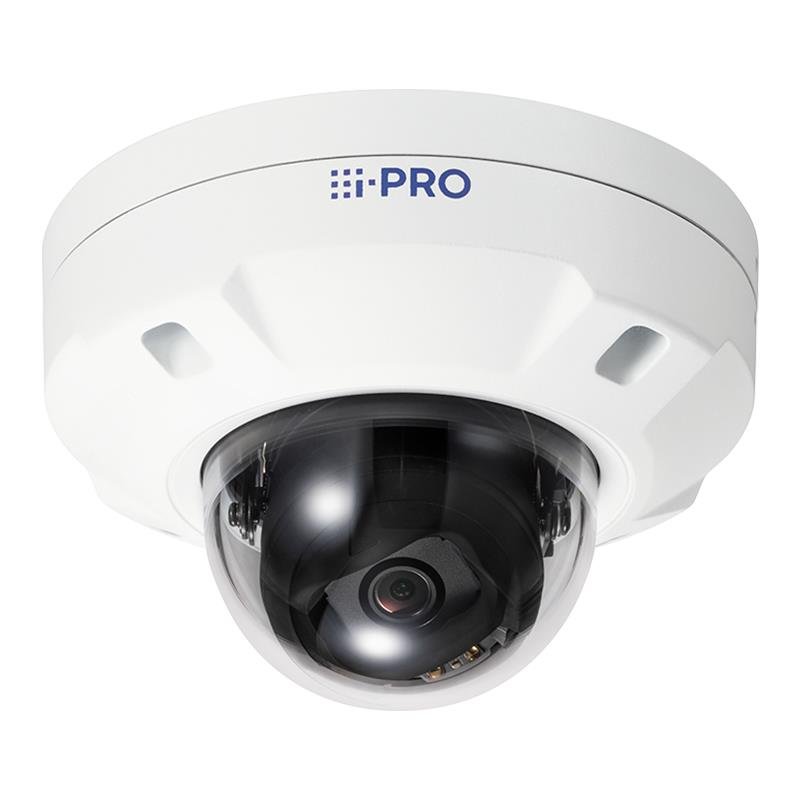

NET CAMERA 5MP DOME AI OUTDOOR/VANDAL WV-S25500-F6L I-PRO

NET CAMERA 5MP DOME AI OUTDOOR/VANDAL WV-S25500-F6L I-PRO
NET CAMERA 5MP DOME AI OUTDOOR/VANDAL WV-S25500-F6L I-PRO
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 3072 x 1728
  • Total megapixels: 5
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
48,100ден.
  • Достапност:
  • Бренд: I-PRO
  • Шифра: 453888
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: i-PRO WV-S25500-F6L. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Product colour: Black, White, Form factor: Dome, Housing material: Aluminium, Polycarbonate (PC), Stainless steel. Minimum illumination: 0.07 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 48°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"), Number of effective pixels (H x V): 5.12 x 3.84 pixels. Optical zoom: 3x, Detect distance: 138 m, Observe distance: 55.2 m
  • Vendor Homepage: https://i-pro.com/products_and_solutions/en/surveillance/products/wv-s25500-f6l
  • Name: NET CAMERA 5MP DOME AI OUTDOOR/VANDAL WV-S25500-F6L I-PRO
  • Category Code: FNC
  • Form factor: Dome
  • Product colour: Black/White
  • Housing material: Aluminium/Polycarbonate (PC)/Stainless steel
  • Protection features: Vandal proof
  • International Protection (IP) code: IP66
  • IK code: IK10
  • Fog proof: Yes
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Outdoor
  • Alarm input/output: Yes
  • Dynamic range: 132
  • Languages support: English/French/German/Italian/Japanese/Portuguese/Russian/Spanish
  • Number of languages: 9
  • Certification: UL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1, FCC (Part15 ClassA), ICES-003 ClassA, EN55032 ClassA, EN55035
  • Camera tilt control: Yes
  • Minimum illumination: 0.07
  • Angle of rotation: 360
  • Lens viewing angle, horizontal: 48
  • Lens viewing angle, vertical: 36
  • Tilt angle range: -30 - 85
  • White balance: ATW/AWC
  • Camera shutter speed: 1/30 - 1/10000
  • Number of Privacy masking areas: 8
  • Number of sensors: 1
  • Optical sensor size: 1/2.8
  • Number of effective pixels (H x V): 5.12 x 3.84
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Optical zoom: 3
  • Number of lenses: 1
  • Detect distance: 138
  • Observe distance: 55.2
  • Recognize distance: 27.6
  • Identify distance: 13.8
  • Maximum aperture number: 1.6
  • Closest focusing distance: 4
  • Fixed focal length: 6.1
  • Night vision: Yes
  • Night vision distance: 45
  • LED type: IR
  • Maximum resolution: 3072 x 1728
  • Total megapixels: 5
  • Video compression formats: H.264/H.265
  • Supported graphics resolutions: 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2560 x 1440/2560 x 1920/3072 x 1728/3072 x 2304/320 x 180/320 x 240/400 x 300/640 x 360/640 x 480 (VGA)/800 x 600 (SVGA)
  • Frame rate: 30
  • Video intelligence analytic: Yes
  • Analog signal format system: NTSC/PAL
  • Noise reduction: Yes
  • Gain control type: Auto
  • Back Light Compensation (BLC): Yes
  • Highlight Compensation (HLC): Yes
  • Image quality adjustment: Brightness
  • Privacy masking: Yes
  • Text caption overlay: Yes
  • Audio system full duplex: Yes
  • Audio formats supported: AAC-LC/G.711/G.726
  • Audio detection: Yes
  • Bit rate range: 16 - 128
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet
  • Networking standards: IEEE 802.1x
  • Supported network protocols: IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, SFTP, MQTT, LLDP IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPn
  • Number of users: 14
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSDHC/MicroSDXC
  • Maximum memory card size: 512
  • Composite video out: 1
  • Microphone in: Yes
  • Alert notification type: E-mail
  • Intelligent Video Surveillance (IVS) system features: Face detection/Human detection/Scene change/Vehicle detection
  • Video motion detection: Yes
  • Web browser: Yes
  • Power source type: DC,PoE
  • Power consumption (typical): 10.6
  • Power consumption (Power over Ethernet (PoE)): 10.6
  • DC output voltage: 12,48
  • Operating temperature (T-T): -40 - 60
  • Operating relative humidity (H-H): 10 - 100
  • Width: 154
  • Depth: 154
  • Height: 105
  • Weight: 1100
  • Number of cameras: 1
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.00608
  • Unit Calculated Weight: 1.5
Specifications
Alarm input/outputYes
Alert notification typeE-mail
Analog signal format systemNTSC/PAL
Angle of rotation360
Audio detectionYes
Audio formats supportedAAC-LC/G.711/G.726
Audio system full duplexYes
Back Light Compensation (BLC)Yes
Bit rate range16 - 128
Camera shutter speed1/30 - 1/10000
Camera tilt controlYes
Card reader integratedYes
CertificationUL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1, FCC (Part15 ClassA), ICES-003 ClassA, EN55032 ClassA, EN55035
Closest focusing distance4
Compatible memory cardsMicroSDHC/MicroSDXC
Composite video out1
Connectivity technologyWired
DC output voltage12,48
Depth154
Detect distance138
Dynamic range132
Ethernet interface typeFast Ethernet
Ethernet LANYes
Fixed focal length6.1
Fog proofYes
Form factorDome
Frame rate30
Gain control typeAuto
Height105
Highlight Compensation (HLC)Yes
Housing materialAluminium/Polycarbonate (PC)/Stainless steel
Identify distance13.8
IK codeIK10
Image quality adjustmentBrightness
Intelligent Video Surveillance (IVS) system featuresFace detection/Human detection/Scene change/Vehicle detection
International Protection (IP) codeIP66
Languages supportEnglish/French/German/Italian/Japanese/Portuguese/Russian/Spanish
LED typeIR
Lens viewing angle, horizontal48
Lens viewing angle, vertical36
Maximum aperture number1.6
Maximum memory card size512
Maximum resolution3072 x 1728
Microphone inYes
Minimum illumination0.07
Networking standardsIEEE 802.1x
Night visionYes
Night vision distance45
Noise reductionYes
Number of cameras1
Number of effective pixels (H x V)5.12 x 3.84
Number of languages9
Number of lenses1
Number of Privacy masking areas8
Number of sensors1
Number of users14
Observe distance55.2
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-40 - 60
Optical sensor size1/2.8
Optical zoom3
Placement supportedOutdoor
Power consumption (Power over Ethernet (PoE))10.6
Power consumption (typical)10.6
Power source typeDC,PoE
Privacy maskingYes
Product colourBlack/White
Protection featuresVandal proof
Recognize distance27.6
Sensor typeCMOS
Summaryi-PRO WV-S25500-F6L. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Product colour: Black, White, Form factor: Dome, Housing material: Aluminium, Polycarbonate (PC), Stainless steel. Minimum illumination: 0.07 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 48°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"), Number of effective pixels (H x V): 5.12 x 3.84 pixels. Optical zoom: 3x, Detect distance: 138 m, Observe distance: 55.2 m
Supported graphics resolutions1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2560 x 1440/2560 x 1920/3072 x 1728/3072 x 2304/320 x 180/320 x 240/400 x 300/640 x 360/640 x 480 (VGA)/800 x 600 (SVGA)
Supported network protocolsIPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, SFTP, MQTT, LLDP IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPn
Text caption overlayYes
Tilt angle range-30 - 85
Total megapixels5
TypeIP security camera
Video compression formatsH.264/H.265
Video intelligence analyticYes
Video motion detectionYes
Web browserYes
Weight1100
White balanceATW/AWC
Width154
Zoom capabilityYes
Specs
Category CodeFNC
Description

WV-S25500-F3L

Equipped with an AI processor, it can run up to three AI analytics applications (AI apps) simultaneously, which significantly improve the detection rate of people and vehicles and can be used in a wide range of surveillance scenes. It realizes high-quality and clearer images even in low-light and wide-range shooting scenes.

3 AI Apps operation at same time

Up to 3 AI apps can be operated at the same time from the wide variety. Using AI processor which identifies object as people or vehicle, it will reduce false alarm compared to conventional model. As result, it can be used many industries.

High image quality / High compression

Our original smart coding technology compatible with H.264 and H.265 delivers high-resolution video at high image quality and low bit rate. Achieved useful images by combining with highly visible images by the intelligent auto (iA) function.

Easy setting and installation

Easy Kitting Package enabling installers to configure cameras easily while keeping the unit in the box. The grommet on the outdoor model can reduce the time and effort required for installation. User-friendly GUI (setting while watching Live view, etc.) allows you to set comfortably. iCT tool allows you to set multiple cameras, apps, and recorders all at once, reducing the camera setting time.

High security standard

Highest level of security. In addition to digital certificates issued by a third-party organization (GlobalSign), FIPS 140-2 Level 3 certified EdgeLock SE050F secure element (NXP Semiconductors) is embeded.










  • 5MP
  • Intelligent Auto (with AI Engine)
  • Super Dynamic 132dB
  • Color night vision (0.08 to 0.11 lx)
  • Smart Coding (with AI Engine)
  • Built-in IR LED
  • 50J, IK10 Vandal Resistant
  • Built-in FIPS 140-2 Level 3 Certified Secure Element (EdgeLock SE050F NXP Semiconductors)
  • NDAA Compliant
