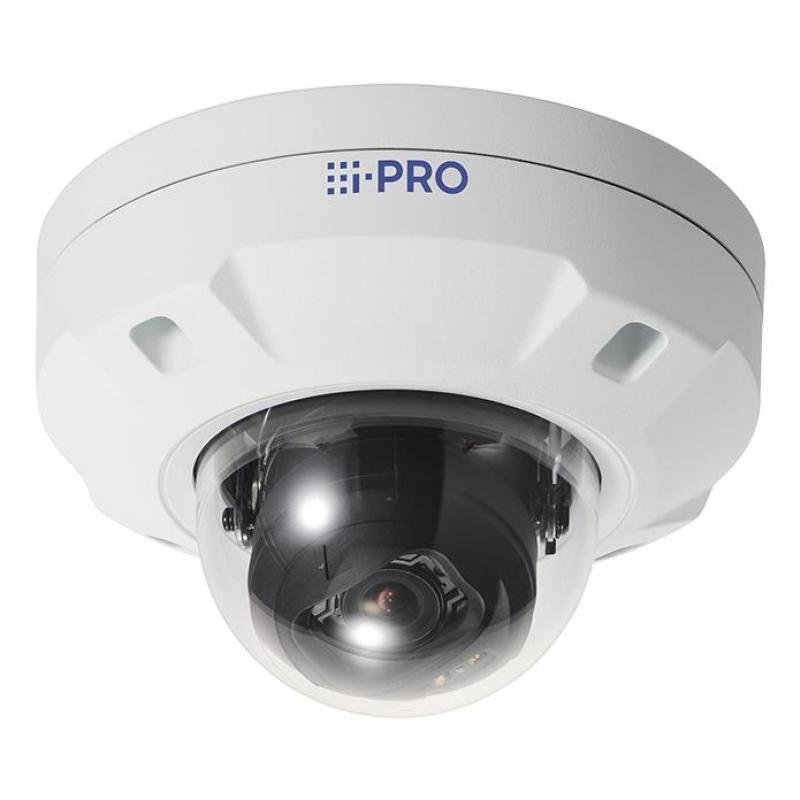

NET CAMERA 5MP DOME AI OUTDOOR/WV-X25500-V3LN I-PRO

Technical Specifications

• Summary: i-PRO WV-X25500-V3LN. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.03 lx, Tilt angle range: -30 - 85°, Pan range: -194 - 166°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 3.1x, Focal length range: 2.9 – 9, Normal focusing range: 0.3 m
• Vendor Homepage: https://i-pro.com/products_and_solutions/en/surveillance/products/wv-x25500-v3ln
• Name: NET CAMERA 5MP DOME AI OUTDOOR/WV-X25500-V3LN I-PRO
• Category Code: FNC
• Form factor: Dome
• Mounting type: Ceiling
• Product colour: Black/White
• Housing material: Aluminium/Polycarbonate (PC)/Stainless steel
• Protection features: Corrosion resistant
• International Protection (IP) code: IP66, IP67
• IK code: IK10
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Outdoor
• Infrared (IR) cut-off filter: Yes
• Alarm input/output: Yes
• Dynamic range: 132
• Languages support: English/French/German/Italian/Japanese/Portuguese/Russian/Spanish
• Number of languages: 9
• Certification: UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1 FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55035
• Minimum illumination: 0.03
• Tilt angle range: -30 - 85
• Pan range: -194 - 166
• White balance: ATW/AWC
• Camera shutter speed: 1/10000 - 16/30
• Optical sensor size: 1/2.8
• Sensor type: CMOS
• Zoom capability: Yes
• Optical zoom: 3.1
• Focal length range: 2.9 - 9
• Maximum aperture number: 2.5
• Minimum aperture number: 1.3
• Detect distance (tele): 207.4
• Detect distance (wide): 48.9
• Identify distance (tele): 20.7
• Identify distance (wide): 4.9
• Normal focusing range: 0.3
• Observe distance (tele): 83
• Observe distance (wide): 19.5
• Recognize distance (tele): 41.5
• Recognize distance (wide): 9.8
• Maximum resolution: 3072 x 1728
• Total megapixels: 5
• Video compression formats: H.264/H.265
• Frame rate: 60
• Noise reduction: Yes
• Back Light Compensation (BLC): Yes
• Bit rate control: Variable Bit Rate (VBR)
• Highlight Compensation (HLC): Yes
• Image quality adjustment: Automatic gain control (AGC)
• Image stabilizer: Yes
• Privacy masking: Yes
• Audio formats supported: AAC-LC/G.711/G.726
• Audio detection: Yes
• Ethernet LAN: Yes
• Supported network protocols: IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, MQTT, LLDP IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGM
• Number of users: 14
• Streaming method: Multicast/Unicast
• Card reader integrated: Yes
• Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
• Maximum memory card size: 512
• Ethernet LAN (RJ-45) ports: 1
• Microphone in: Yes
• Alert notification type: E-mail
• Security algorithms: FIPS 140-2/HTTPS
• Video motion detection: Yes
• Web browser: Yes
• Behavior analysis: Scene change detection
• Smartphone/tablet remote support: Yes
• Power source type: PoE
• Power consumption: 260
• Power consumption (typical): 14
• DC output voltage: 12,54
• DC output current: 1.2
• Operating temperature (T-T): -40 - 55
• Storage temperature (T-T): -30 - 55
• Operating relative humidity (H-H): 10 - 100
• Mobile operating systems supported: Android/iOS
• Width: 154
• Depth: 154
• Height: 105
• Weight: 1100
• Compliance certificates: cUL/Federal Communications Commission (FCC)/National Defense Authorization Act (NDAA)/UL
• Number of cameras: 1
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.00608
• Unit Calculated Weight: 1.5
